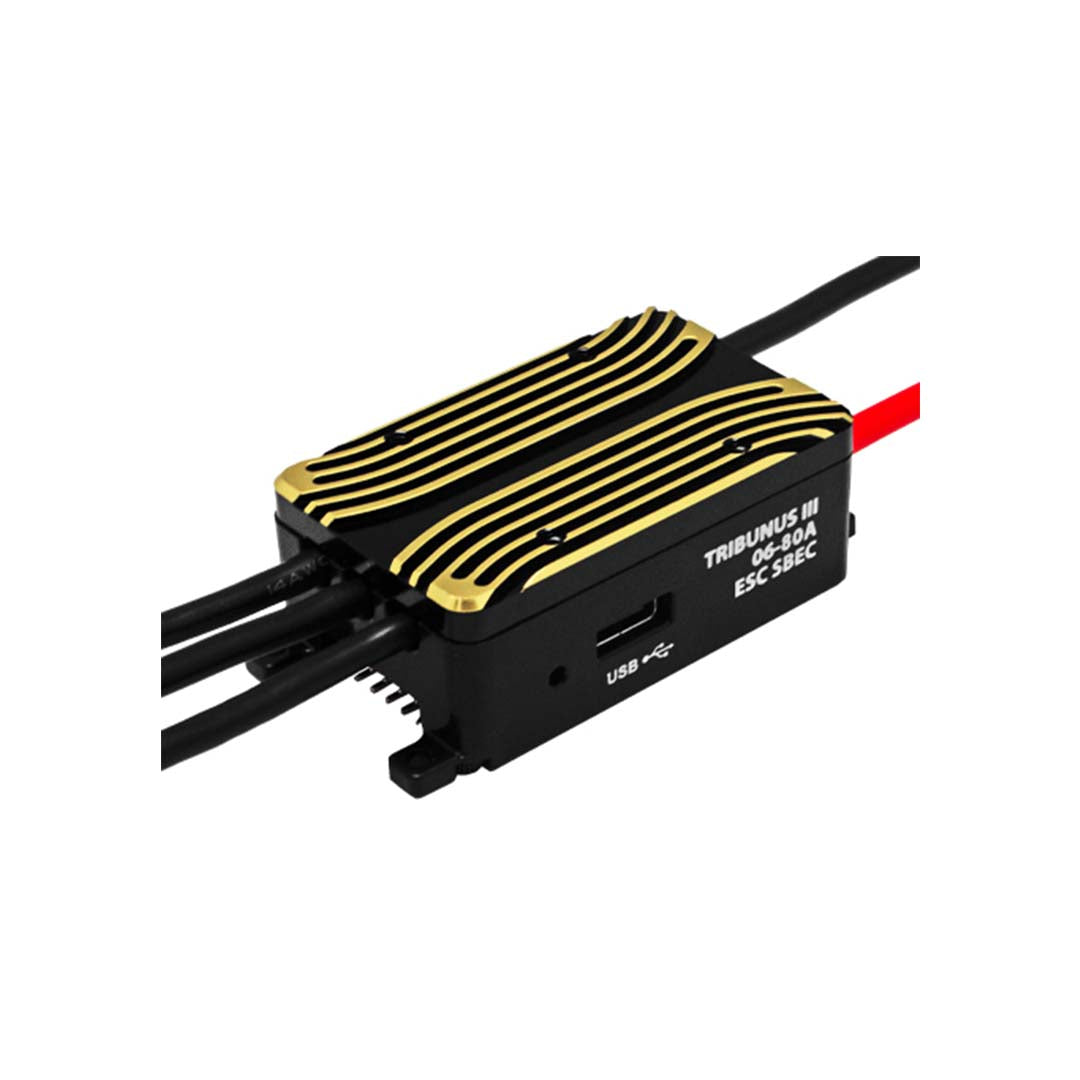

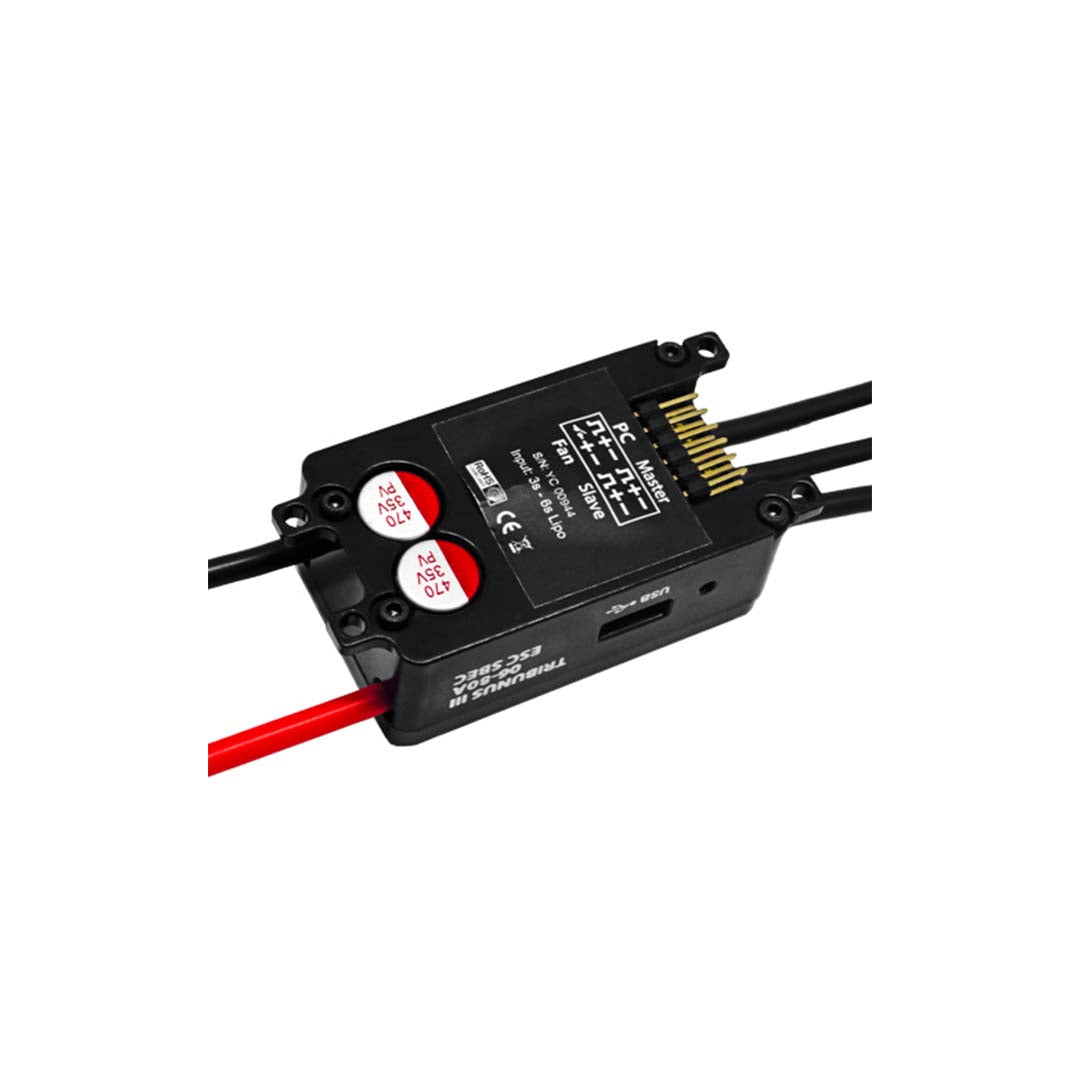

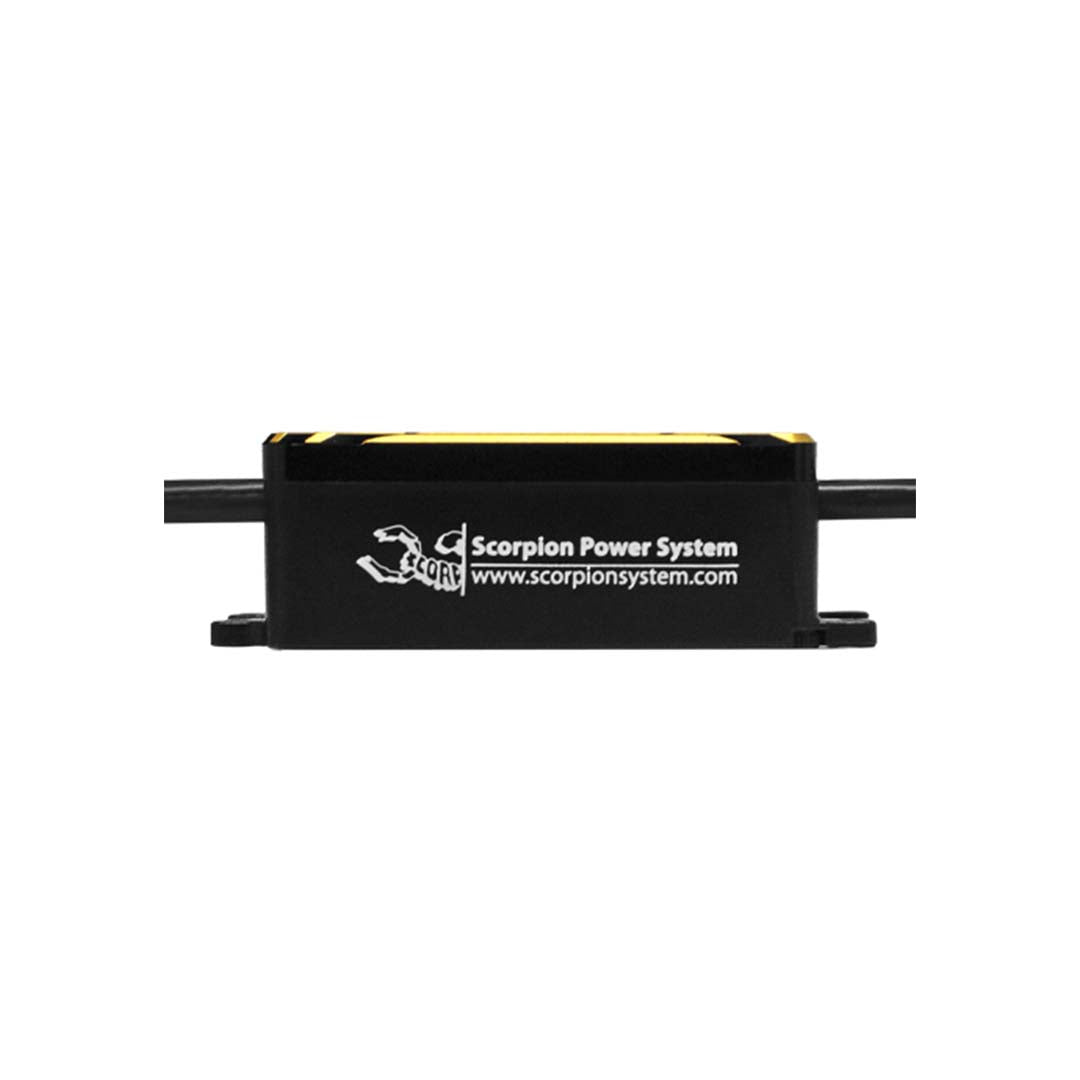

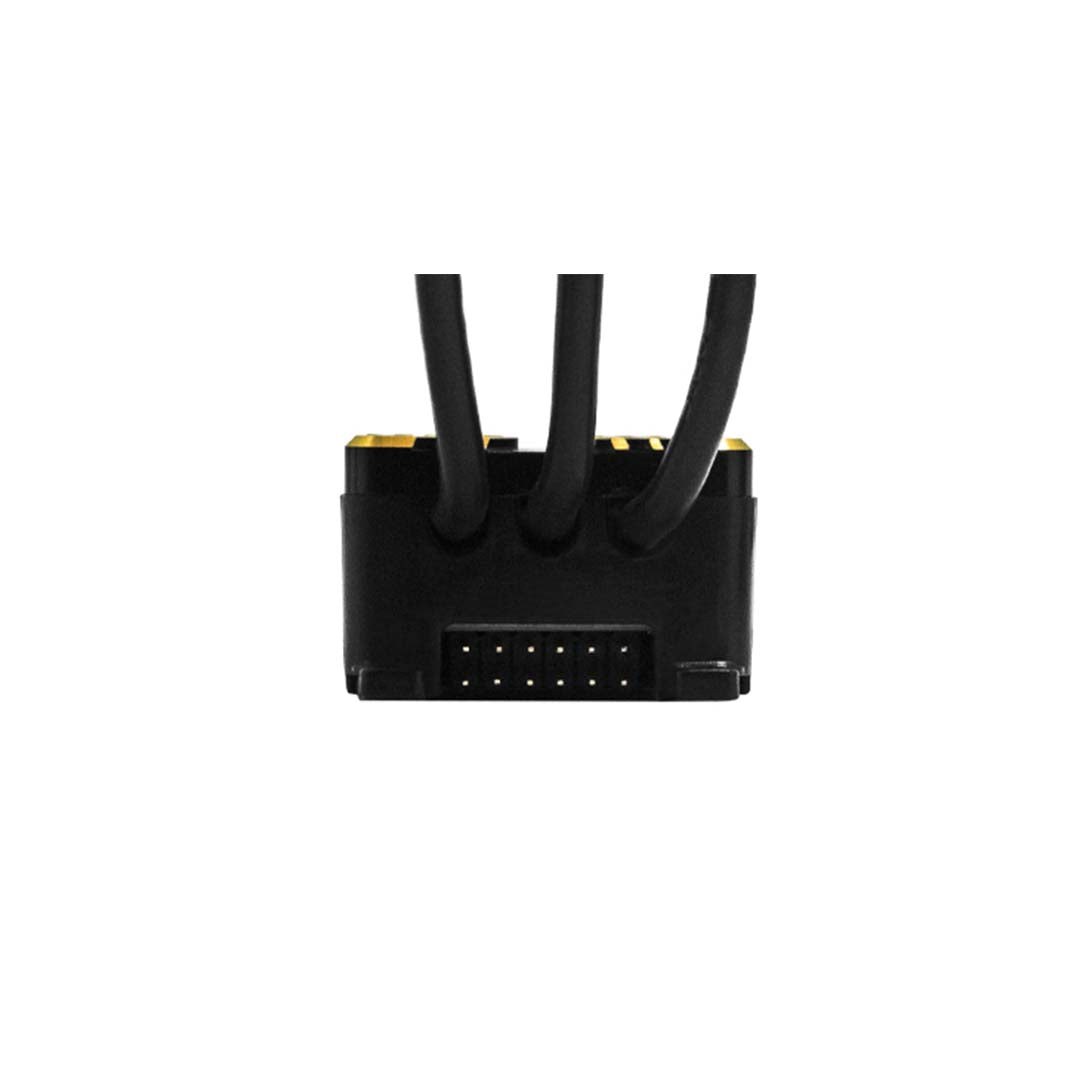

Scorpion Tribunus III 06-80A ESC SBEC
$129.99
$0.00( / )
Specifications Max Continuous Current 80 Amps Peak Current 110 Amps Operating Voltage Range 11-26.1 Volts BEC Output voltage: 5.1V to 12.1V adjustable Max Continuous BEC Output 8 Amps @ 8.1 V Peak BEC Output 12 Amps/1s @ 8.1 V On Resistance 0.45mohms * 2 ESC Body Size 32.0 x 52.2...
Specifications
| Max Continuous Current | 80 Amps |
| Peak Current | 110 Amps |
| Operating Voltage Range | 11-26.1 Volts |
| BEC Output voltage: | 5.1V to 12.1V adjustable |
| Max Continuous BEC Output | 8 Amps @ 8.1 V |
| Peak BEC Output | 12 Amps/1s @ 8.1 V |
| On Resistance | 0.45mohms * 2 |
| ESC Body Size | 32.0 x 52.2 x 20.3 mm (1.26 x 2.07 x 0.79 in) |
| Mounting Tab Dimensions | 16.0 (Battery Side) / 24.0mm (Phase side) x 58.0mm ( 0.63 / 0.94 x 2.28 in) / M2.5 Bolt |
| Weight (Without Connectors) | 70.0g ( 2.47oz) |
| Drive frequency | 8kHz - 32kHz |

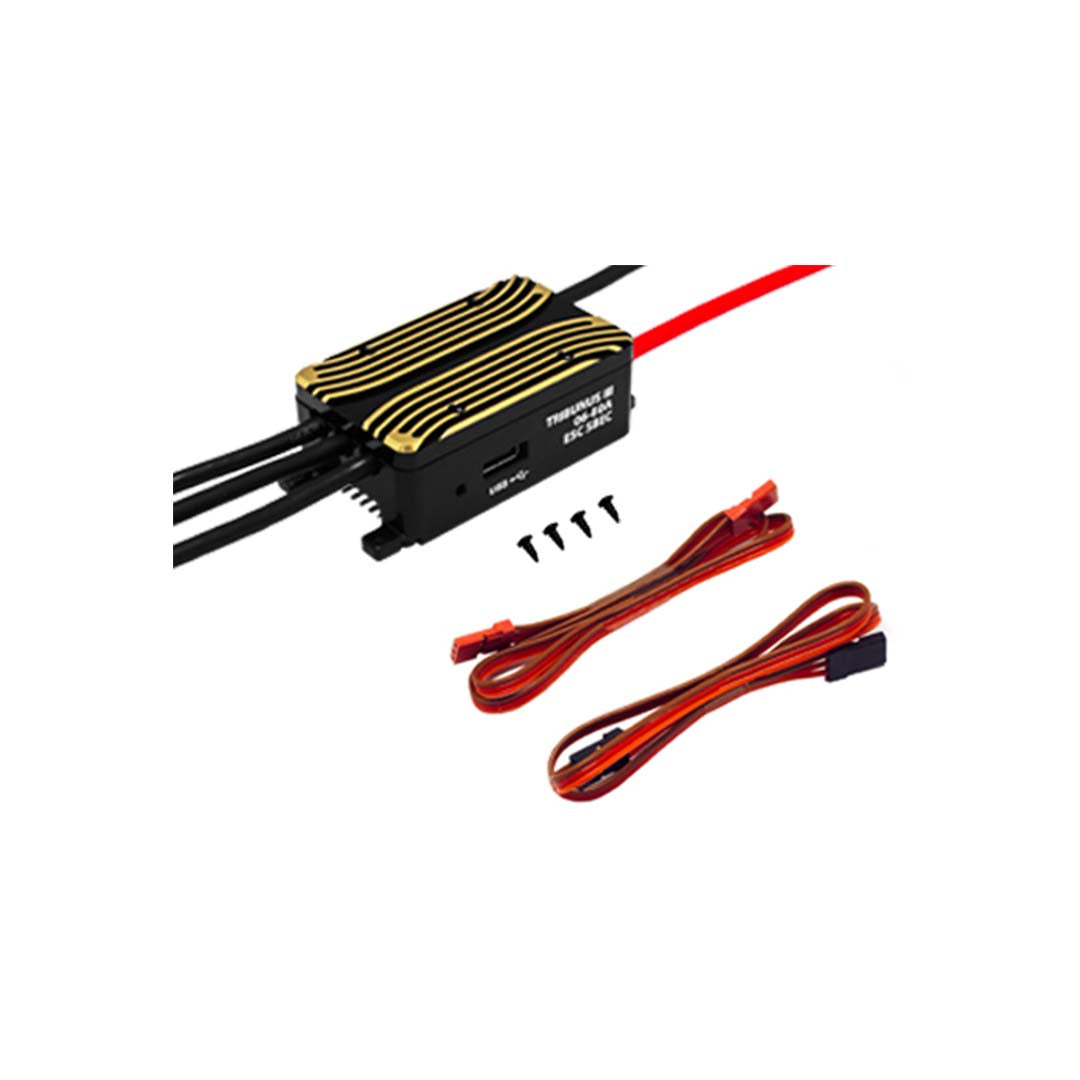

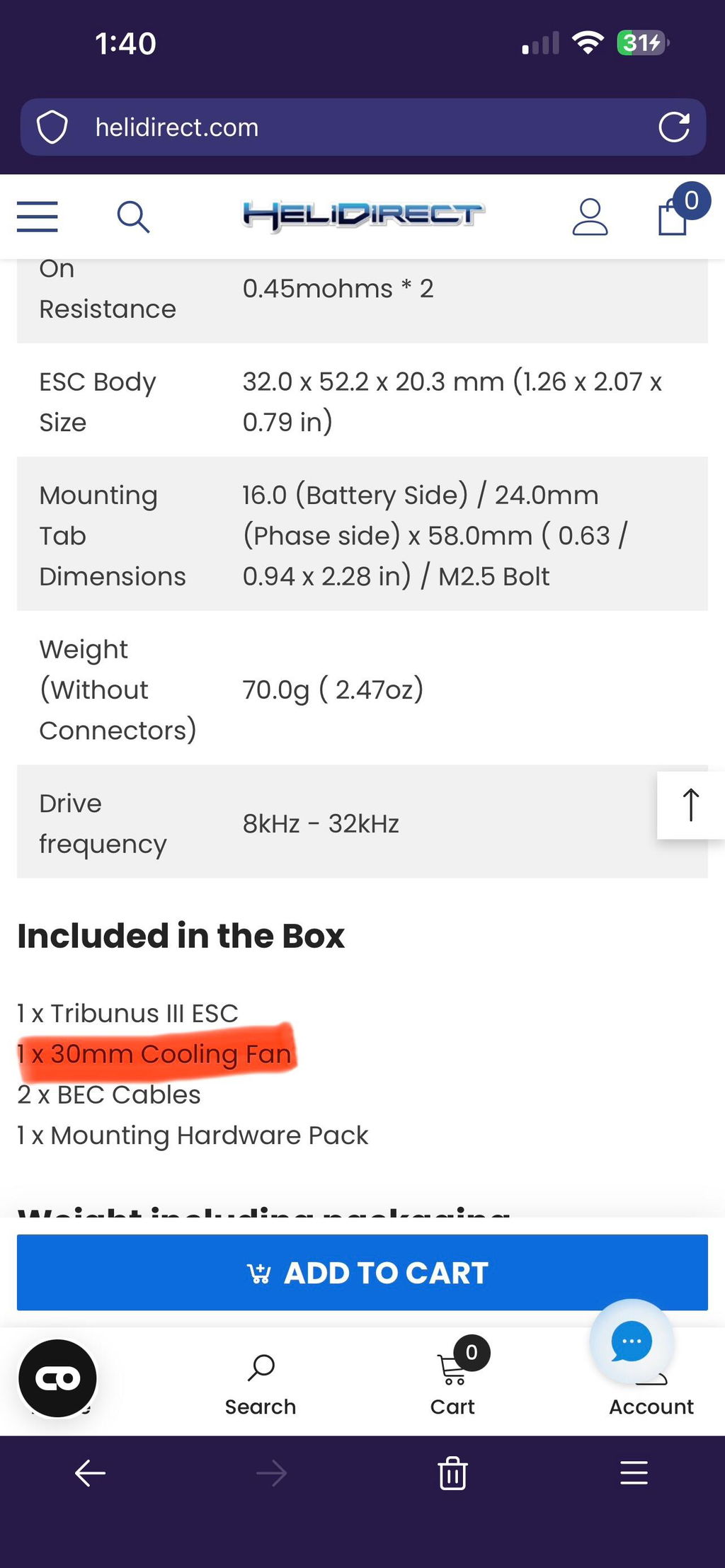

Included in the Box
1 x Tribunus III ESC
1 x 30mm Cooling Fan
2 x BEC Cables
1 x Mounting Hardware Pack
Weight including packaging
130g
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
III_06_80 |
| Weight: |
0.5 lb |
Product Spare Parts
Customer Reviews
Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
E

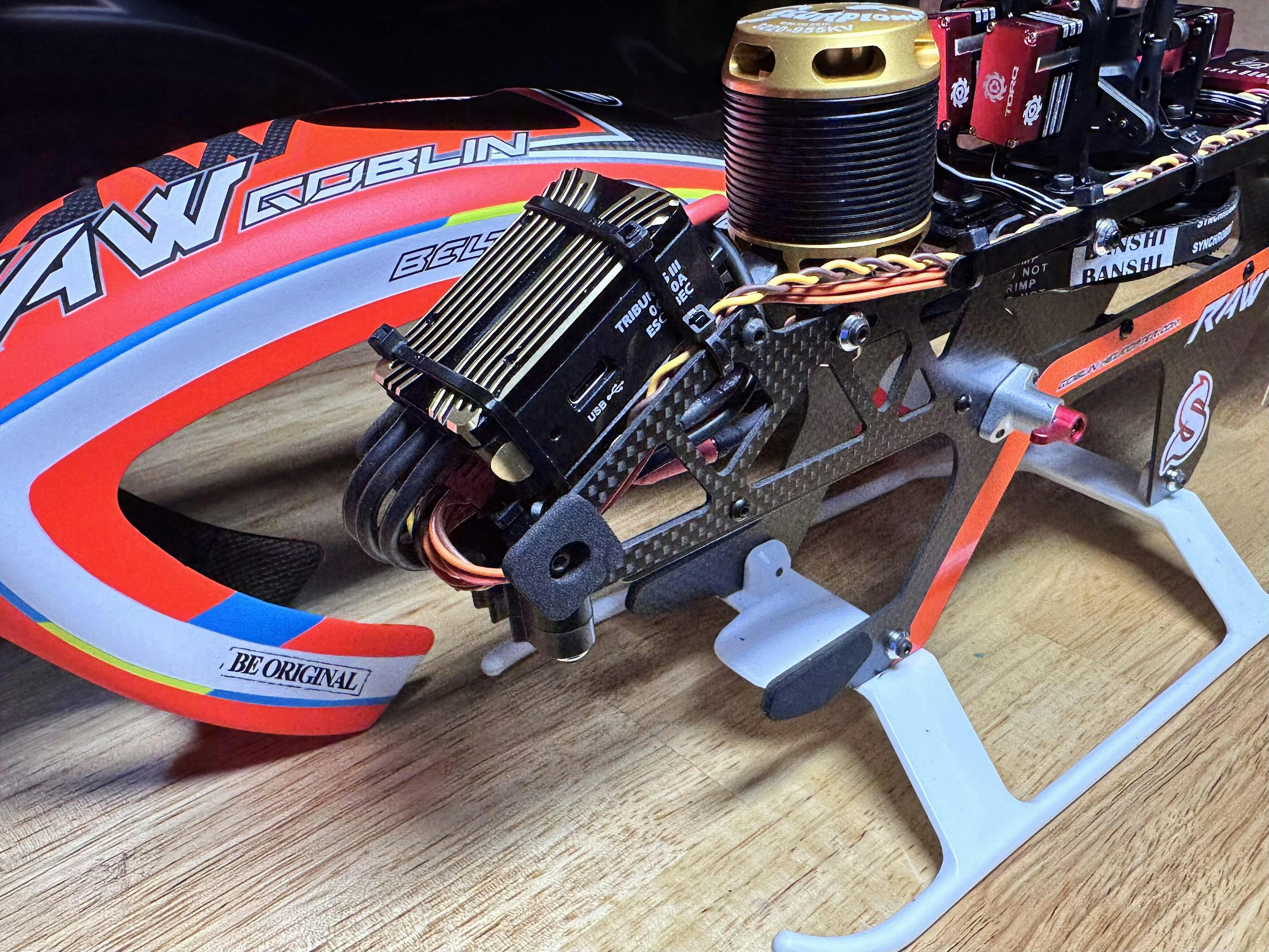

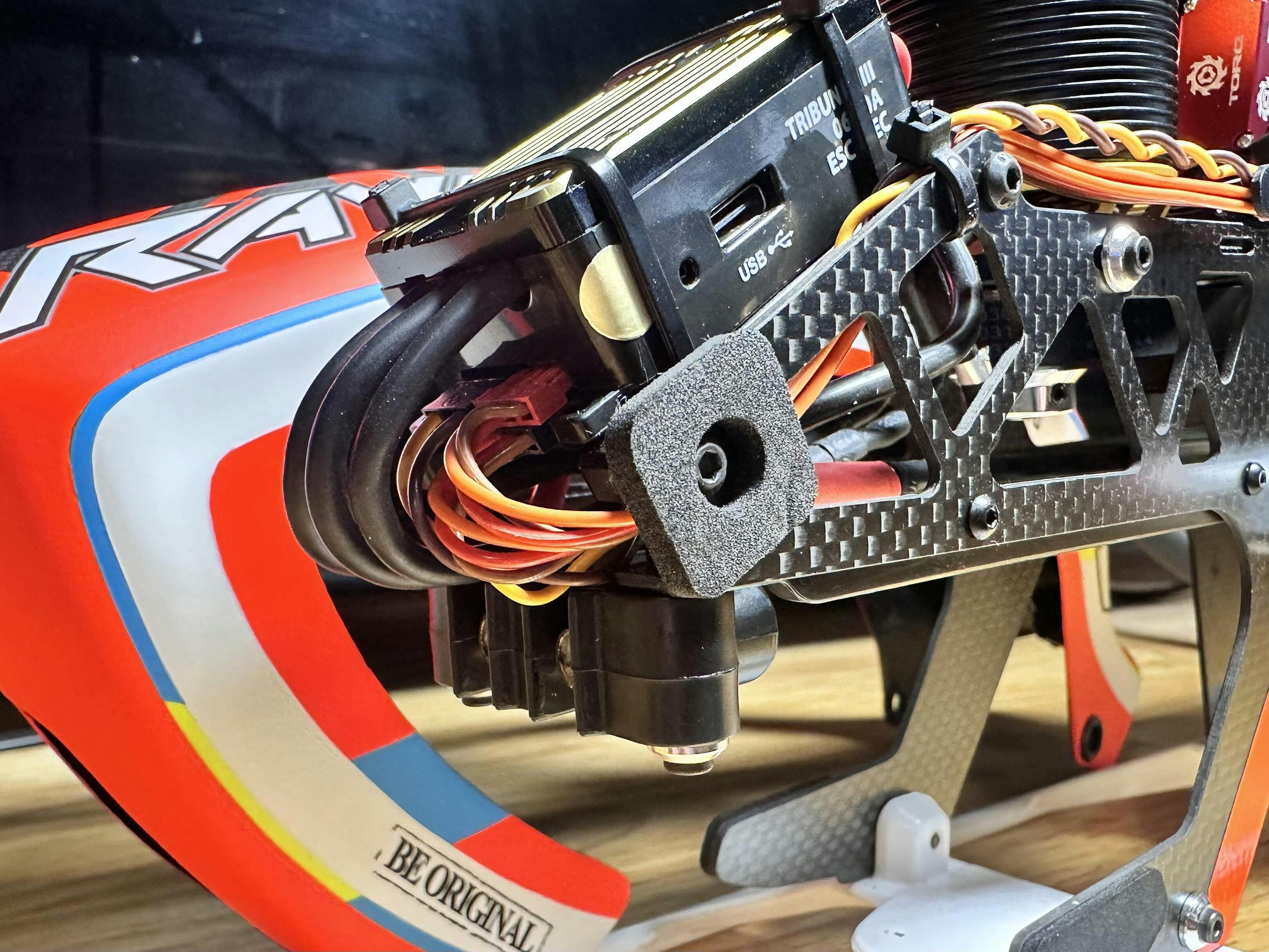

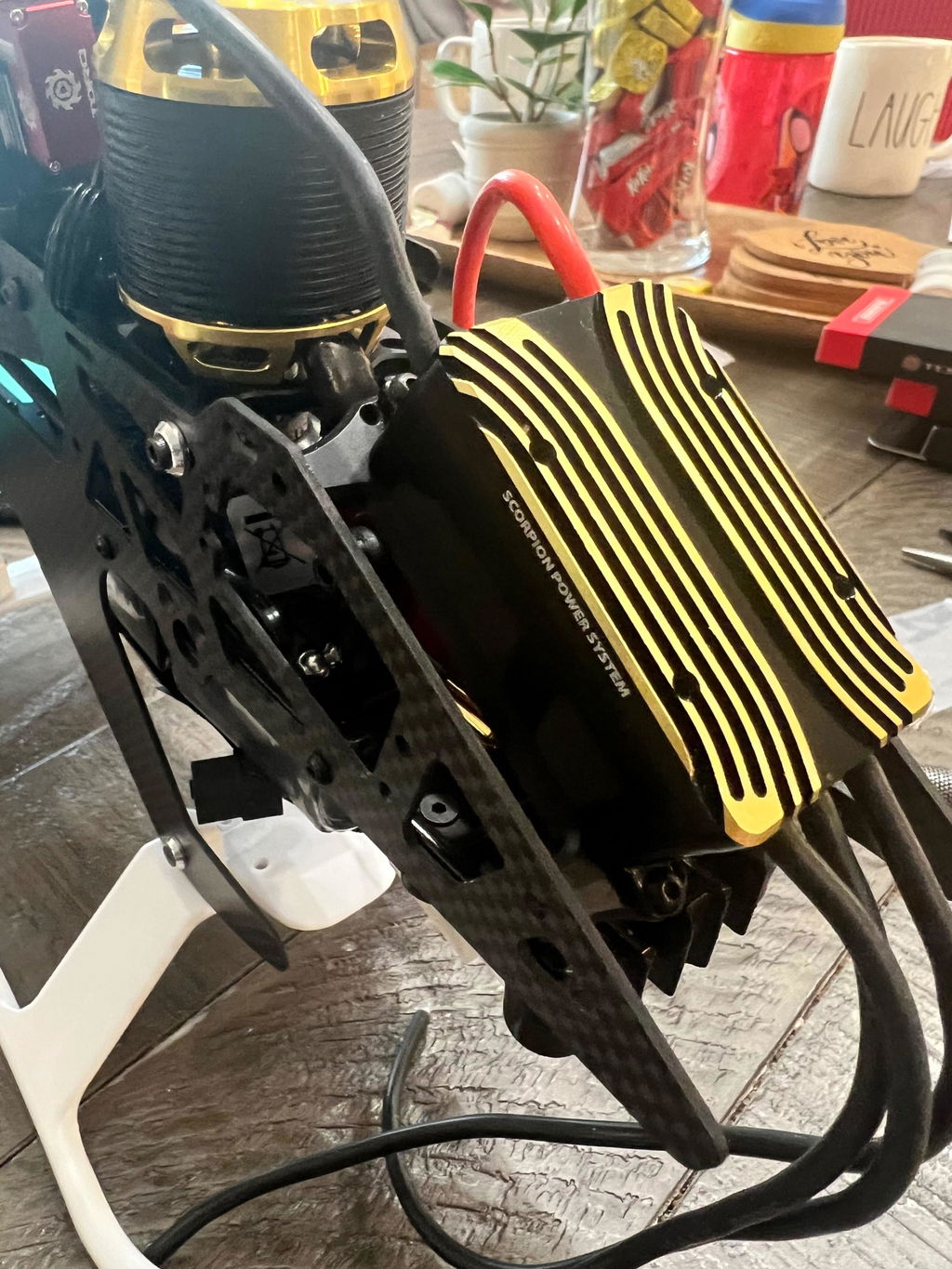

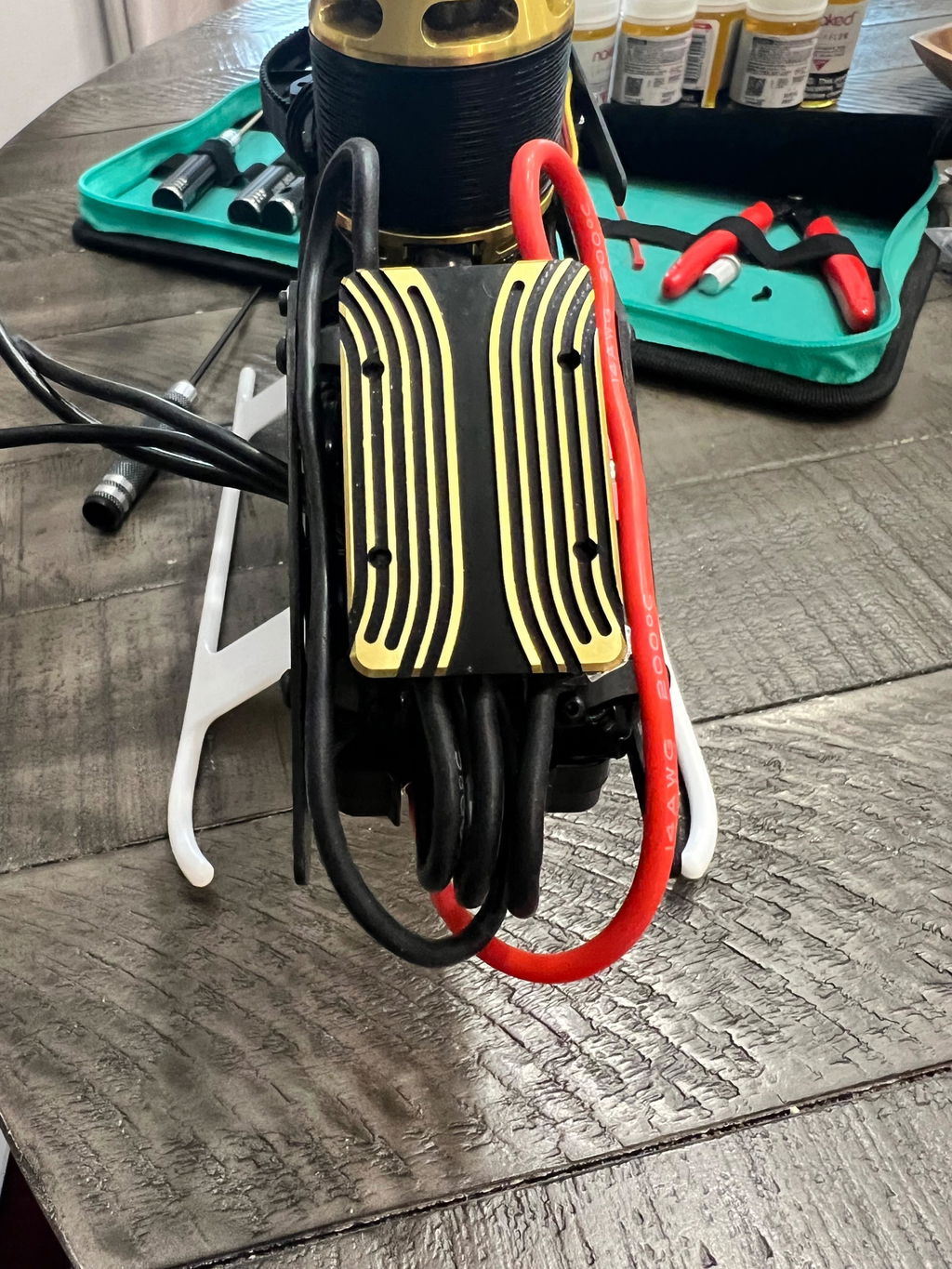

Put this on a Goblin 420c and so far it is working well. Comes down cool, plenty of power, nice robust BEC, excellent telemetry, and easy setup.
No feedback on the governor - using FBL
