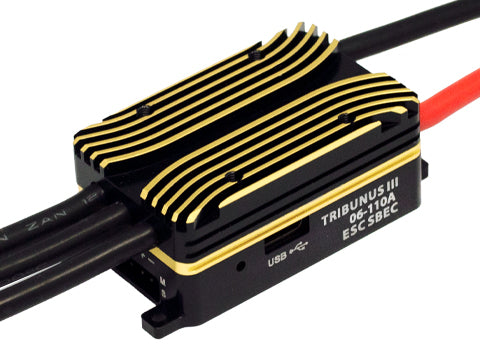

Scorpion Tribunus III 06-110A ESC SBEC
$189.99
$0.00( / )
Specifications Max Continuous Current 110 Amps Peak Current 150 Amps Operating Voltage Range 11-26.1 Volts BEC Output voltage: 5.1V to 12.1V adjustable Max Continuous BEC Output 10 Amps @ 8.1 V Peak BEC Output 20 Amps/1s @ 8.1 V On Resistance 0.45mohms * 2 ESC Body Size 32.0 x...
Specifications
| Max Continuous Current | 110 Amps |
| Peak Current | 150 Amps |
| Operating Voltage Range | 11-26.1 Volts |
| BEC Output voltage: | 5.1V to 12.1V adjustable |
| Max Continuous BEC Output | 10 Amps @ 8.1 V |
| Peak BEC Output | 20 Amps/1s @ 8.1 V |
| On Resistance | 0.45mohms * 2 |
| ESC Body Size | 32.0 x 52.5 x 23.1 mm (1.26 x 2.07 x 0.91 in) |
| Mounting Tab Dimensions | 16.0 (Battery Side) / 24.0mm (Phase side) x 58.0mm ( 0.63 / 0.94 x 2.28 in) / M2.5 Bolt |
| Weight (Without Connectors) | 105g ( 3.70oz) |
| Drive frequency | 8kHz - 32kHz |

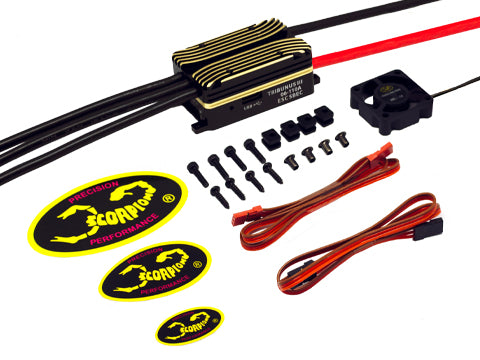

Included in the Box
1 x Tribunus III ESC

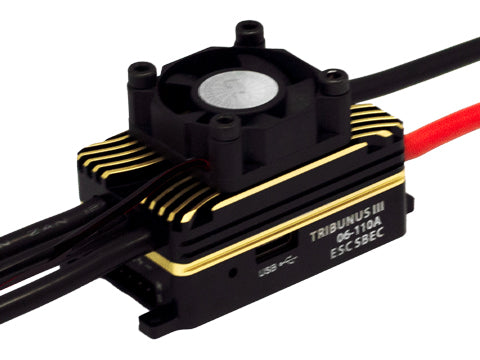

1 x 30mm Cooling Fan
2 x BEC Cables
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
III_06_110 |
| Weight: |
1.13 lb |
