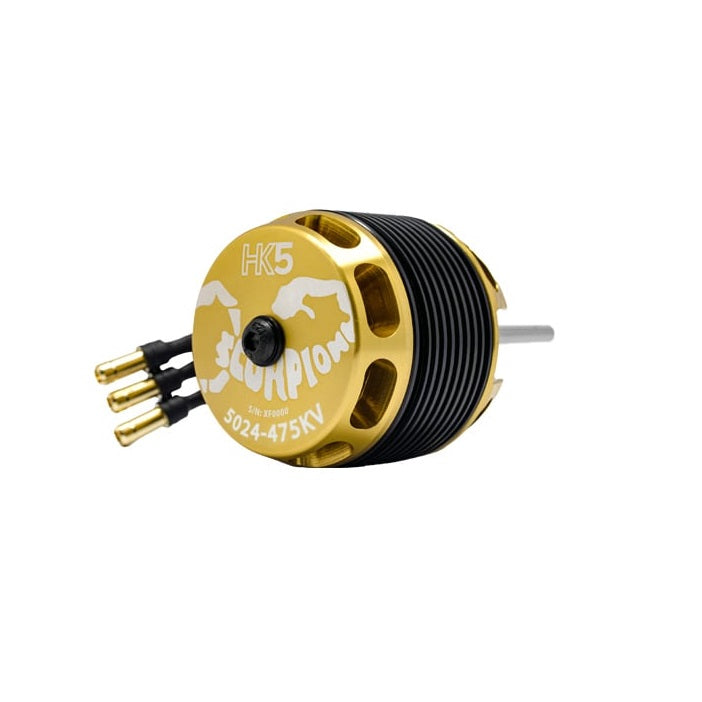

Scorpion HK5-5024-475kv (6 x 55mm shaft) Helicopter Motor
%20Helicopter%20Motor){kind=link}
Product Description
We introduce the fifth generation of Scorpion's renowned and award winning "HK - Series" motors. The Scorpion "HK5 - Series"
The HK5 Series lives up to and exceeds our standards of the most Powerful and Efficient motors, with market leading Torque per Amp capabilities. In addition, on the HK5 series we focused specifically on motor cooling and motor temperature. With an all new Internal Fan design, combined with our proven external centrifugal fan, we have nearly doubled the amount of airflow passing through the motor. The result is much improved cooling, and cooler operating temperatures.
The HK5-5024-475kv is designed primarily for 14s High Power 700 class helicopters, or 12 operation larger diameter / UAV helicopter application. With the larger Stator Diameter, it provides more torque and more power, for near equal weight as compared to the previous HKII-4530 motor.
Specifications
| Motor Kv | 475KV RPM/Volt |
| Weight | 598.0g Grams ( 21.09oz) |
| Motor Body Dimensions | 62.8mm x 61.40mm (2.47" x 2.42") |

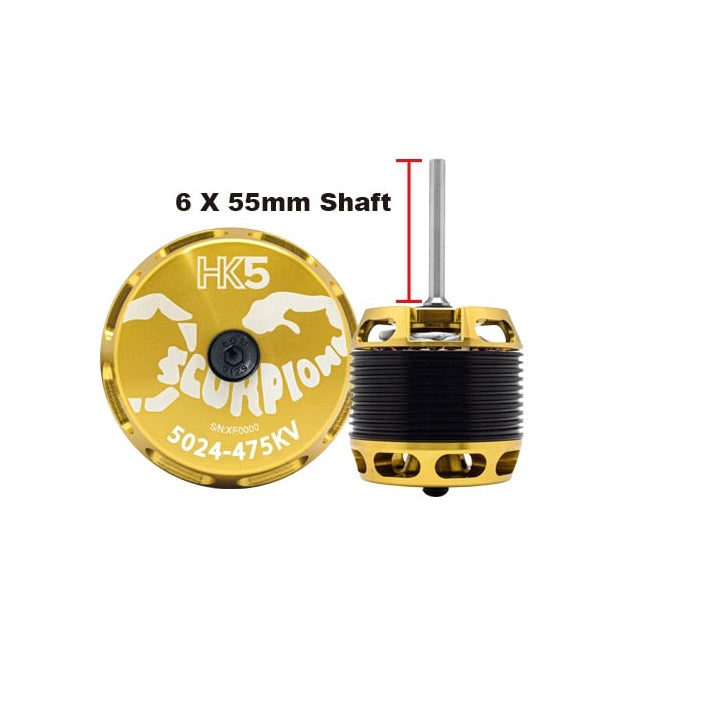

| External Shaft Dimensions | 5.98mm x 55mm (0.235" x 2.16") |
| Continuous Current | 120 Amps |
| Continuous Power | 6216 Watts |
| Peak Current | 230A (2 seconds) |
| Peak Power | 12,000 Watts (2 seconds) |
| Max Lipo Cell* | 14s |
| Stator Diameter | 50 mm (1.97 in) |
| Stator Thickness | 24 mm (0.94 in) |
| No. of Stator Arms | 12 |
| No. of Stator Poles | 10 |
| Motor Wind | 5T / 6T |
| Motor Wire | 1.6mm |
| *Higher Cell Count possible with appropriate gear ratio adjustment | |

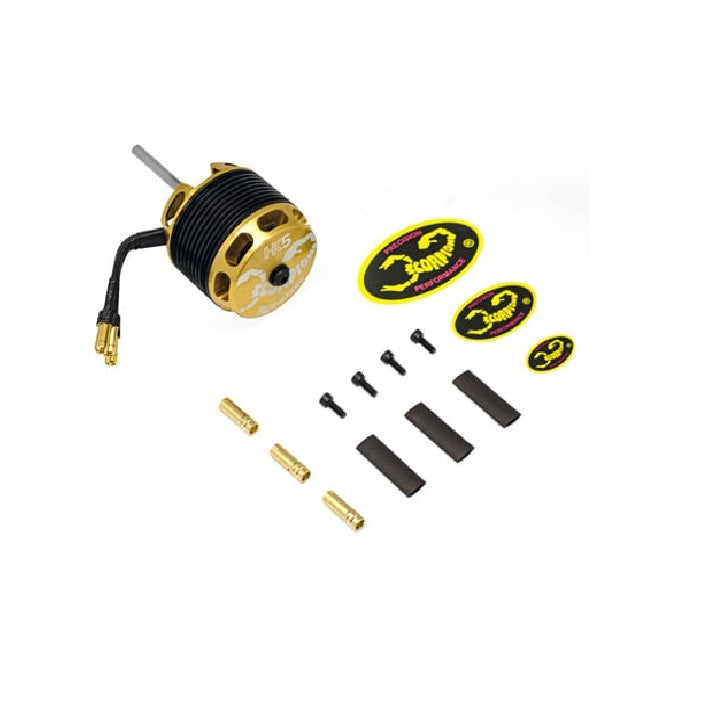

Included in the Box
1 X HK5-5024 BLDC Motor
3 x 6mm Female Bullet Connectors
3 x Heat Shrink
1 x Accessory bag / Mounting Hardware
Weight including packaging
700g
