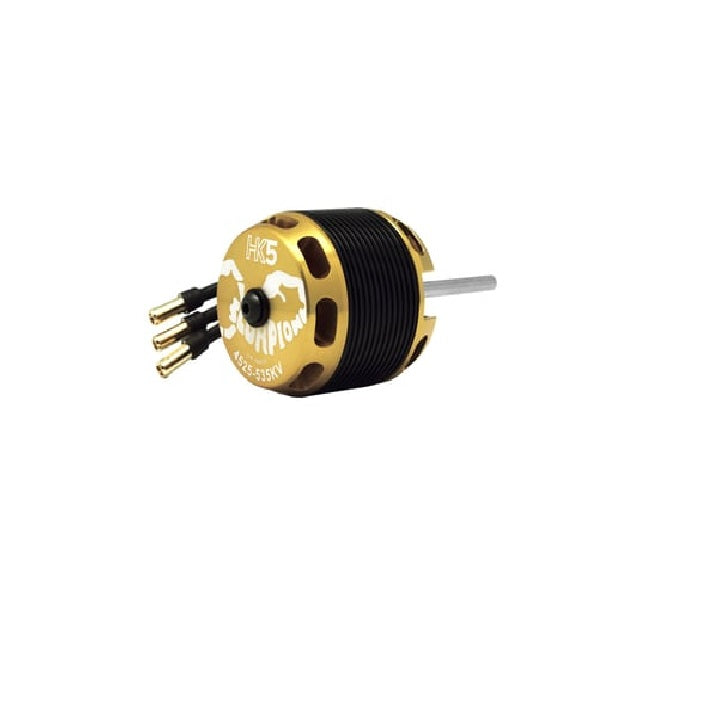

Scorpion HK5-4525-535KV (6 x 55mm shaft) Helicopter Motor
%20Helicopter%20Motor){kind=link}
Product Description
We introduce the fifth generation of Scorpion's renowned and award winning "HK - Series" motors. The Scorpion "HK5 - Series"
The HK5 Series lives up to and exceeds our standards of the most Powerful and Efficient motors, with market leading Torque per Amp capabilities. In addition, on the HK5 series we focused specifically on motor cooling and motor temperature. With an all new Internal Fan design, combined with our proven external centrifugal fan, we have nearly doubled the amount of airflow passing through the motor. The result is much improved cooling, and cooler operating temperatures.
The HK5-4525-535kv is designed for 700 size helicopters on 12s lipo, or other UAV application requiring up to 10,200w of power.
Specifications
| Motor Kv | 535KV RPM/Volt |
| Weight | ### Grams ( ###oz) |
| Motor Body Dimensions | ### mm x ###mm (###" x ###") |

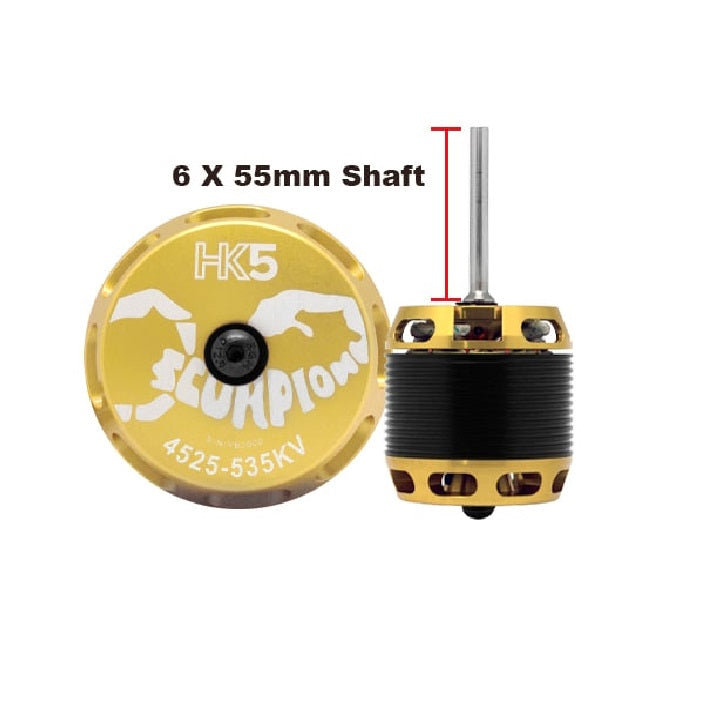

| External Shaft Dimensions | 5.98mm x 55mm (0.235" x 2.16") |
| Continuous Current | 115 Amps |
| Continuous Power | 5106 Watts |
| Peak Current | 230A (2 seconds) |
| Peak Power | 10200 Watts (2 seconds) |
| Max Lipo Cell | 12s |
| Stator Diameter | 45 mm (1.57 in) |
| Stator Thickness | 25 mm (1.18 in) |
| No. of Stator Arms | 12 |
| No. of Stator Poles | 10 |
| Motor Wind | 5+6T YY |
| Motor Wire | 1.4mm |

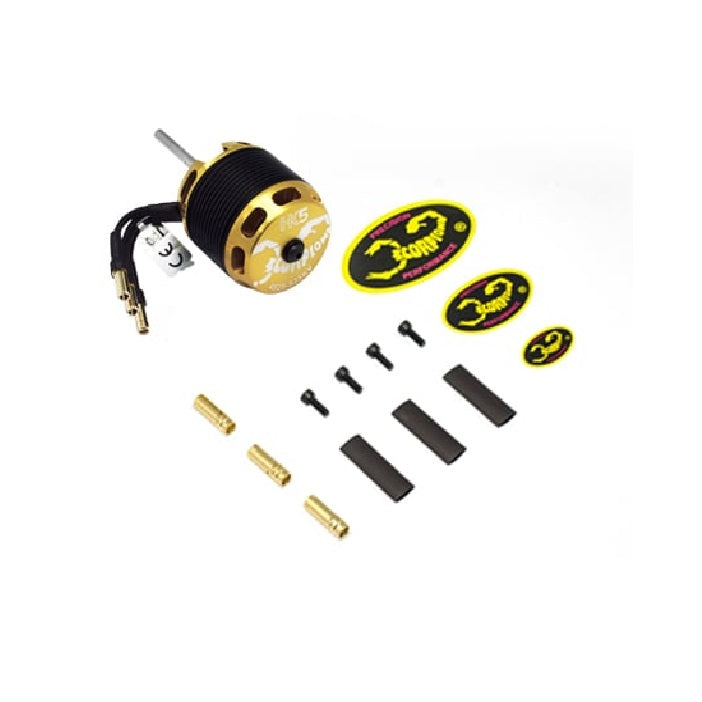

Included in the Box
1 x Scorpion HK5-4525-535kv BLDC Motor
3 x 6mm Female Bullet Connectors + Heat Shrink
1 x Hardware pack (M4 Bolts)
Weight including packaging
780g
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
HK5_4525_535_6_55 |
| Weight: |
3.0 lb |
Product Spare Parts
Customer Reviews

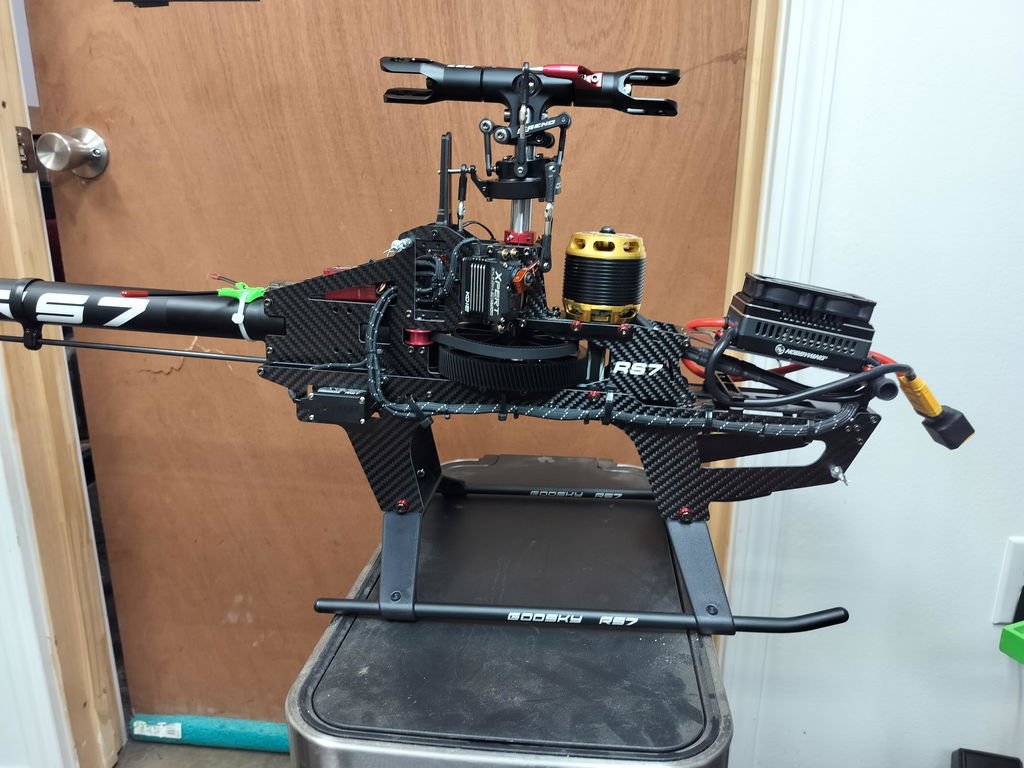

I have a scorpion motor in my Steam AK700 and this motor is installed in a Goosky RS7 but haven't run it yet due to waiting on battery connectors. Should be awesome though!
