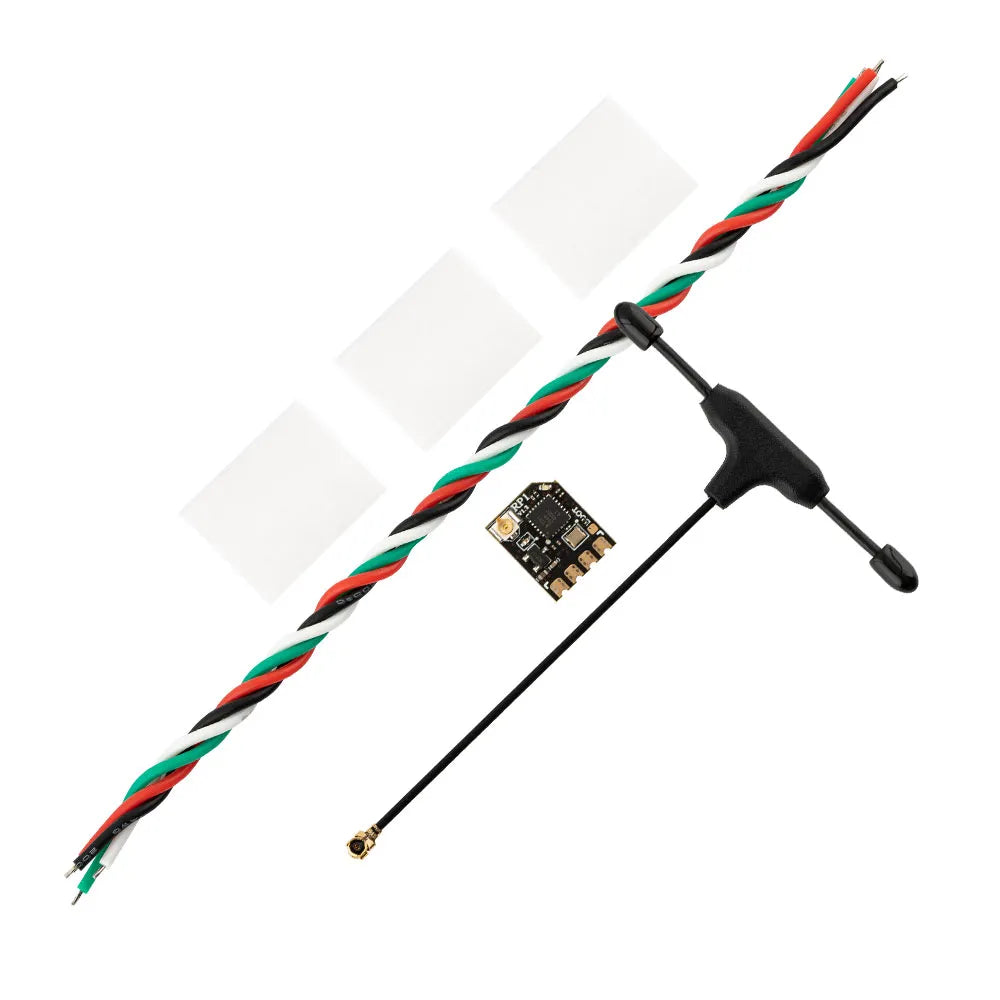

RadioMaster RP1 ExpressLRS 2.4ghz Nano Receiver V2

RadioMaster
|
HP0157-RX-RP1
You will earn 18.99 points for buying this product
Price Match Guarantee
$18.99 $0.00( / )
The RadioMaster RP series of receivers are designed with size, ease of use and range in mind. Utilizing ExpressLRS 2.4ghz Open-source firmware the RP series of nano receivers deliver features and range today pilots have come to expect.Developed around the ESP8285 MCU and SX1280IMLTRT RF Chip the RP series offer...

The RadioMaster RP series of receivers are designed with size, ease of use and range in mind. Utilizing ExpressLRS 2.4ghz Open-source firmware the RP series of nano receivers deliver features and range today pilots have come to expect.

Developed around the ESP8285 MCU and SX1280IMLTRT RF Chip the RP series offer Lora and FLRC 2.4ghz RF links offering incredible range and low latency. With Wifi built in FW updates can be done on your craft without the need to remove the receiver. Binding can be done using a bind phrase meaning no more bind plugs or fiddly button presses while trying to plug in your battery.

Tiny in size yet big on features and range the RP series of receivers have you covered.

What’s new on the RP1
★ Improved PCB design is better for heat dissipation.
★ Rigid antenna with greater durability and performance.
★ Solder pads are improved and easier to solder to.
★ LED on top side of PCB.

Specifications:
Item Name: RP1 Nano Receiver
Type: ISM
ESP8285 MCU
SX1280IMLTRT RF Module
Antenna: 65mm 2.4ghz T Antenna
Frequency Range: 2400 MHz to 2480 MHz
Maximum receive refresh rate: 500Hz / F1000Hz
Minimum receiver refresh rate: 25Hz
Working voltage: 5v
Weight: 0.53g (without antenna)
Dimension: 13mm*11mm*3mm
TCXO: Yes

Learn more about ExpressLRS
https://www.expresslrs.org/




Notes:
ELRS (standard) is pre-installed witn ExpressLRS ISM FW (Max power is hardware dependnant)

Type:

Receiver

Vendor:

RadioMaster

SKU:

HP0157-RX-RP1

Weight:

0.13 lb


Product Spare Parts

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
H
Hansen T.
Small simple and working well.

I have the receiver connected to a Matek CRSF to sBus converter and I have sBus output. However I just found out I don’t need to use the converter board. I can flash the beta firmware 3.x.x.x Maintenance and the receiver will have sBus output. Well worth the price. I also have the RP2 which has the little antenna.

M
Matt B.
Excellent receiver!

A bit confusing to flash one of these ELRS receivers first time or two but it’s really pretty simple. They work really well once setup with fantastic range.
