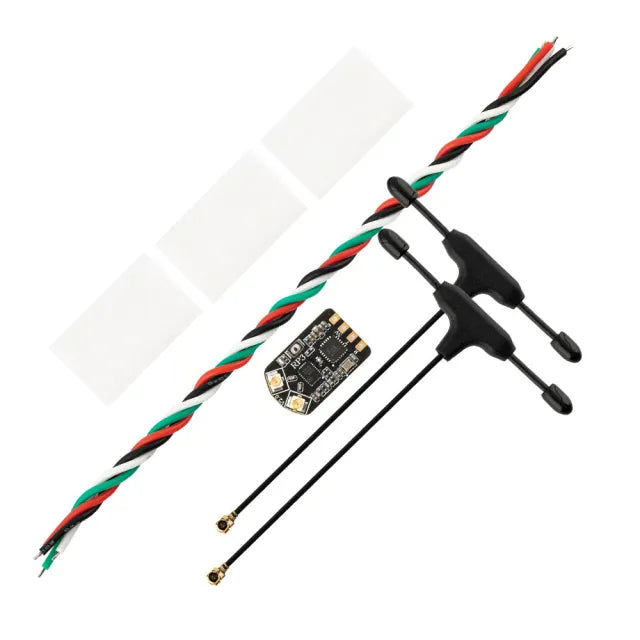

RadioMaster RP3 ExpressLRS 2.4ghz Nano Receiver V2

The RadioMaster RP series of receivers are designed with size, ease of use and range in mind. Utilizing ExpressLRS 2.4ghz Open-source firmware the RP series of nano receivers deliver features and range today pilots have come to expect.

Developed around the ESP8285 MCU and SX1280IMLTRT RF Chip the RP series offer Lora and FLRC 2.4ghz RF links offering incredible range and low latency. With Wifi built in FW updates can be done on your craft without the need to remove the receiver. Binding can be done using a bind phrase meaning no more bind plugs or fiddly button presses while trying to plug in your battery.

The RP3 receiver features a Skyworks SE2431L providing an LNA for improved receiver performance, a PA providing up to 100mw of telemetry performance and antenna switching for antenna diversity.

Specifications
Item: RP3 Diversity Receiver
Type: ISM
MCU: ESP8285
RF Chip: SX1280IMLTRT
Telemetry RF power: max 100mw
Antenna: 65mm 2.4ghz T Antenna x 2
Frequency Range: 2400 MHz to 2480 MHz
Maximum receive refresh rate: 500Hz / F1000Hz
Minimum receiver refresh rate: 25Hz
Working voltage: 5v
Weight: 4.6g (Including two antenna)
Dimension: 22mm*13mm*4mm
Firmware Version: ExpressLRS v3.0 pre-installed
FW Target: RadioMaster RP3 Diversity 2400 RX
Bus interface: CRSF

RP3 Key Features
★ Optimised PCB design for better for heat dissipation.
★ LNA for better Receiver range.
★ PA for better telemetry range.
★ Antenna Diversity for improved signal stability and range.

Notes:
ELRS (standard) is pre-installed witn ExpressLRS ISM FW (Max power is hardware dependnant)
