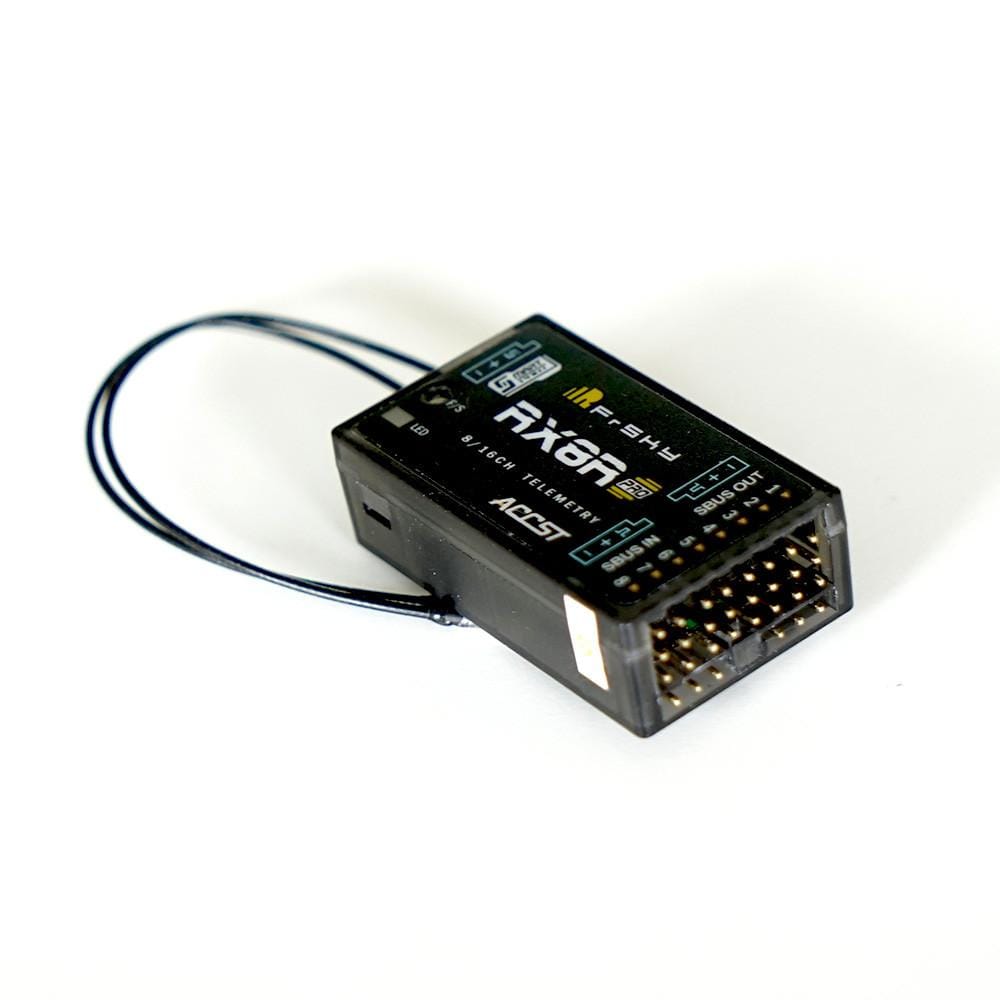

FrSky RX8R PRO Receiver Including Redundancy

FrSky
|
FR-03021808
You will earn 41.50 points for buying this product
Price Match Guarantee
$37.35 $41.50( / )
An upgraded version based on the RX8R receiver, it has all the same features including redundancy. The Pro version has higher precision and lower latency. Its deviation of PWM is reduced to 0.5us, and the delay of PWM output is 9ms less than that of the X8R in high-speed mode....

An upgraded version based on the RX8R receiver, it has all the same features including redundancy. The Pro version has higher precision and lower latency. Its deviation of PWM is reduced to 0.5us, and the delay of PWM output is 9ms less than that of the X8R in high-speed mode. A feature that deserves mention is the decreased effect of interference caused by the ignition process.


Specifications

  • Dimension: 25mm*26.6mm*14.2mm (L*W*H)
  • Weight: 14.8g
  • Numbers of Channels: 16CH(1～8CH PWM or 9~16CH PWM from conventional channel outputs, 1~16CH from SBUS)
  • With RSSI Output on Board: Analog DC 0~3.3V
  • Operating Voltage Range: 3.5V~10V
  • Operating Current: 100mA@5V
  • Operating Range: full range(>1.5km)
  • Firmware Upgradeable
  • Servo Frame Rate: 9ms (HS— High-Speed Mode)/18ms (FS—Normal Speed Mode)
  • Compatibility: FrSky transmitters/transmitter modules in the D8/D16 mode

Features

  • Support redundancy function
  • Smart Port enabled and supported telemetry data transmission
  • Higher precision deviation of PWM
  • Decreased Effect of interference caused by the ignition process
  • Lower latency on the PWM output
  • Strong anti-interference performance



Download FrSky RX8R PRO Relevant Files

Type:

Receiver
Vendor:

FrSky
SKU:

FR-03021808
Weight:

0.2 lb

Product Spare Parts

Customer Reviews

Based on 4 reviews
75%
(3)
0%
(0)
0%
(0)
0%
(0)
25%
(1)
W
Walter H.
Frsky RX8R Receiver

Excellent receiver from Helidirect at a good price

S
SitNFly
Solid receiver, even if it is ACCST

I use this receiver paired with an XM+ redundant receiver in my EDF jets. Also can easily connect FrSky telemetry modules to this receiver. I always use the voltage monitor and sometimes the current monitor, depending on room in the aircraft. Solid link, no glitches, knock on wood.

D
Dan i.M.
Solid receivers...just the way you want them to be.

I am currently flying 3 of these, one on S.Bus with a power expander in large scale bipe, one on S.Bus in a EDF through Aura flight controller and the other with PWM in a glow plane. All work flawlessly and are super solid on telemetry. Focus stays on flying the plane, these babies keep your link connected as far as you can see 'em...and likely further. A+ to FrSky for a great piece of hardware!

J
Jose T.F.A.
FrSky RX8R PRO Receiver

it is the successor to a well known receiver, the X8R, so it deserves to be considered a solid product, it should be noted that owners of older transmitters like the Taranis will need to update the firmware of their internal module in order to bind this receiver
