RadioMaster Ranger Micro 2.4GHZ ELRS Module Combo
$59.99
$0.00( / )
Want to experience the efficiency, long range and low latency of the ELRS protocol without purchasing a new radio? RadioMaster has you covered! Featuring up to 1W output, F-1000Hz refresh rates and a high efficiency cooling system, the Ranger Micro 2.4GHz ELRS Module represents the cutting edge in ELRS technology....

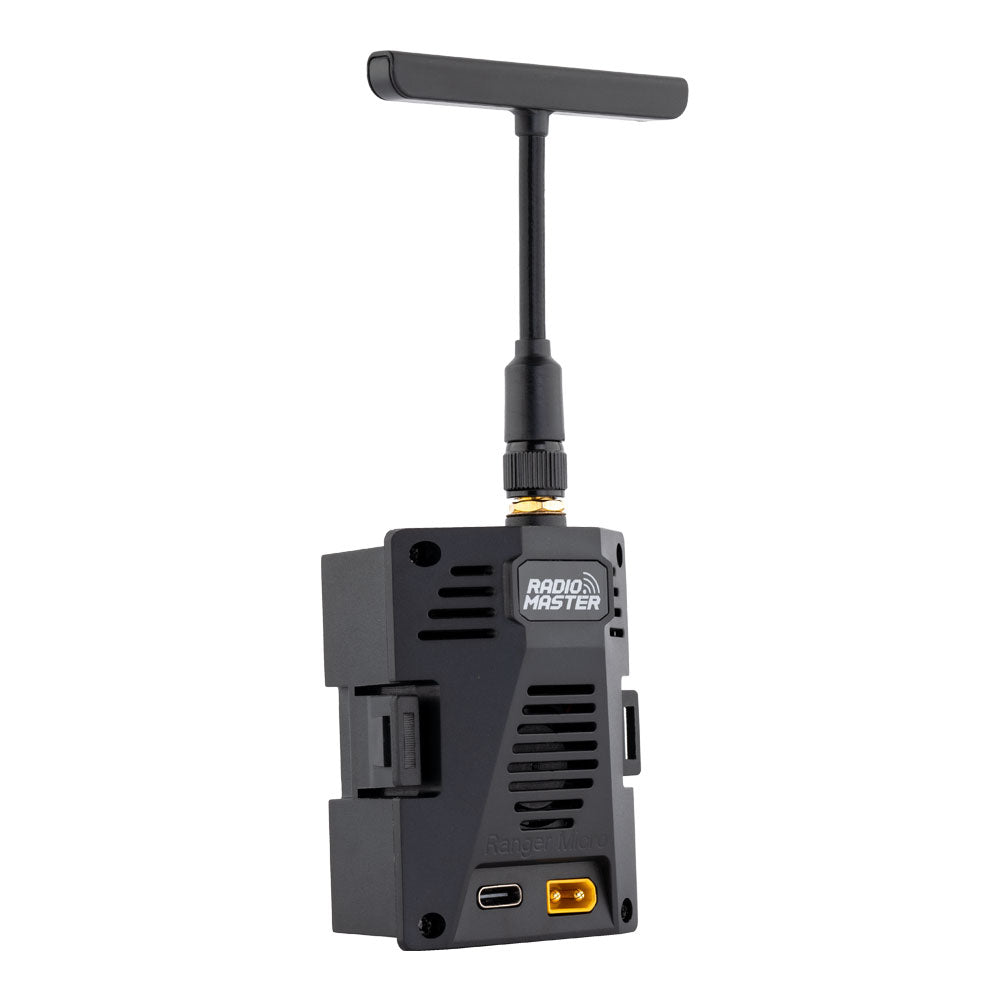

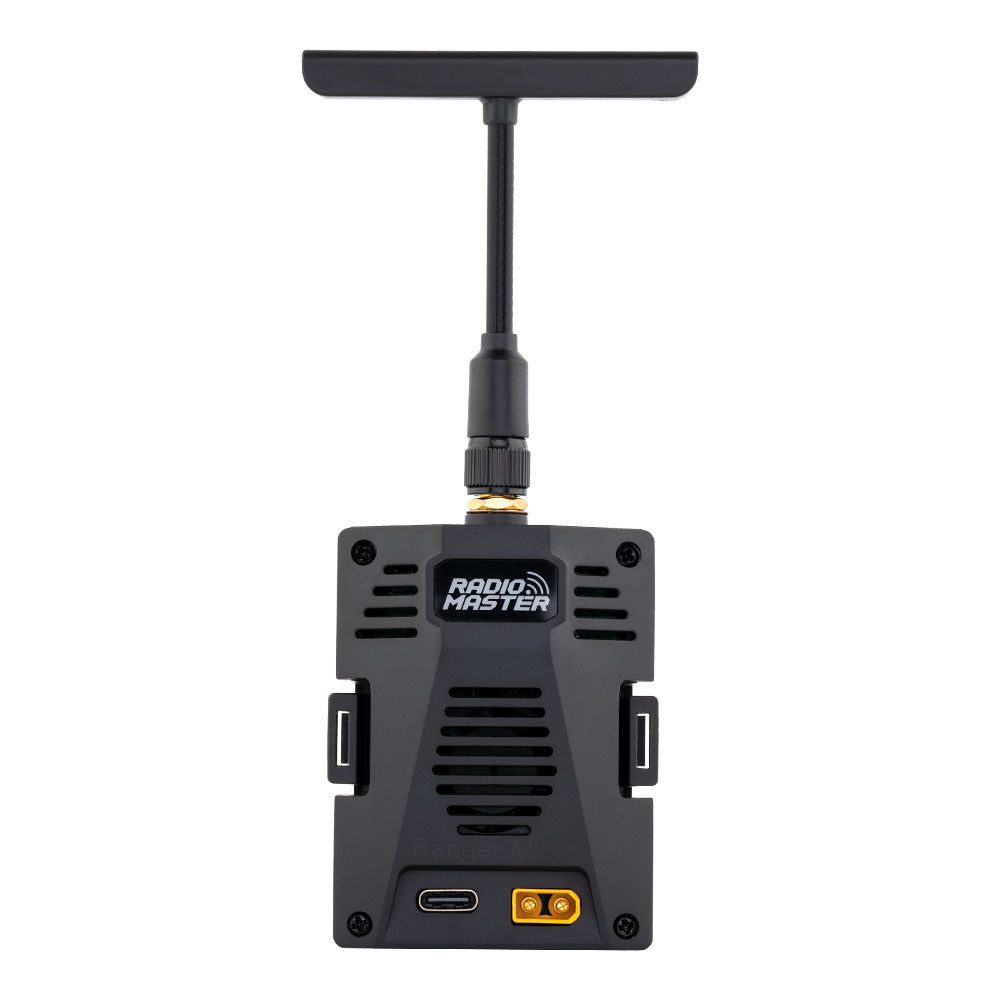

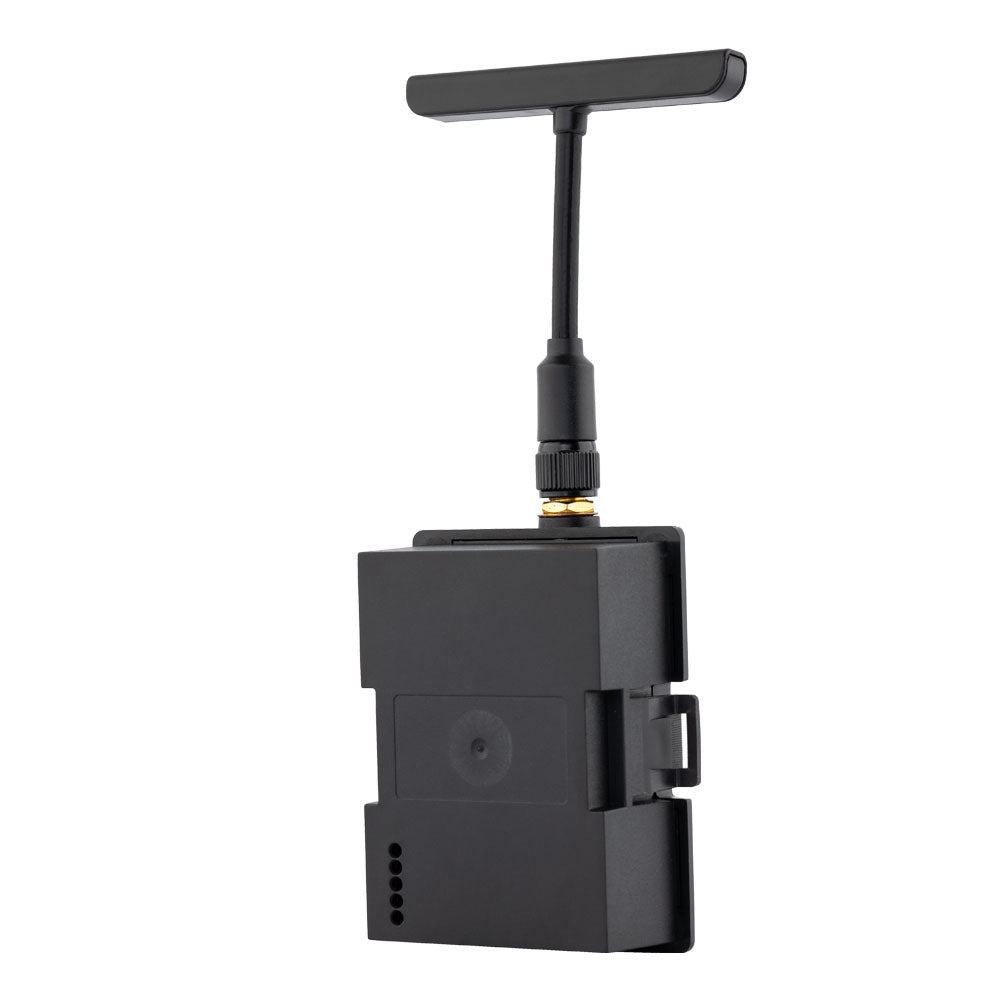

Want to experience the efficiency, long range and low latency of the ELRS protocol without purchasing a new radio? RadioMaster has you covered! Featuring up to 1W output, F-1000Hz refresh rates and a high efficiency cooling system, the Ranger Micro 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (TX16S, TX16S MkII, TX12, TX12 MkII and more) to enjoy all that ELRS has to offer.

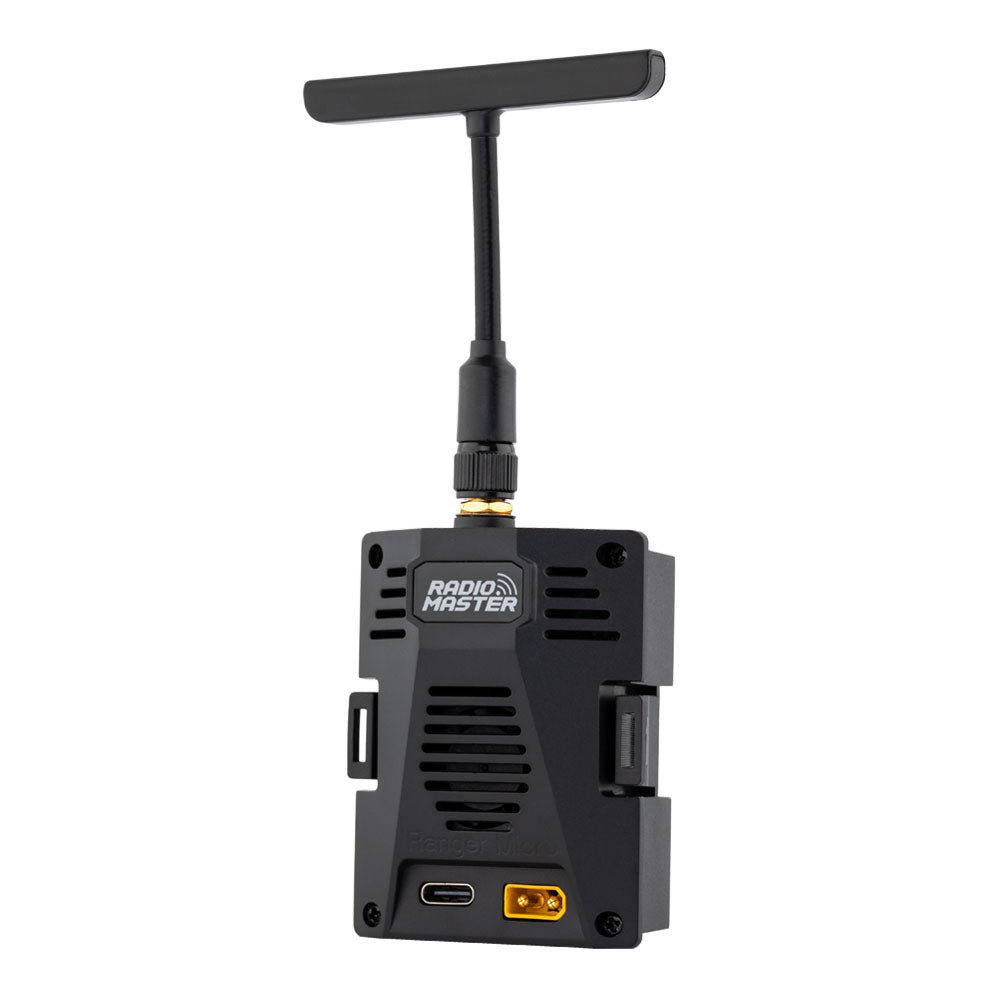

The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.
*Note: The Ranger Micro 2.4GHz ELRS Module fits JR style micro module bays, for Nano connectors, please consider the Ranger and the Ranger Nano modules. For more information on the Ranger series, please click here
Combo Package

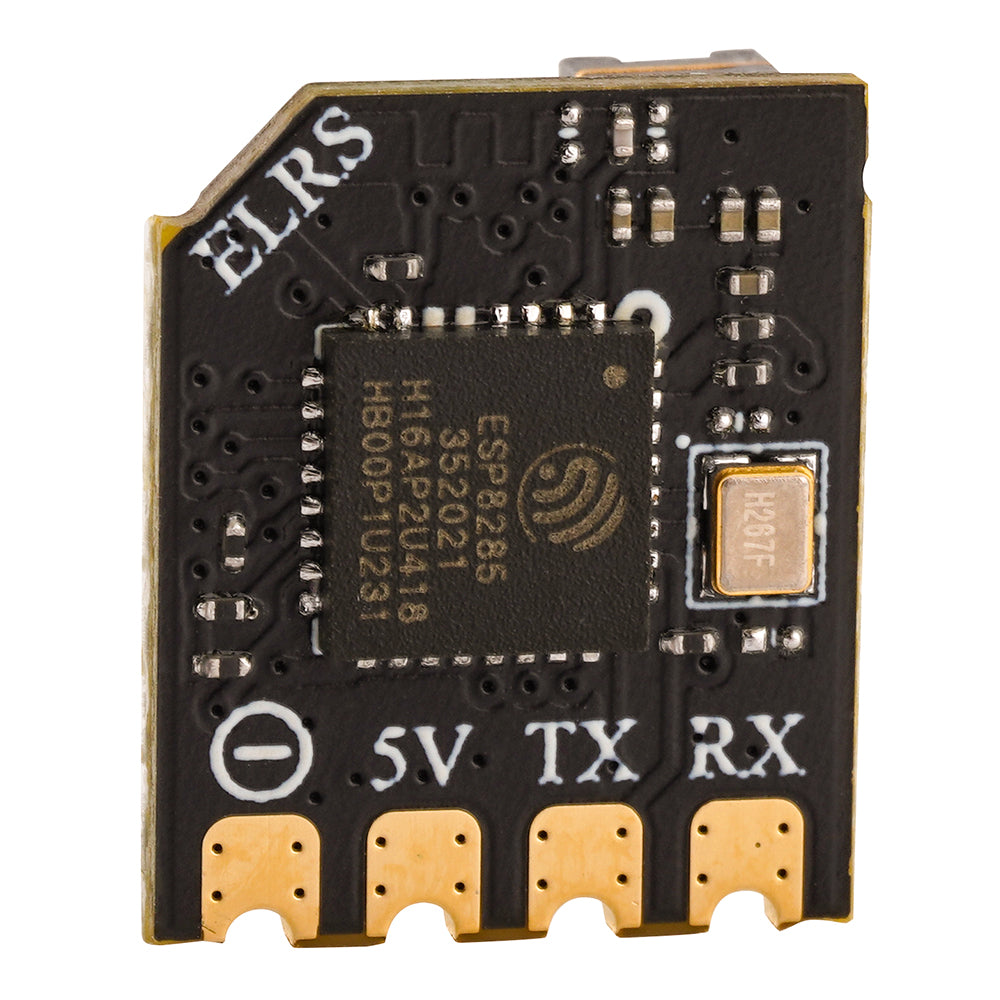

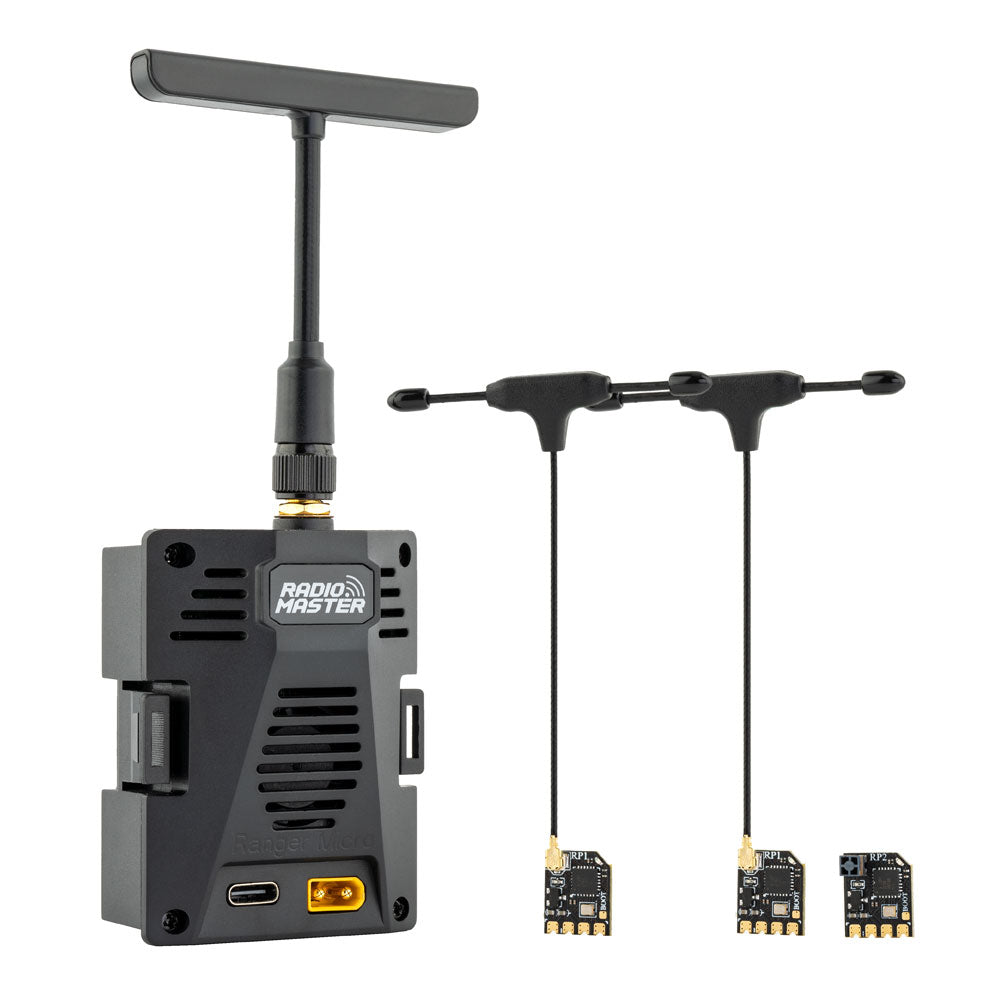

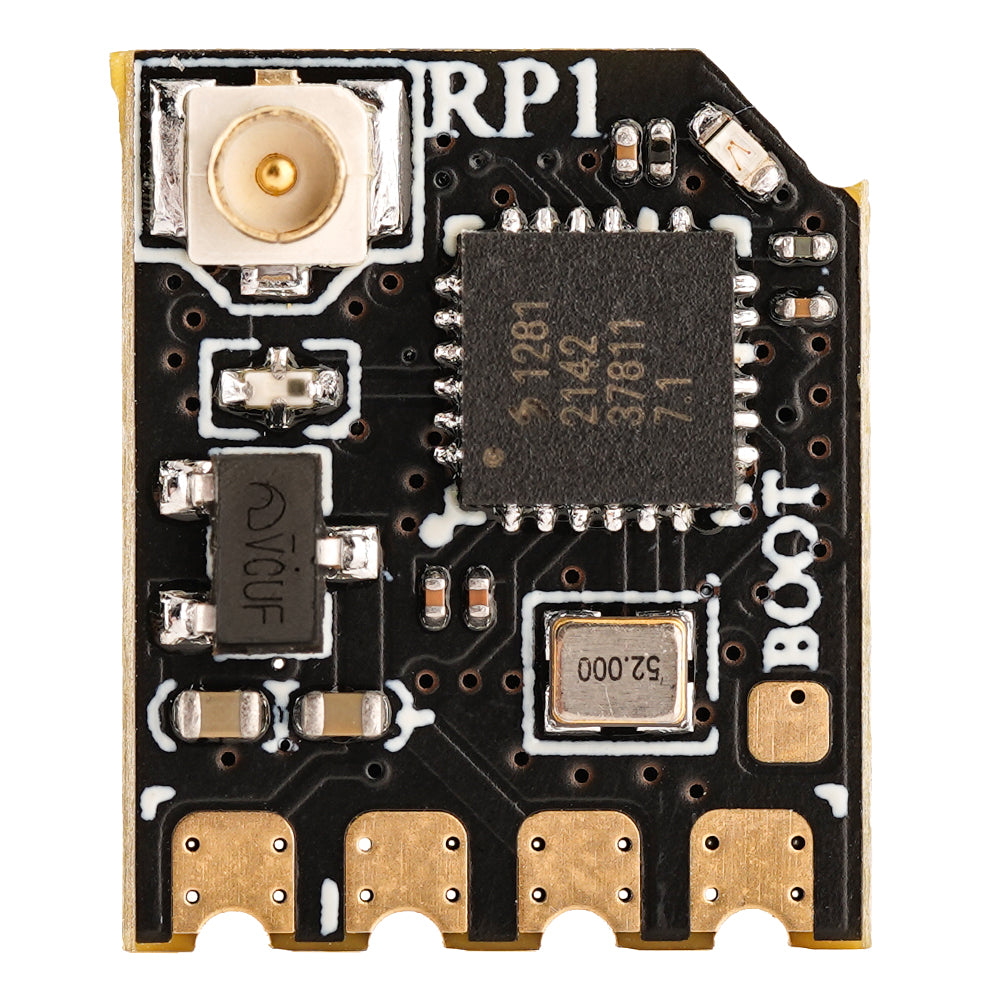

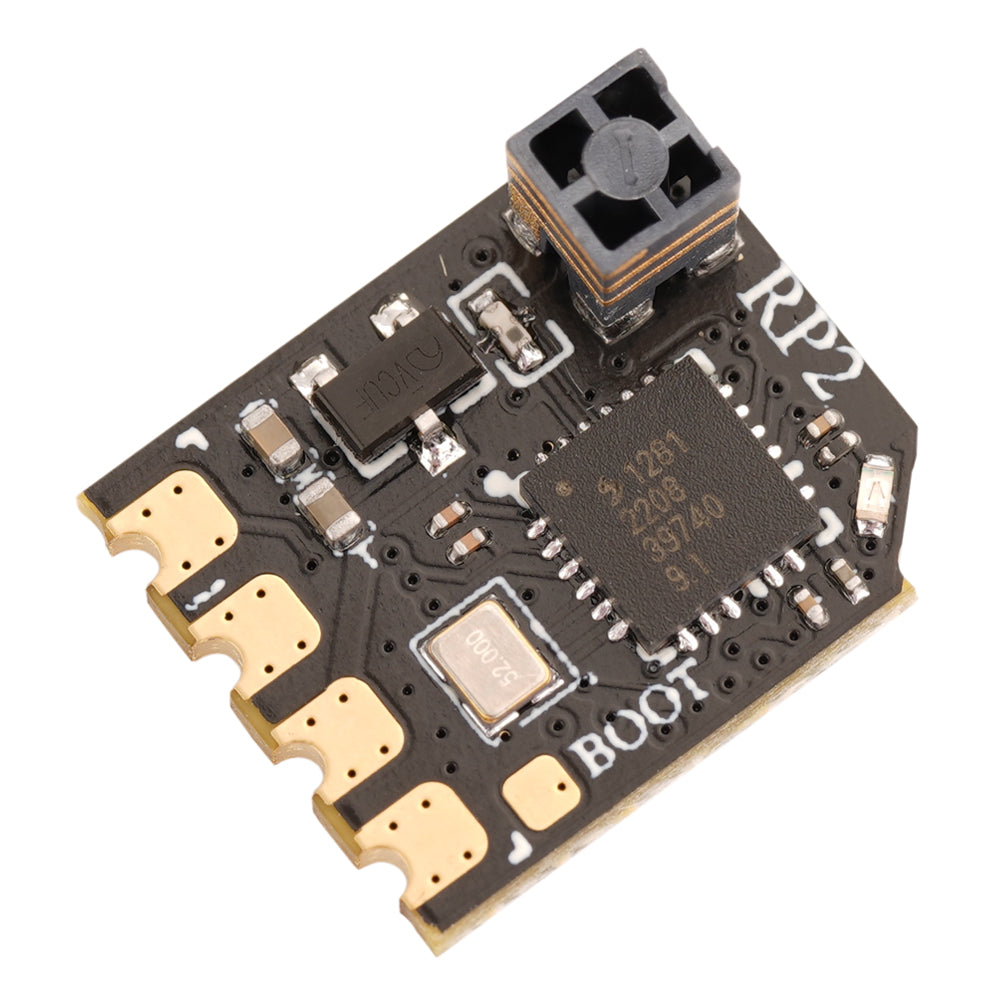

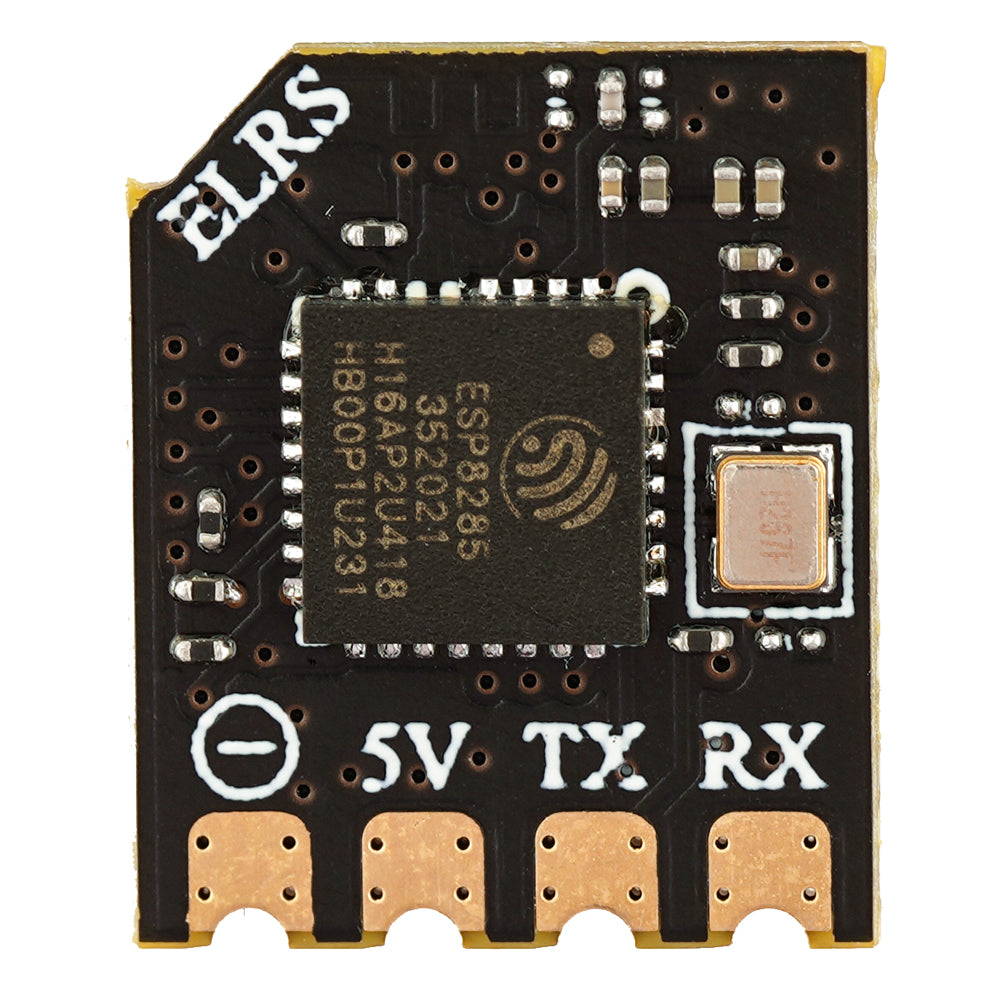

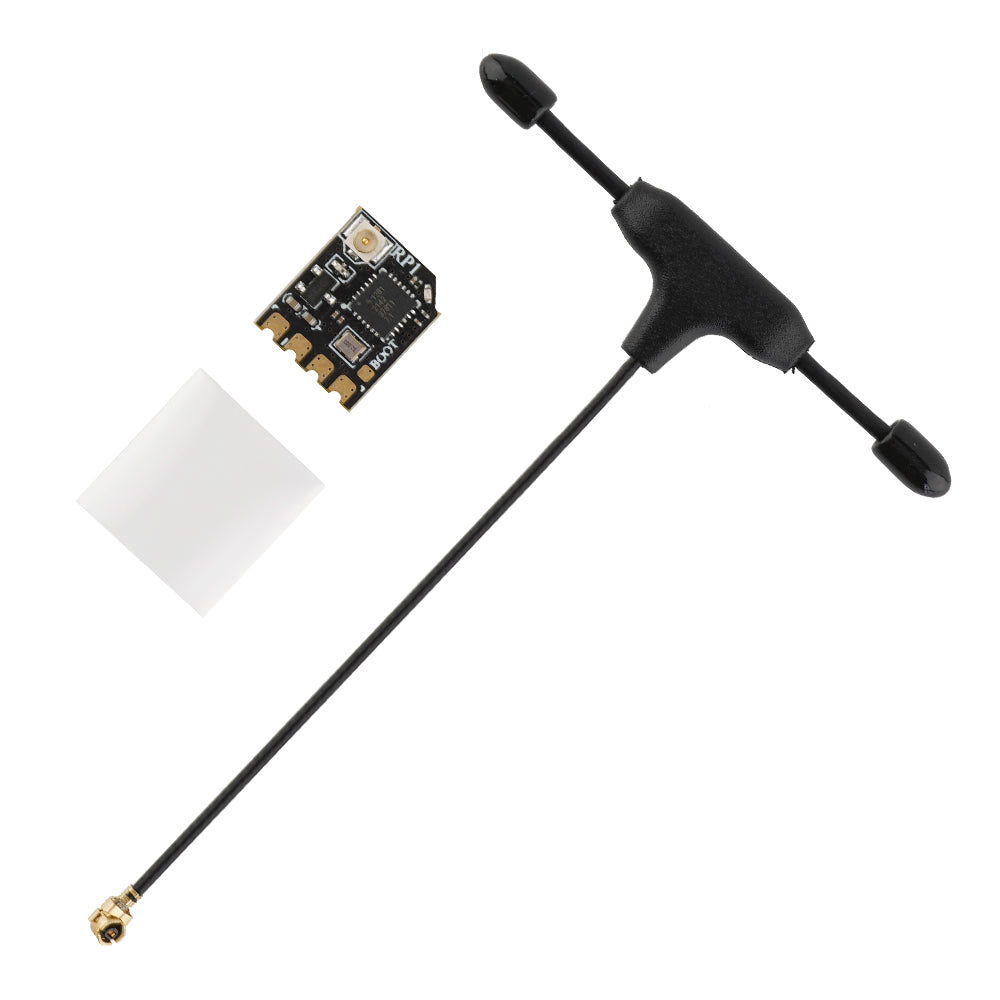

The Ranger Micro Combo package is the ideal way to get started in the world of ExpressLRS. A complete Ranger Micro module is provided along with two RP1 ExpressLRS receivers and one RP2 ExpressLRS receiver.
Features
★ High-efficiency cooling system
★ Up to 1Watt Power output
★ Wifi and Bluetooth support
★ Packet rates up to F-1000Hz
★ T-antenna included
★ With the Micro connector, support TX16S MKII and TX12 MKII radio
★ Combo Package includes 1 x Ranger Micro Module, 2 x RP1 Receiver, 1 x RP2 Receiver
Specification
Item: Ranger Micro Module
Regulatory Domain: ISM2400
MCU: ESP32(main), ESP8285(aux,as espbackpack)
RF chip: SX1281IMLTRT
Frequency Range: 2400 MHz to 2480 MHz
Maximum packet rate: 500Hz/F1000Hz (F1000 mode requires EdgeTX 2.7.1 or later)
Minimum receiver refresh rate: 25Hz
RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
Wifi Support: Yes
Bluetooth support: Yes

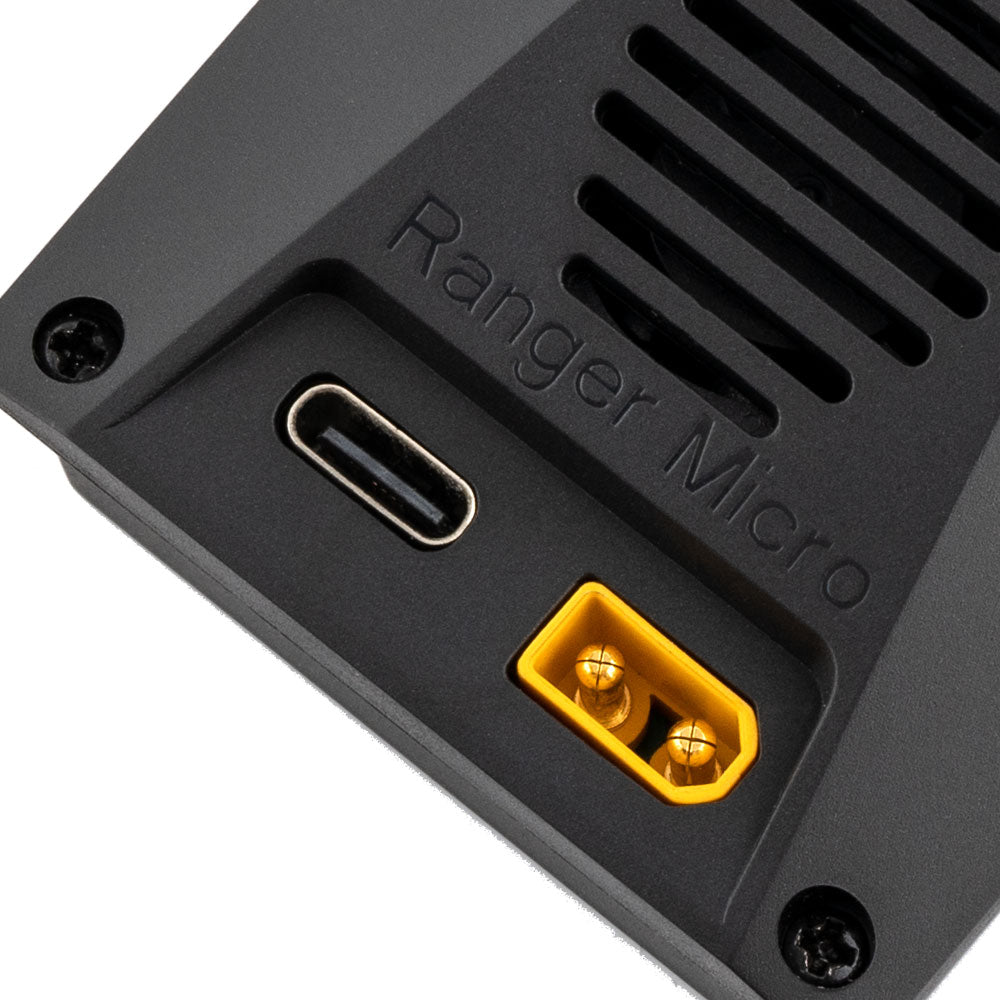

XT30 Power supply voltage: DC 6V - 16.8V
Weight: 50g (with antenna) / 40.5g (without antenna)

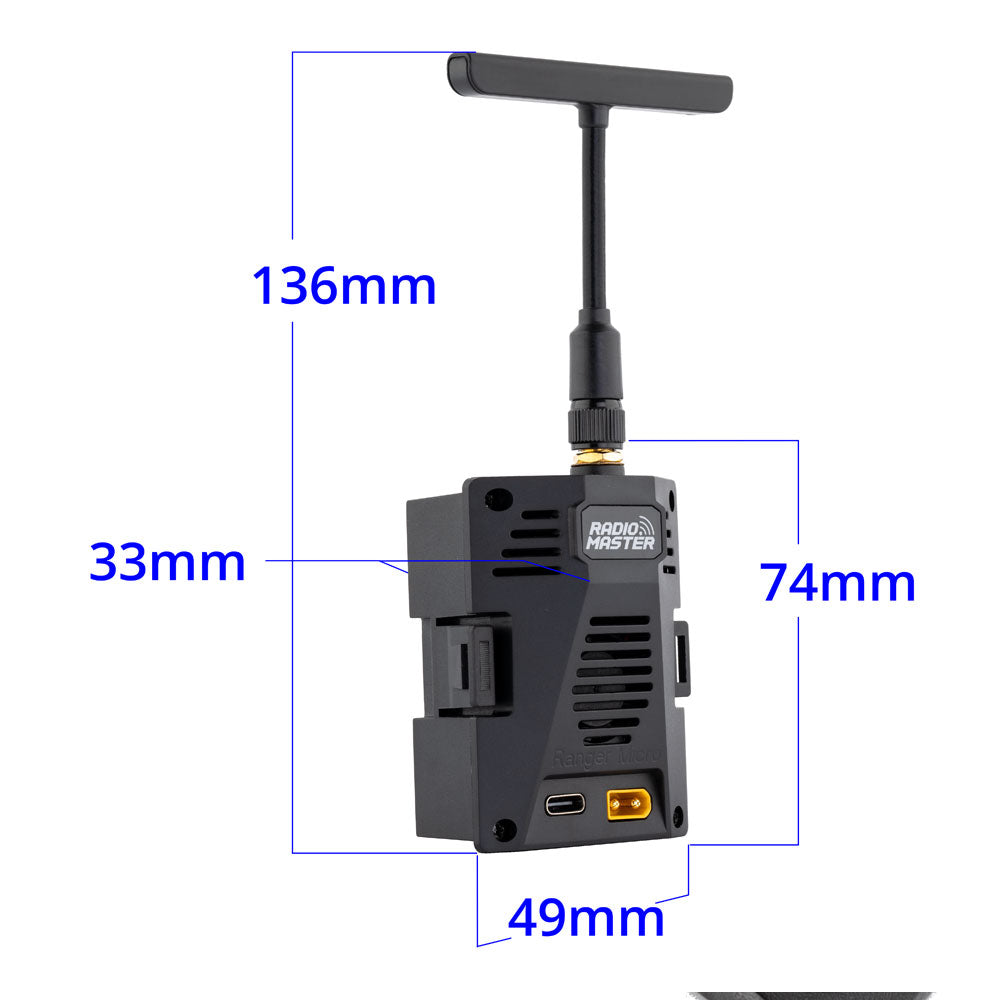

Dimension: 136*49*33mm (with T antenna) / 74*49*33mm (without antenna)
The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.
*Note: The Ranger Micro 2.4GHz ELRS Module fits JR style micro module bays, for Nano connectors, please consider the Ranger and the Ranger Nano modules. For more information on the Ranger series, please click here
Combo Package
The Ranger Micro Combo package is the ideal way to get started in the world of ExpressLRS. A complete Ranger Micro module is provided along with two RP1 ExpressLRS receivers and one RP2 ExpressLRS receiver.
Features
★ High-efficiency cooling system
★ Up to 1Watt Power output
★ Wifi and Bluetooth support
★ Packet rates up to F-1000Hz
★ T-antenna included
★ With the Micro connector, support TX16S MKII and TX12 MKII radio
★ Combo Package includes 1 x Ranger Micro Module, 2 x RP1 Receiver, 1 x RP2 Receiver
Specification
Item: Ranger Micro Module
Regulatory Domain: ISM2400
MCU: ESP32(main), ESP8285(aux,as espbackpack)
RF chip: SX1281IMLTRT
Frequency Range: 2400 MHz to 2480 MHz
Maximum packet rate: 500Hz/F1000Hz (F1000 mode requires EdgeTX 2.7.1 or later)
Minimum receiver refresh rate: 25Hz
RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
Wifi Support: Yes
Bluetooth support: Yes
XT30 Power supply voltage: DC 6V - 16.8V
Weight: 50g (with antenna) / 40.5g (without antenna)
Dimension: 136*49*33mm (with T antenna) / 74*49*33mm (without antenna)
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
HP0157-0034-COMB |
| Weight: |
0.25 lb |
Product Spare Parts
Customer Reviews
Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
C

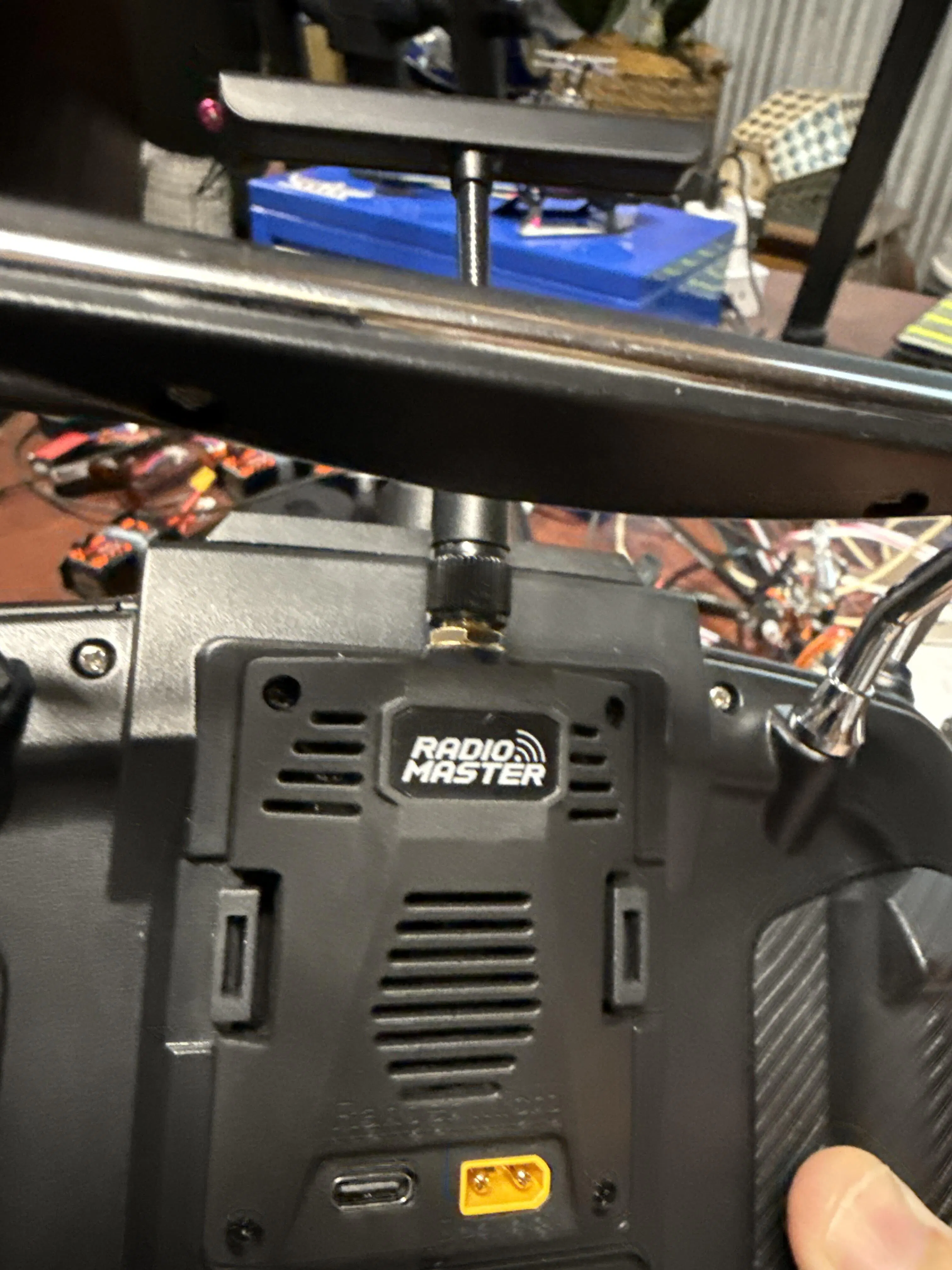

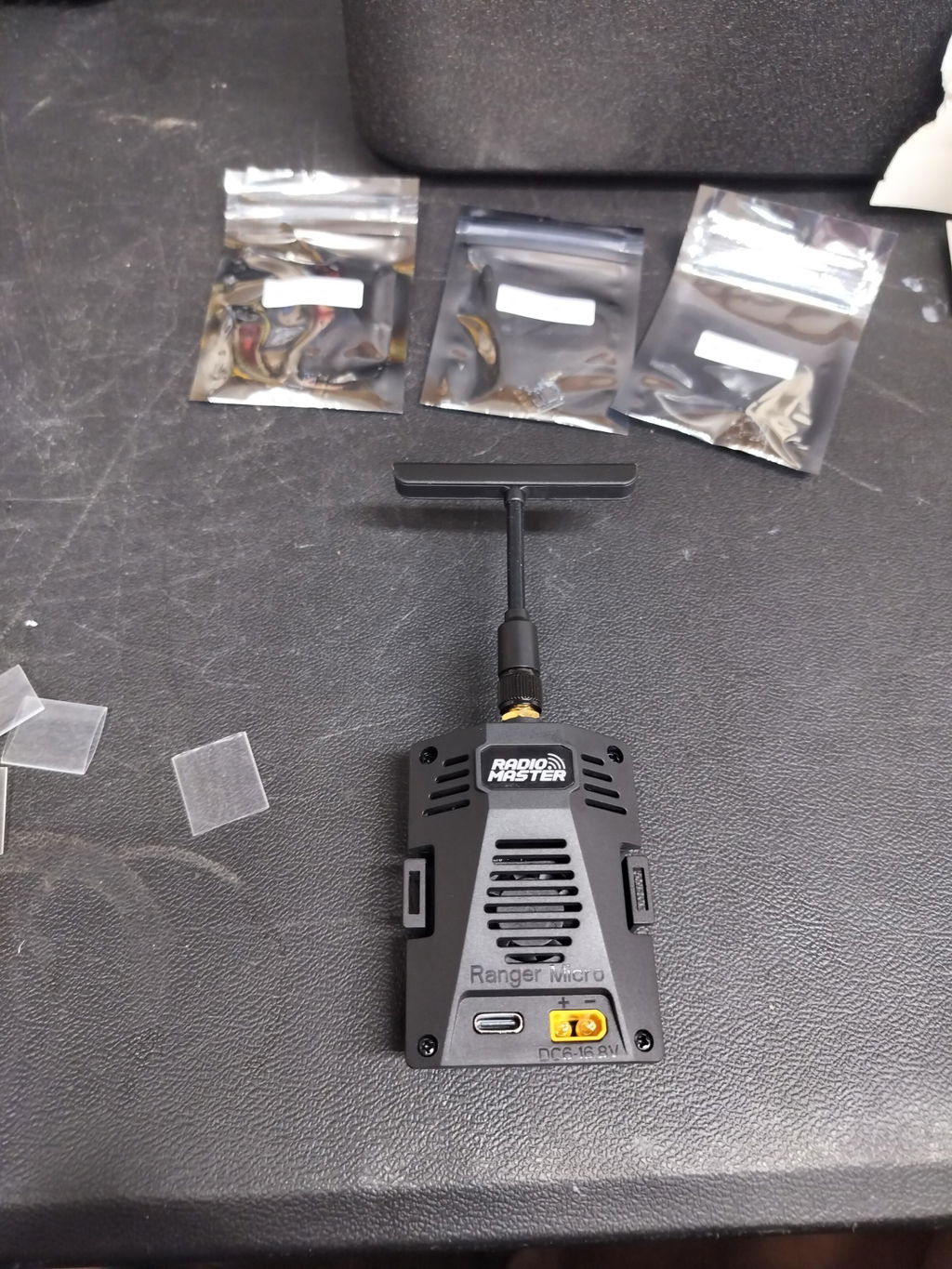

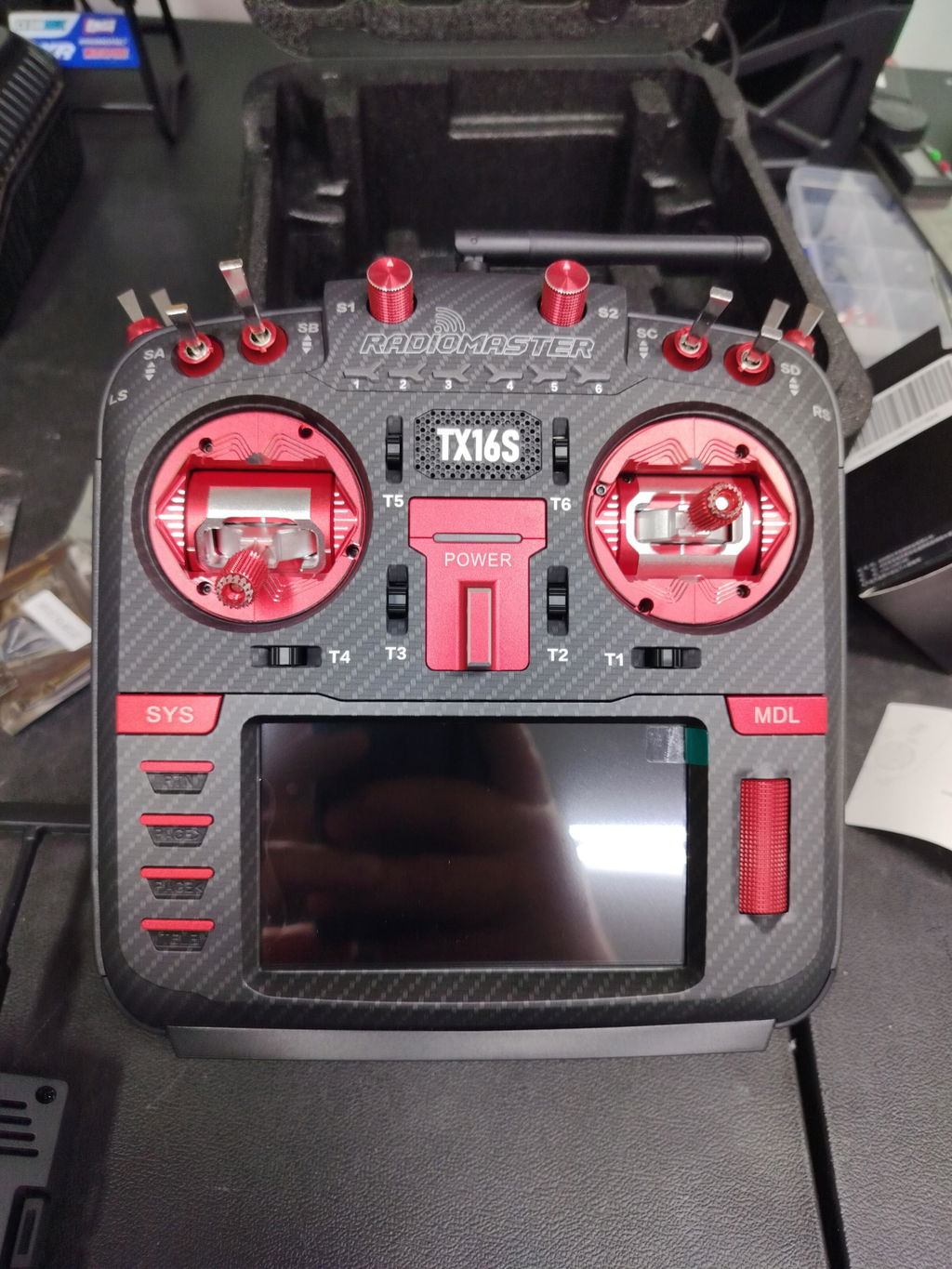

So far it's working good. I'm using it in a radiomaster TX16S MK2 to fly fpv for the first time.
