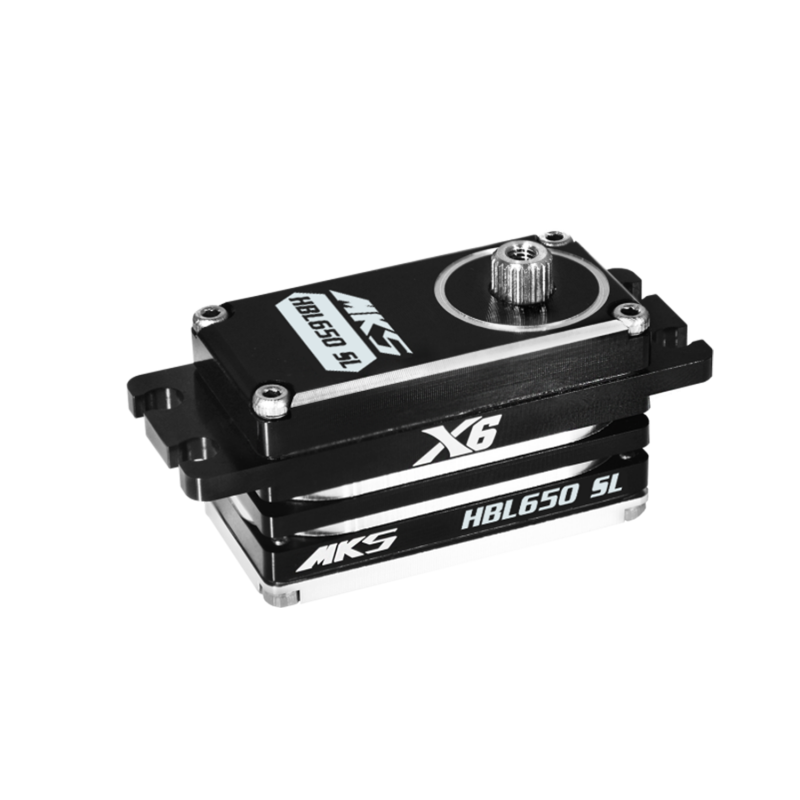

MKS HBL650SL (0.08s/60 - 25.4kg.cm@8.2v) Fullsize Cyclic Servo
$161.90
$0.00( / )
SERVO SPECIFICATION Torque (kg-cm) 18.5 (6.0V) / 22.9 (7.4V) / 25.4 (8.2V) Torque (oz-in) 256.9 (6.0V) / 318.0 (7.4V) / 352.7 (8.2V) Speed 0.11 s (6.0V) / 0.09 s (7.4V) / 0.081 s (8.2V) Stall Current (at locked load) 2.8A (6.0V) / 3.5A (7.4V) / 3.87A (8.2V) Working Voltage 4.8V...
%20Fullsize%20Cyclic%20Servo){kind=link}
| SERVO SPECIFICATION | |
| Torque (kg-cm) | 18.5 (6.0V) / 22.9 (7.4V) / 25.4 (8.2V) |
| Torque (oz-in) | 256.9 (6.0V) / 318.0 (7.4V) / 352.7 (8.2V) |
| Speed | 0.11 s (6.0V) / 0.09 s (7.4V) / 0.081 s (8.2V) |
| Stall Current (at locked load) | 2.8A (6.0V) / 3.5A (7.4V) / 3.87A (8.2V) |
| Working Voltage | 4.8V ~ 8.4V DC Volts |
| Working Frequency | 1520μs / 333Hz |
| Dead Band | 0.001 ms (Default) |
| Bearing | 2* Ball Bearing |
| Gear | Metal Alloy Gear |
| Motor | Japanese-made Brushless Motor |
Description:
- Torque (6.0V): 18.5 kg-cm / 256.9 oz-in
- Torque (7.4V): 22.9 kg-cm / 318.0 oz-in
- Torque (8.2V): 25.4 kg-cm / 352.7 oz-in
- Speed: 0.11 s (6.0) / 0.09 s (7.4V) / 0.081 s (8.2V)
- Weight: 54 g (1.90 oz)
- Dimension：40.5 x 20.5 x 23.1 mm
