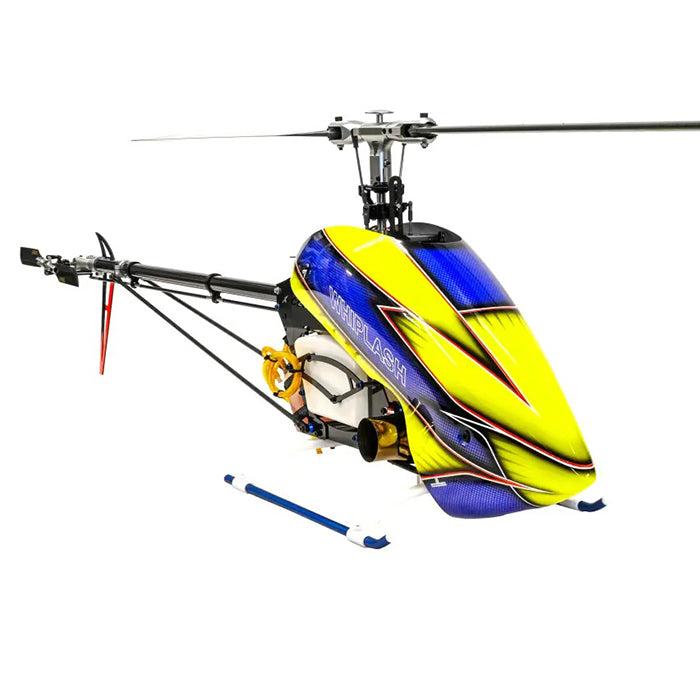

MA 1035-2 Whiplash-T II Turbine - Kit for Turbine Solutions Engine (w/o turbine engine)

|
MA1035-2
You will earn 1,499.99 points for buying this product
Price Match Guarantee
$1,499.99 $0.00( / )
1035-2 Whiplash-T II Turbine - Kit for Turbine Solutions Engine Specification Helicopter Heli Length 52.5" (1333mm) Heli Height 17.5" (445mm), Flybarless - 17" (432mm) Rotor Span 1561-1601mm - 690-720mm blades Tail Rotor Span 286mm with 105mm T/R blades Avg. Ready-to-Fly Weight 12-13lbs - 5.8-6.2kg (less fuel) Main Drive Ratio 8.35:1...

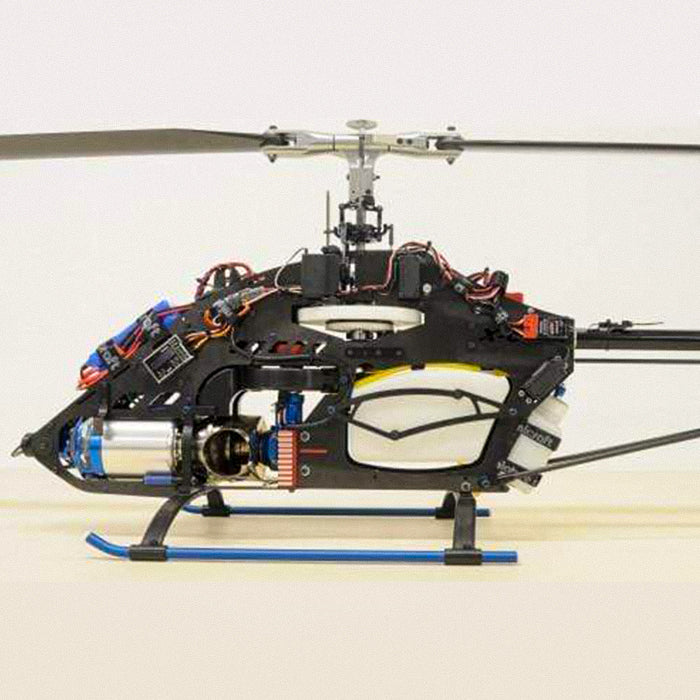

1035-2 Whiplash-T II Turbine - Kit for Turbine Solutions Engine
Specification
Helicopter
Heli Length52.5" (1333mm)
Heli Height17.5" (445mm), Flybarless - 17" (432mm)
Rotor Span1561-1601mm - 690-720mm blades
Tail Rotor Span286mm with 105mm T/R blades
Avg. Ready-to-Fly Weight12-13lbs - 5.8-6.2kg (less fuel)
Main Drive Ratio8.35:1
Tail Drive Ratio4.66:1
Main Rotor Blades690-720mm
Recommended PowerWren 44i heli turbine engine TS Whiplash Edition 45i heli turbine engine (Turbine Solutions)

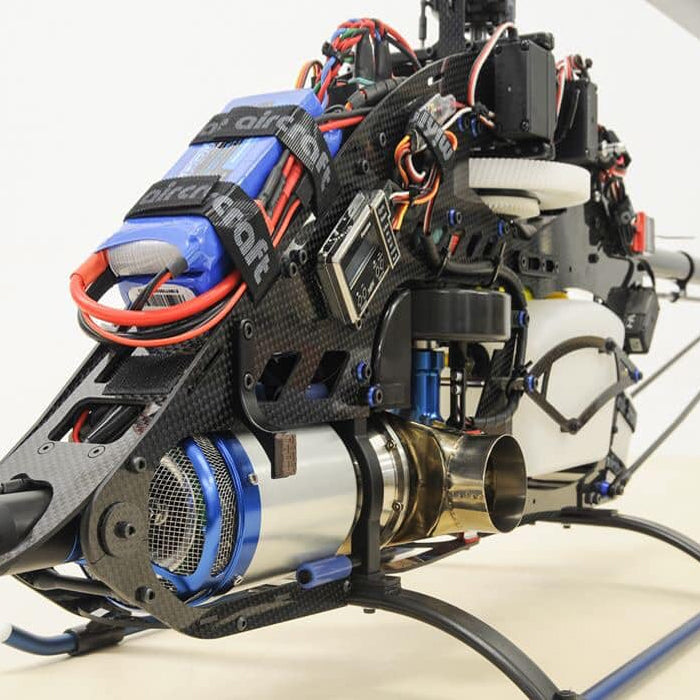

Chassis:
  • Sturdy graphite main frame unit.
  • All C/F parts are made from 100% carbon.

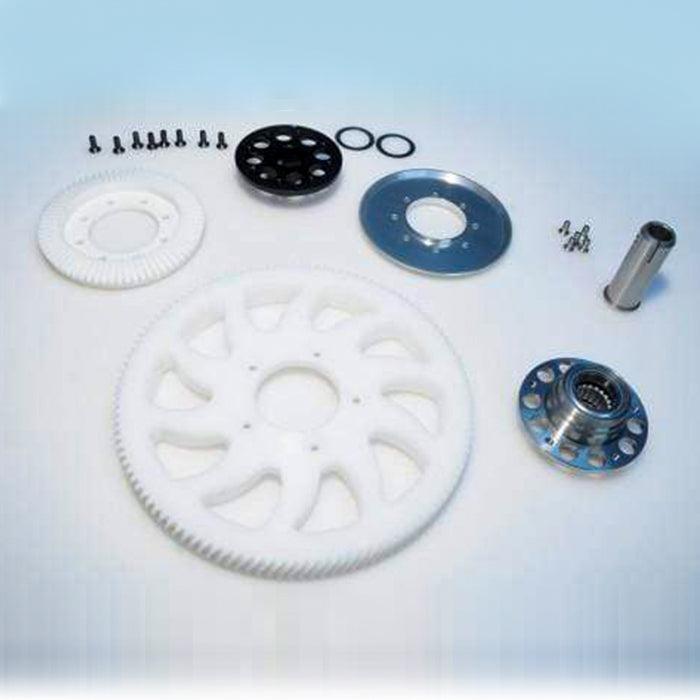

  • CNC machined Delrin helical main gear.
  • High quality one way bearing Made in Germany.
  • High quality one way bearing hub, full ball bearings.
  • Heavy duty, high quality front tail drive gears Made in Germany.
  • High precise two-piece clutch bell with double ball bearing support.
  • Optional gear ratios.
  • True T6-6061 CNC machined aluminum components.

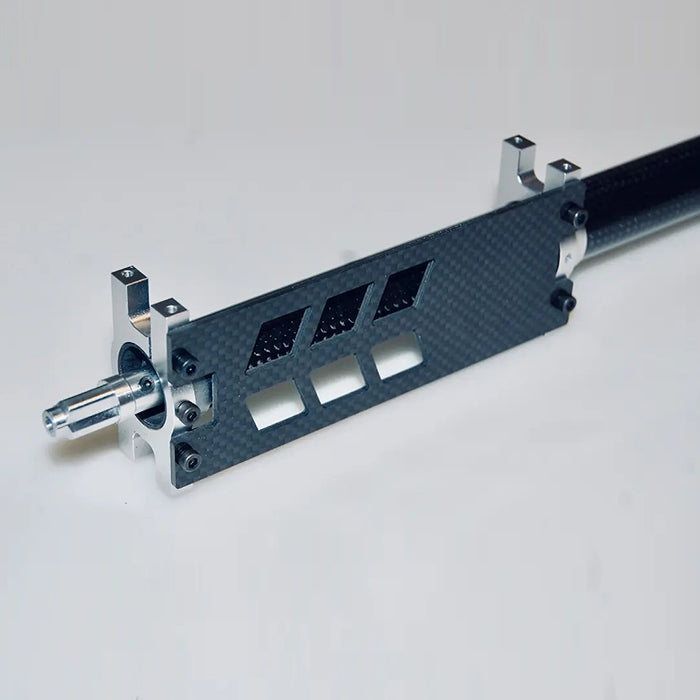

  • CNC machined aluminum triple main shaft bearing blocks.
  • Direct controlled 120 (degree) CCPM.
  • CNC machined aluminum boom clamps.
  • CNC machined aluminum engine mount.
  • Full ball bearings throughout.
  • High quality landing gear struts.

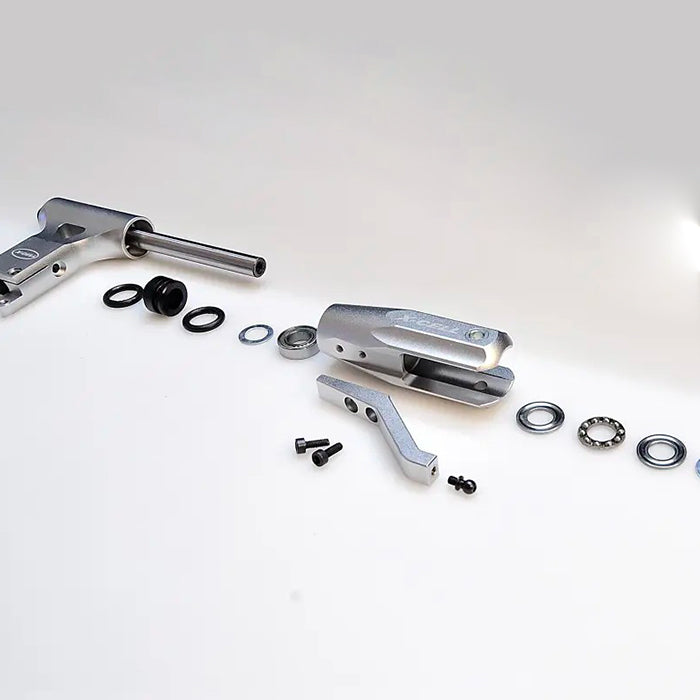

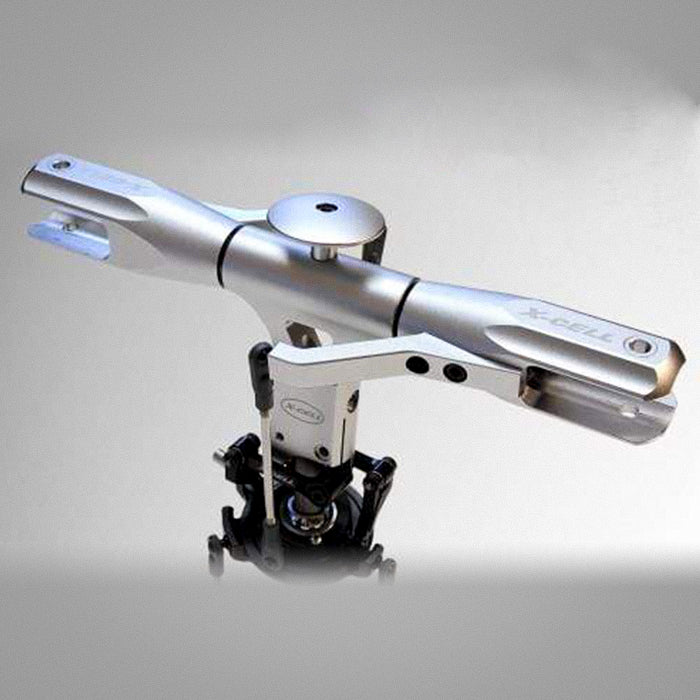

Rotor Head:
  • Full ball bearings
  • Heavy duty linkages
  • 9mm head axle made from special high quality steel
  • CNC machined aluminum swashplate

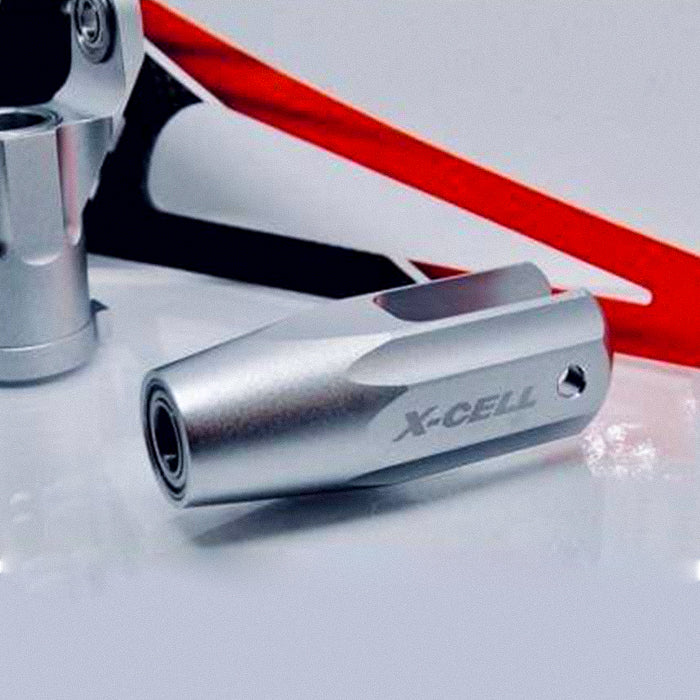

  • CNC machined main rotor grips
  • CNC machined main rotor head
  • High quality swashplate heim ball/ball bearing
  • High precise swash plate follower arms with 4 ball bearings each

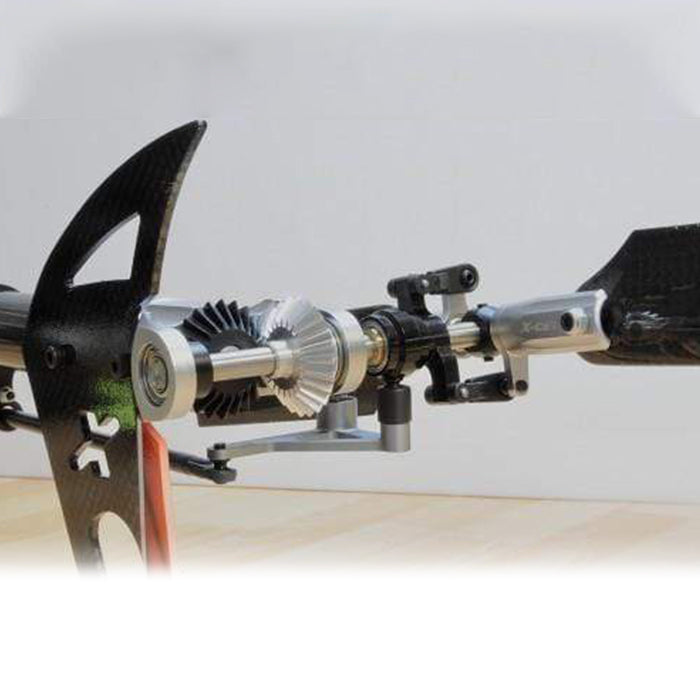

Tail Rotor:
  • Full ball/thrust bearings
  • Tail Rotor hub made from special high quality steel
  • Graphite tail fin

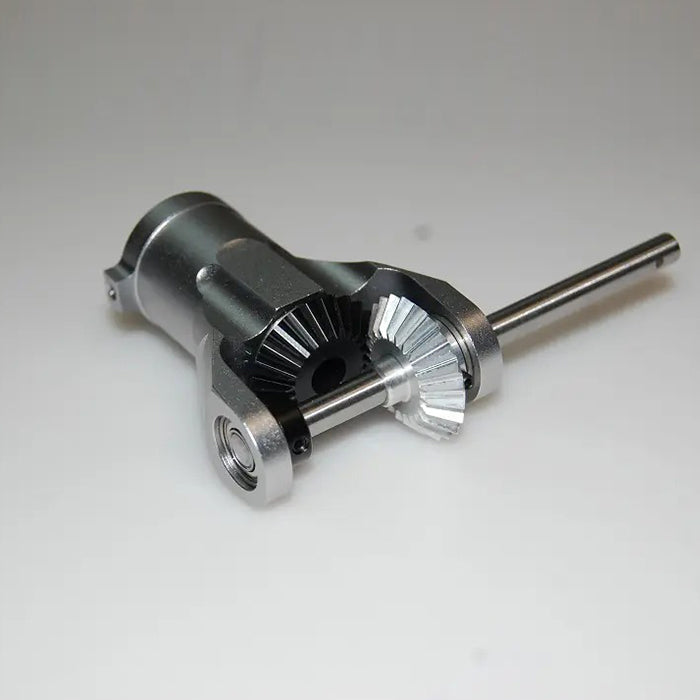

  • CNC aluminum “open” gearbox
  • CNC machined tail gears made from aluminum and POM
  • Aluminum 22mm tail boom
  • Positive control system
  • Hardened tail rotor output shaft
  • High precise tail slider
  • Carbon/Aluminum boom supports
Canopy:
  • High Visibility Painted Epoxy-Glass Canopy

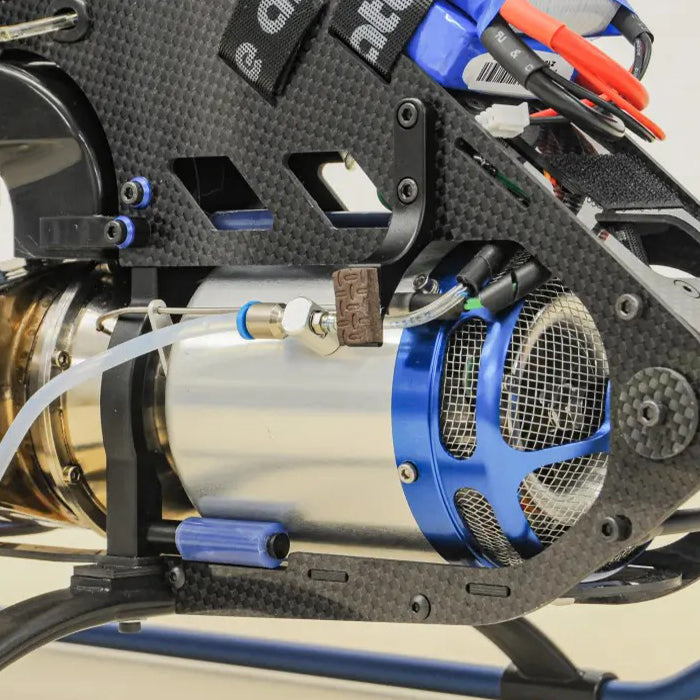

Turbine Engine:

The kit does NOT INCLUDE the Engine, Rotorblades, Servos, FBL System, Battery, Wiring, Switch, any other accessories, or any other components which are maybe seen in the pictures of the helicopter.

Type:

Helicopter Kit

Vendor:

Miniature Aircraft

SKU:

MA1035-2

Weight:

22.0 lb


Product Spare Parts


Electronics

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
D
Dustin B.
Excellent quality

Great machine!!!

M
Mark C.

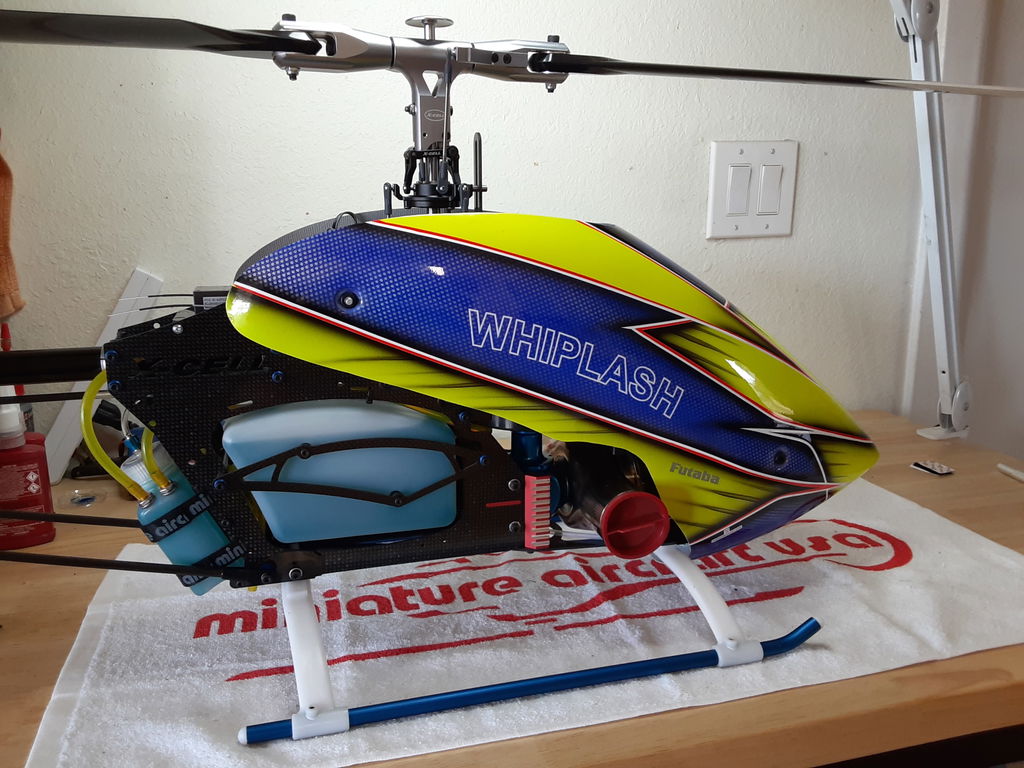

Turbine Whiplash
