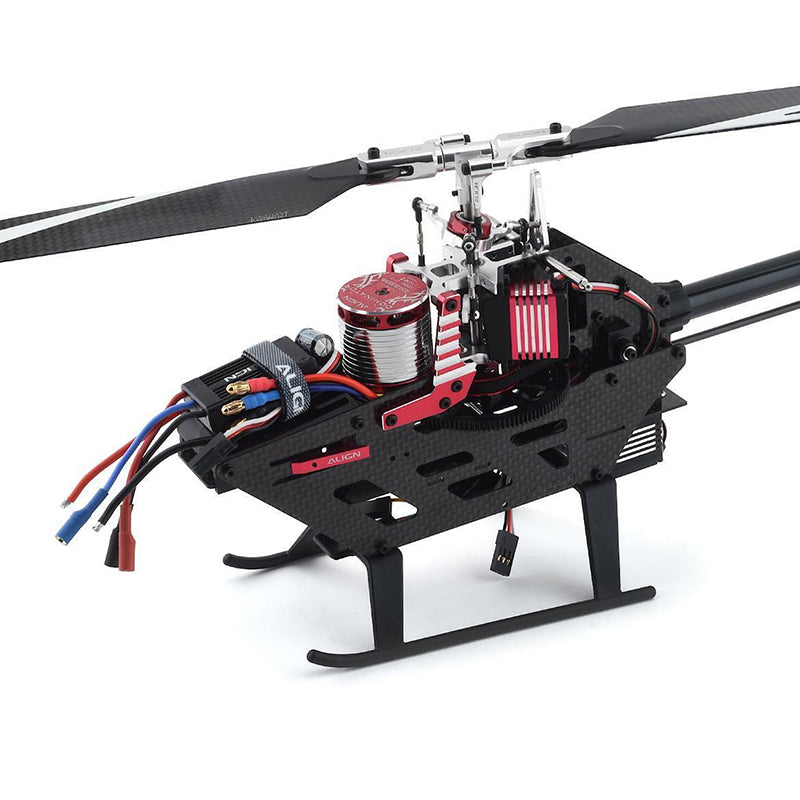

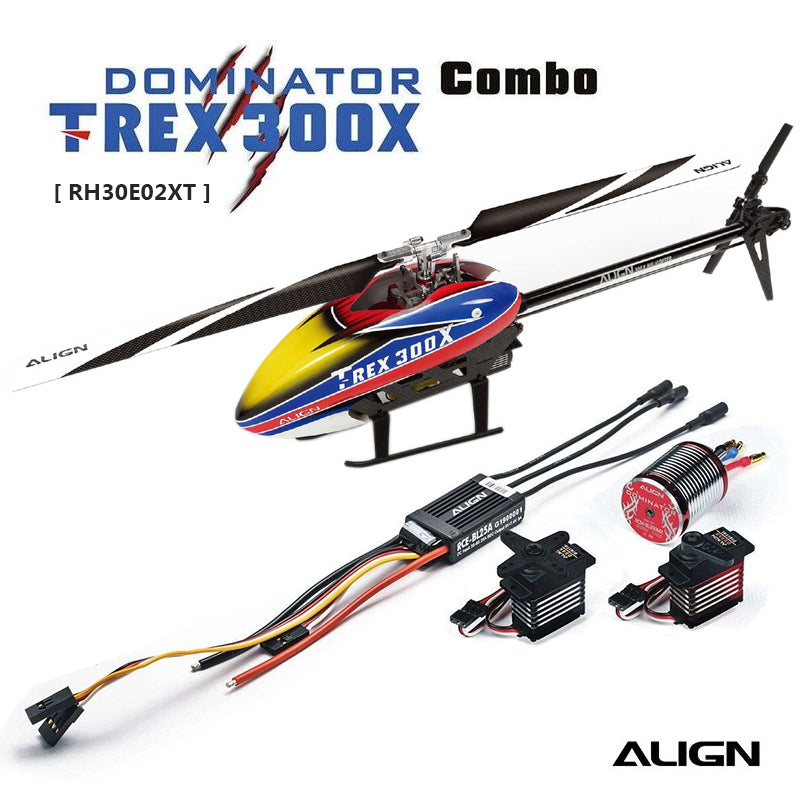

T-REX 300X Combo (w/o radio, gyro, battery and charger)
Same feature like new T-REX 300X S.C. RTF that is designed for both beginners and 3D pilots, small but attractive. All-in-1 package adopts for belt drive system and 3S battery.
All the best and optimal feature of T-REX 300X Combo model are here:
- DFC Flybarless Rotor Head with 230 main blades
- Engineered Narrow Body Design → Decreases gear abrasion and machine deformation
- DS450/DS455 Digital Servo
- RCE-BL25A Brushless ESC & 300MX Motor (3700KV/2216)
Standard Equipment
●T-REX 300X DOMINATOR Kits Set x 1 set●230 Carbon Fiber Blades x 1 set
●50 Tail Blade x 1 set
●RCE-BL25A 25 Brushless ESC x 1 set
●300MX Brushless Motor(3700KV/2216) x 1
●DS450 Digital servo x 3
●DS455 Digital servo x 1
T-REX 300X Specification
●Length: 476mm●Height: 158mm
●Width: 88mm
●Main Blade Length: 230mm
●Main Rotor Diameter: 525mm
●Tail Rotor Diameter: 143mm
●Motor Pinion Gear: 14T
●Main Drive Gear: 115T
●Main Drive Pulley: 40T
●Tail Drive Gear: 13T
●Drive Gear Ratio: 8.21:1:3.08
●Weight(w/o battery): 418g
Equipment Required for Assembly
●Dial Pitch Gauge or Digital Pitch Gauge●Swashplate Leveler
●MiniGRS Flybarless System x 1 set
●A10 Radio Control System Combo x 1 set
●MiniA.BUS Receiver x 1
●Balance Charger RCC-3SX x 1 set
●3S1P 11.1V 1300mAh/30C x 1
| Vendor: | Align |
| SKU: | RH30E02XT |
| Barcode: | 4713413716111 |
| Availability: | In Stock |
| Product Type: | Helicopter Kit |
| Weight: | 3.0 lb |
-
