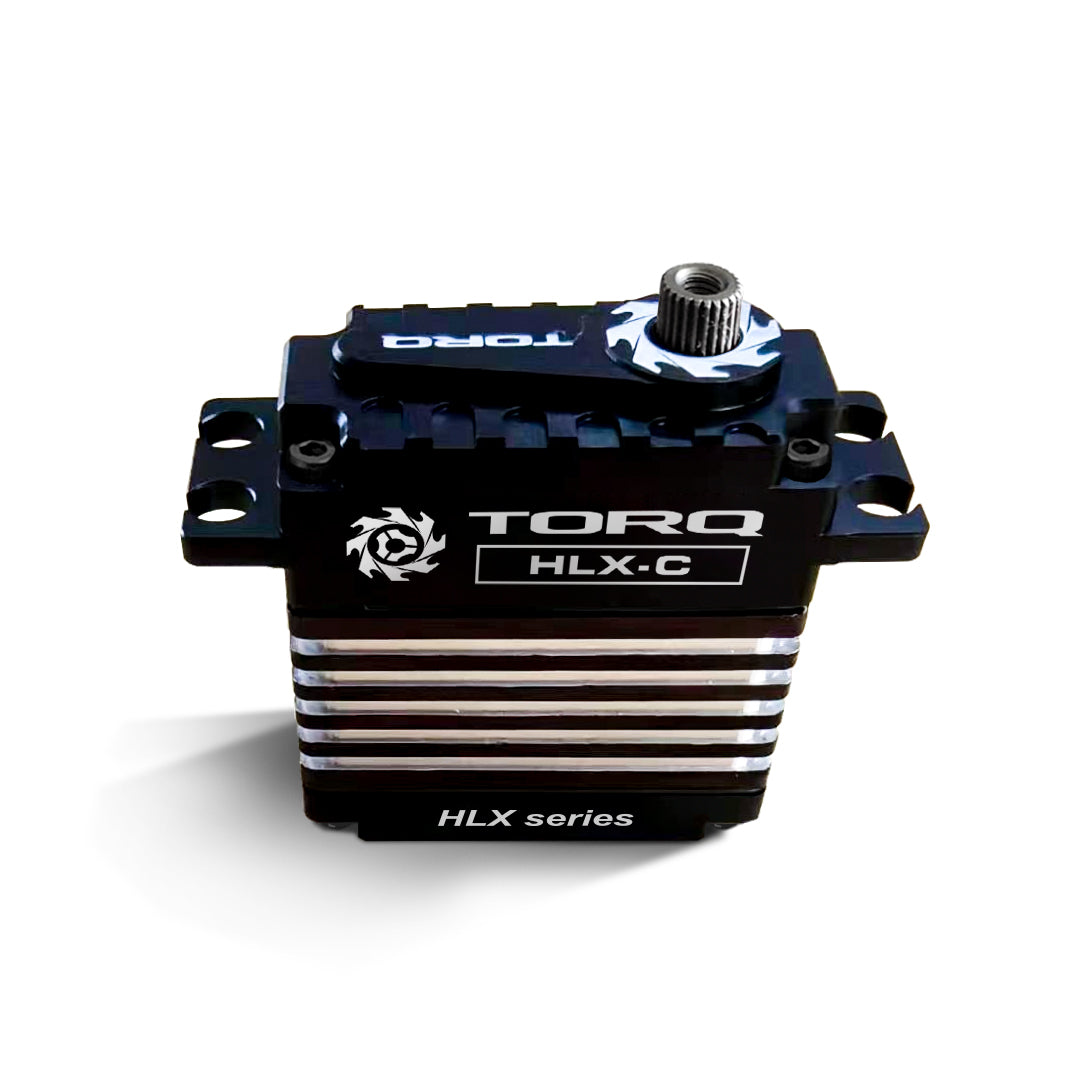

Torq HLX Black Edition Fullsize Cyclic Servo
$159.00
$0.00( / )
Features: - Using the newest Hall Sensor Technology- Incredible Levels of Speed & Performance- Ultra Precise, High Resolution Control- Fully New Design Steel Gear Train for Maximum Strength- 8.4V High Voltage Ready- Optimized for Heli, Airplane & Jet Aircraft- 6 Ball Bearings Construction Speed: 0.07 sec / 60° @ 8.2V0.09 sec...
Features:
- Using the newest Hall Sensor Technology
- Incredible Levels of Speed & Performance
- Ultra Precise, High Resolution Control
- Fully New Design Steel Gear Train for Maximum Strength
- 8.4V High Voltage Ready
- Optimized for Heli, Airplane & Jet Aircraft
- 6 Ball Bearings Construction
Speed:
0.07 sec / 60° @ 8.2V
0.09 sec / 60° @ 7.4V
0.11 sec / 60° @ 6.0V
Torque:
35Kg.cm / 486,05 oz in. @ 8.2V
30Kg.cm / 416,62 oz in. @ 7.4V
24Kg.cm / 333,29 oz. in. @ 6.0V
Specifications:
Motor Type: Brushless
Servo Arm Type: Futaba
Working Frequency: 1520us / 333Hz or 760us / 560Hz (need the TBOX Program Card)
Weight: 80g
Dimensions: 40mm x 20mm x 40mm (LxWxH)
Voltage Range: 6.0V - 8.4V
Usage Note:
Servo Grommet is suggested use if you use our servo on Nitro Heli.
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
HLX-C-BE |
| Weight: |
0.3 lb |
