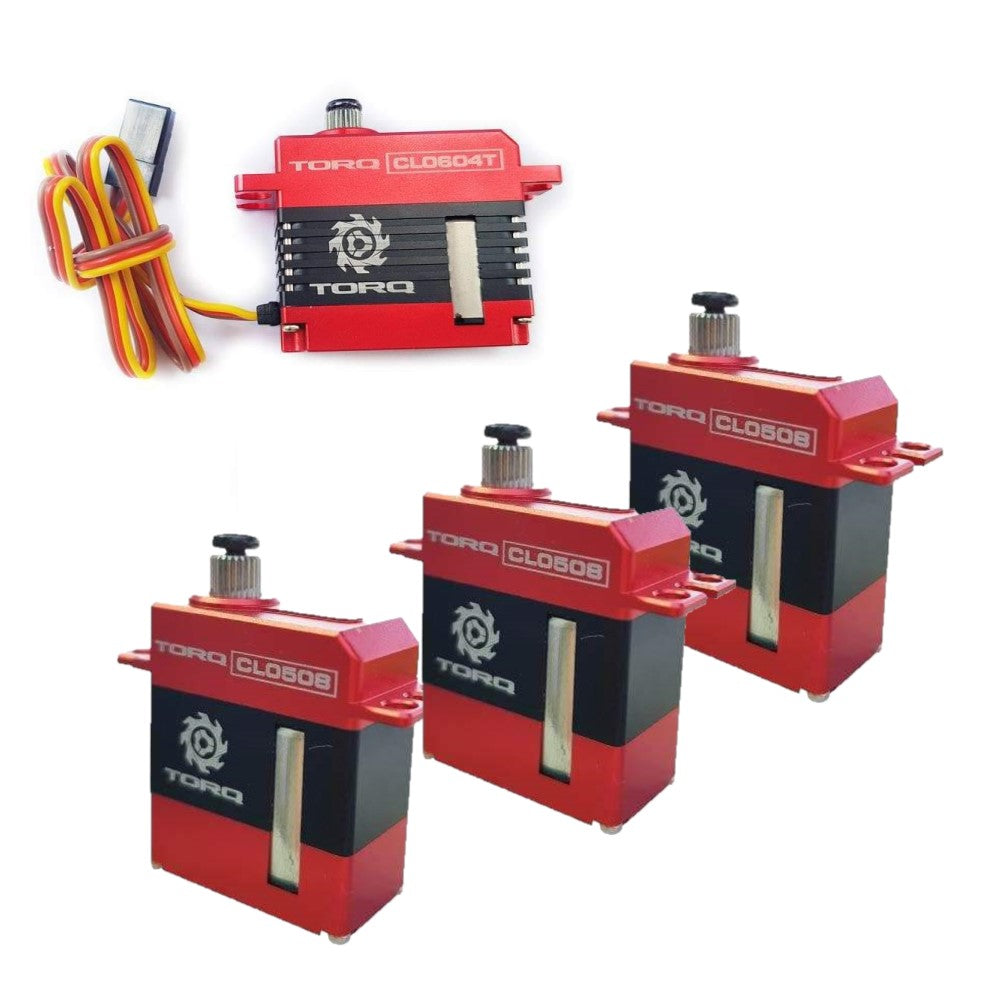

TORQ CL0508 Micro Cyclic & CL0604T Mini Tail Servo Combo

Combo includes:

• CL0508 (TORQ CL0508 Micro HV Servo) * 3pcs
• CL0604T (TORQ CL0604T Mini HV Rudder Helicopter Servo) * 1pcs

Recommended for helicopter sized 380-420 (main blade length: 380-420mm)

CL0508 (TORQ CL0508 Micro HV Servo)

Features:

- Engineered for High Performance Aircraft Extremes
- Specifically Designed for Helicopter, Airplane or Jet Based Applications
- Massive Levels of Torque & Speed
- Ultra Precise, High Resolution Precision
- Coreless Motor Design for Optimized High Torque Output
- Fully Replaceable Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via 6061 Aircraft Aluminum Case
- 8.4V High Voltage Ready
- Dual Ball Bearing Design

Torque:

6.20Kg.cm (86.10 oz. in.) @ 8.4V
5.20Kg.cm (72.21 oz. in.) @ 7.4V
4.20Kg.cm (58.32 oz. in) @ 6.0V

Transit Speed:

0.07 sec. @ 8.4V
0.08 sec. @ 7.4V
0.09 sec. @ 6.0V

Specifications:

Dimensions: 23x12x27.5mm (LxWxH)
Weight: 20g
Operating Voltage: 4.8V - 8.4V DC
Working Pulse Width / Frequency: 1520us / 333Hz  or  760us / 560Hz (need the TBOX Program Card)

CL0604T (TORQ CL0604T Mini HV Rudder Helicopter Servo)

Features:

- Dedicated Helicopter Rudder Servo
- Incredible Levels of Speed & Performance
- Ultra Precise, High Resolution Control
- Coreless Motor Design for Peak Torque Demand
- Fully Replaceable Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via 6061 Finned Aluminum Case
- 8.4V High Voltage Ready
- Optimized for High Demand Rudder Control
- Dual Ball Bearing Construction

Speed:

0.04 sec / 60° @ 8.4V
0.06 sec / 60° @ 6.0V

Torque:

6Kg.cm / 83.32 oz. in. @ 8.4V
4Kg.cm / 55.54 oz. in. @ 6.0V

Specifications:

Motor Type: Coreless Motor
Servo Arm Type: Futaba
Working Pulse Width / Frequency: 760us / 560Hz
Weight: 40g
Dimensions: 35.5mm x 15mm x 32.7mm (LxWxH)
Voltage Range: 6.0V - 8.4V

Usage Note:

For helicopter rudder usage only. Please note that the TORQ CL0604T Mini HV Rudder Helicopter Servo servo must be connected to a flybarless flight controller that is set at a 760us pulse width setting for proper functionality. Due to the 760us pulse width, if the servo is connected to a receiver or servo tester, the servo will not properly function due to these applications that use a 1520us pulse width.
Servo Grommet is suggested use if you use our servo on Nitro Heli.
