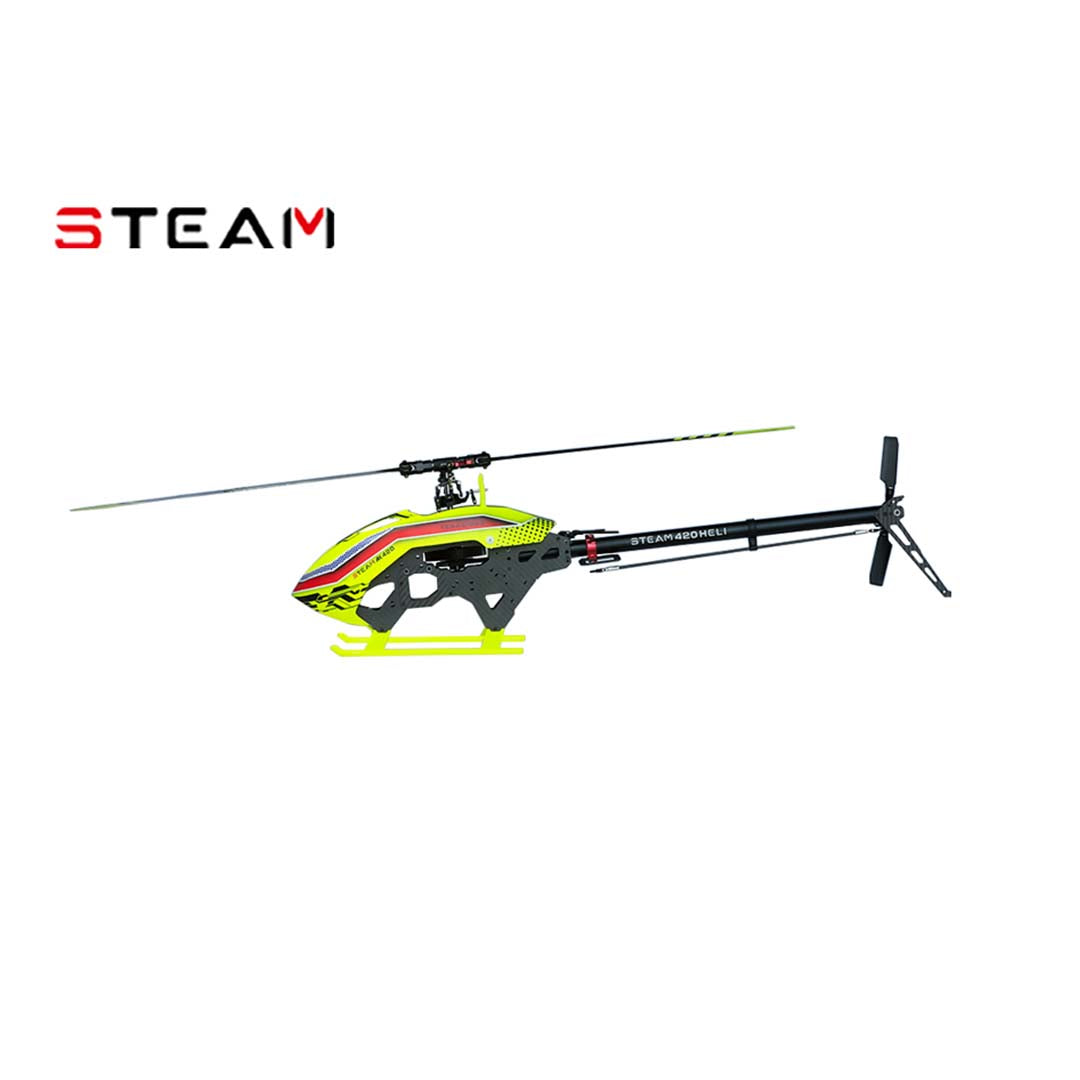

SteamRC AK420 PRO Helicopter Kit (with Blades)

Vendor: SteamRC
|
SKU: AK420KJ
Availability: In Stock

Earn 249 Reward Points when you buy this item.

$249.00
$249.00
The order quantity exceeds the stock!
SteamRC AK420 PRO Helicopter Kit (with Blades)

SteamRC AK420 PRO Helicopter Kit (with Blades)

$249.00

SteamRC AK420 PRO Helicopter Kit (with Blades)

$249.00

Related Products

Package Includes:

  • AK420 Pro Helicopter Kit  x 1
  • Steam 420mm Main Blade Set x 1
  • Steam 71mm Plastic Tail Blades Set x 1


Specifications:

  • Main Blade Length: 380-420mm
  • Tail Blade length:56-74mm
  • Cyclic Servos: Micro size
  • Tail Servo: Mini size
  • Pinion:12T M1
  • Main Gear:75T M1
  • Front Tail Pulley:81T
  • Tail Pulley:20T
  • Recommended speed controller:6S 60-85A
  • Recommended battery: 6S 2400-2800mAh
  • Maximum battery size:50x38x115mm
  • Recommended Battery Weight: 350g
  • Recommended motor series:3120-3220
  • Recommended motor outer diameter:≤43mm
  • Recommended motor KV: 950-1000Kv
  • Weight (No power system) Approx:~650g
  • (Include blade and canopy) Approx:~750g


Manual: Download








Vendor: SteamRC
SKU: AK420KJ
Barcode: 769923275949
Availability: In Stock
Product Type: Helicopter Kit
Weight: 17.0 lb
  • Steam  AK420 Carbon Plastic Tail Blade/74mm/1 Pack
    ETA: 02/25/2025

    Steam AK420 Carbon Plastic Tail Blade/74mm/1 Pack

    SKU : TS74-M2.5-3MM
    Included: 1 x Steam AK420 Carbon Plastic Tail Blade/74mm/1 Pack Used for: AK420 Pro Helicopter Kit
    $1.33
    $1.33
    ETA: 02/25/2025
  • AK420 Swashplate

    AK420 Swashplate

    SKU : AK4222
    Included: 1 x AK420 Swashplate Used for: AK420 Pro Helicopter Kit
    $18.48
    $18.48
  • AK420 Pinion Gear 13T

    AK420 Pinion Gear 13T

    SKU : AK4221
    Included: 1set x AK420 Pinion Gear 13T Used for: AK420 Pro Helicopter Kit
    $4.14
    $4.14
  • AK420 Tail Gear Box Bearing

    AK420 Tail Gear Box Bearing

    SKU : AK4087
    Included: 1set x AK420 Tail Gear Box Bearing Used for: AK420 Pro Helicopter Kit
    $1.18
    $1.18
  • AeroX - Steam AK420Pro Aluminum Motor Frame Reinforcement Plate SetAeroX - Steam AK420Pro Aluminum Motor Frame Reinforcement Plate Set

    AeroX - Steam AK420Pro Aluminum Motor Frame Reinforcement Plate Set

    SKU : AX-AK420-MFR
    Package included: 1 pair * AeroX AK420Pro Aluminum Motor Frame Reinforcement Plate Use for: Steam-RC AK420Pro Helicopter
    $7.99
    $7.99
  • Steam AK420 Plastic Tail Blade/74mm/M2.5/2.6

    Steam AK420 Plastic Tail Blade/74mm/M2.5/2.6

    SKU : ZC74-M2.5/2.6
    Included: 1 x Steam AK420 Plastic Tail Blade/74mm/M2.5/2.6 with blade washers Used for: AK420 Pro Helicopter Kit
    $0.99
    $0.69
    $0.99
  • Steam AK420 Plastic servo arm/25T/Black

    Steam AK420 Plastic servo arm/25T/Black

    SKU : AK4064H
    Included: 1 set Steam AK420 Plastic servo arm/25T/Black Used for: Steam AK420 Helicopter kit
    $1.77
    $1.77
  • Steam AK420 25T Fragile Servo Arm Ring 6Pcs

    Steam AK420 25T Fragile Servo Arm Ring 6Pcs

    SKU : MK6016
    Included: 1 set Steam AK420 25T Fragile Servo Arm Ring 6Pcs  Used for: Steam AK420 Helicopter kit
    $2.21
    $2.21
  • Steam AK420 M2.5/4.75 Linkage Ball

    Steam AK420 M2.5/4.75 Linkage Ball

    SKU : AK4220
    Included: 1 set Steam AK420 M2.5/4.75 Linkage Ball Used with: MUST WORK WITH AK4220
    $1.33
    $1.33
  • Steam 25T M2.5 Tail Servo Horn 10/14MM

    Steam 25T M2.5 Tail Servo Horn 10/14MM

    SKU : AK4215
    Included: 1 set Steam 25T M2.5 Tail Servo Horn 10/14MM  Used with: MUST WORK WITH AK4220
    $5.17
    $5.17
  • AK420 Metal Tail Double Pull Assemble

    AK420 Metal Tail Double Pull Assemble

    SKU : AK4218
    Included: 1set x AK420 Metal Tail Double Pull Assemble Used for: AK420 Pro Helicopter Kit
    $11.09
    $11.09
  • SteamRC AK420 3D-Printed XT60 ESC Connector HolderSteamRC AK420 3D-Printed XT60 ESC Connector Holder

    SteamRC AK420 3D-Printed XT60 ESC Connector Holder

    SKU : AK420UG-XT60
    A useful part that will help you secure the ESC's XT60 connector under the battery tray, much easier to connect the battery. Included: 1 x 3D-Printed XT60 ESC Connector Holder (color randomly) Used for: AK420 Pro Helicopter Kit
    $1.49
    $1.49
  • iKON 2 Flybarless System w/o Bluetooth - HeliDirect

    iKON 2 Flybarless System w/o Bluetooth (Micro USB Cable Not Included)

    SKU : iKON2001
    NOTE:    IKON2 works with SPM4651T.  You will need to buy an SPMA3066 adapter to connect to the IKON2. (required also for RX firmware updates and to activate the warranty by registering the receiver on the My Spektrum website). If you want to make an adaptor...
    $161.99
    $161.99
  • TORQ CL0508 Micro HV Servo - HeliDirectTORQ CL0508 Micro HV Servo - HeliDirect

    TORQ CL0508 Micro HV Servo

    SKU : CL0508
    TORQ CL0508 Micro HV Servo - Power, Performance & Pure Domination. Optimized for second to none power & performance, TORQ brings forth a micro servo that is ready & able to push the boundaries of the micro servo world.Designed specifically for high torque / high...
    $40.00
    $0.00
    $40.00
  • TORQ CL0604T Mini HV Rudder Helicopter Servo - HeliDirectTORQ CL0604T Mini HV Rudder Helicopter Servo - HeliDirect

    TORQ CL0604T Mini HV Rudder Helicopter Servo

    SKU : CL0604T
      TORQ CL0604T Mini HV Rudder Helicopter Servo - Unworldly Precision & Control.Explore new worlds of precision & control with the TORQ CL0604T Mini HV Rudder Helicopter Servo. Specifically designed for the intense demand of helicopter rudder control, the TORQ CL0604T Mini HV Rudder Helicopter...
    $73.00
    $0.00
    $73.00
  • KST DS215MG V8.0 Digital Metal Gear Micro Servo - HeliDirectKST DS215MG V8.0 Digital Metal Gear Micro Servo - HeliDirect

    KST DS215MG V8.0 Digital Metal Gear Micro Servo

    SKU : DS215MG
    DS215MG HV servo is an amazingly powerful and fast metal cased high voltage servo designed to be run directly from a 2S LiPo without needing a regulator. With 3.7 kg.cm of torque and a rotational velocity of 0.05 sec/60° it combines exceptional power with...
    $35.00
    $35.00
  • TORQ CL0306T Micro HV Rudder Helicopter Servo - HeliDirectTORQ CL0306T Micro HV Rudder Helicopter Servo - HeliDirect

    TORQ CL0306T Micro HV Rudder Helicopter Servo

    SKU : CL0306T
    TORQ CL0306T Micro HV Rudder Helicopter Servo TORQ CL0306T Micro HV Rudder Helicopter Servo - Unworldly Precision & Control.Explore new worlds of precision & control with the TORQ CL0306T Micro HV Rudder Helicopter Servo. Specifically designed for the intense demand of helicopter rudder control, the TORQ...
    $40.00
    $0.00
    $40.00
  • RadioMaster Nexus Helicopter Flybarless Control Unit - RotorFlight - HeliDirectRadioMaster Nexus Helicopter Flybarless Control Unit - RotorFlight - HeliDirect

    RadioMaster Nexus Helicopter Flybarless Control Unit - RotorFlight

    SKU : HP0157.0087
    The NEXUS Flybarless (FBL) control unit has been designed from the ground up based on the Rotorflight 2.0 reference design. All aspects of the NEXUS have been planned and tested for optimum performance and compatibility, ensuring the best out-of-the-box Rotorflight experience on the market...
    $79.99
    $79.99
  • KST DS565X Mini HV Tail Servo For 450-500 Helicopters - HeliDirectKST DS565X Mini HV Tail Servo For 450-500 Helicopters - HeliDirect

    KST DS565X Mini HV Tail Servo For 450-500 Helicopters

    SKU : DS565X
    KST DS565X Mini Size Digital Servo is a great choice for helicopters ranging from 325mm-425mm rotor blade size requiring mini servos on the tail rotor! It's critical to ensure your gyro has the capability to operate 760uS Tail Servos, ensuring that the KST 565X...
    $65.00
    $65.00
  • TORQ BLS0705M Mini HV Brushless Cyclic/Rudder Servo - HeliDirectTORQ BLS0705M Mini HV Brushless Cyclic/Rudder Servo - HeliDirect

    TORQ BLS0705M Mini HV Brushless Cyclic/Rudder Servo

    SKU : BLS0705M
    This servo is basically a Mini Rudder Servo that can handle up to 700-800 Heli size, but if you have FBL that can use with 760us cyclic servo, you can also use this servo as cyclic servo for 550-600 size. Features:- Brushless Motor Technology...
    $95.00
    $0.00
    $95.00
  • Spirit GT Flybarless System - HeliDirectSpirit GT Flybarless System - HeliDirect

    Spirit GT Flybarless System

    SKU : SPIRIT-GT
    Outstanding ARM M7 processor M7 performance-line processor is truly unbelievable! It is 3x faster than M4 and brings amazing features. This adds free room for any possible math operation allowing to calculate anything imaginable the unit could ever need. It packs native telemetry support...
    $220.99
    $220.99
  • Torq BLS0808 Brushless Micro HV Cyclic Servo - HeliDirectTorq BLS0808 Brushless Micro HV Cyclic Servo - HeliDirect

    Torq BLS0808 Brushless Micro HV Cyclic Servo

    SKU : BLS0808
    Torq BLS0808 Brushless Micro HV Cyclic Servo - Power, Performance & Pure Domination. Optimized for second to none power & performance, TORQ brings forth a BRUSHLESS micro servo that is ready & able to push the boundaries of the micro servo world.Designed specifically for high...
    $59.99
    $0.00
    $59.99
  • BavarianDEMON Cortex Pro - Aircraft (Fixed Wing / Airplane / Jet) - HeliDirect

    BavarianDEMON Cortex Pro - Aircraft (Fixed Wing / Airplane / Jet)

    SKU : BD-CORTEX-PRO
    GET THE PRO VERSION Since the first release, CORTEX combines a demonic and a happy-go-lucky flying enjoyment for the ambitioned RC pilot. High-quality, reliable, versatile, universally ready for operation – that’s what this extra class in 3-axis stabilization systems is known for a long...
    $330.00
    $330.00
  • KST X12-508 Micro Coreless HV Servo - HeliDirect

    KST X12-508 Micro Coreless HV Servo

    SKU : X12-508
    Includes: - Micro KST X12-508 Coreless servo x 1pc Use for: - Goblin 380/420 and other helicopter / airplanes / jets that use micro servos. Specification: Operating Voltage:DC4.8V-8.4V Size: 23*12*27.5mm Torque:  4.20Kg.cm@6.0V   5.20Kg.cm@7.4V   6.20Kg.cm@8.4V Speed:  0.09sec/60°@6.0V  0.08sec/60°@7.4V   0.07sec/60°@8.4V Weight: 20g Working Frequence: 1520us/333Hz,  900us-2100us
    $40.00
    $40.00

You may also like

Recently Viewed Products

Customer Reviews

Based on 8 reviews
63%
(5)
38%
(3)
0%
(0)
0%
(0)
0%
(0)

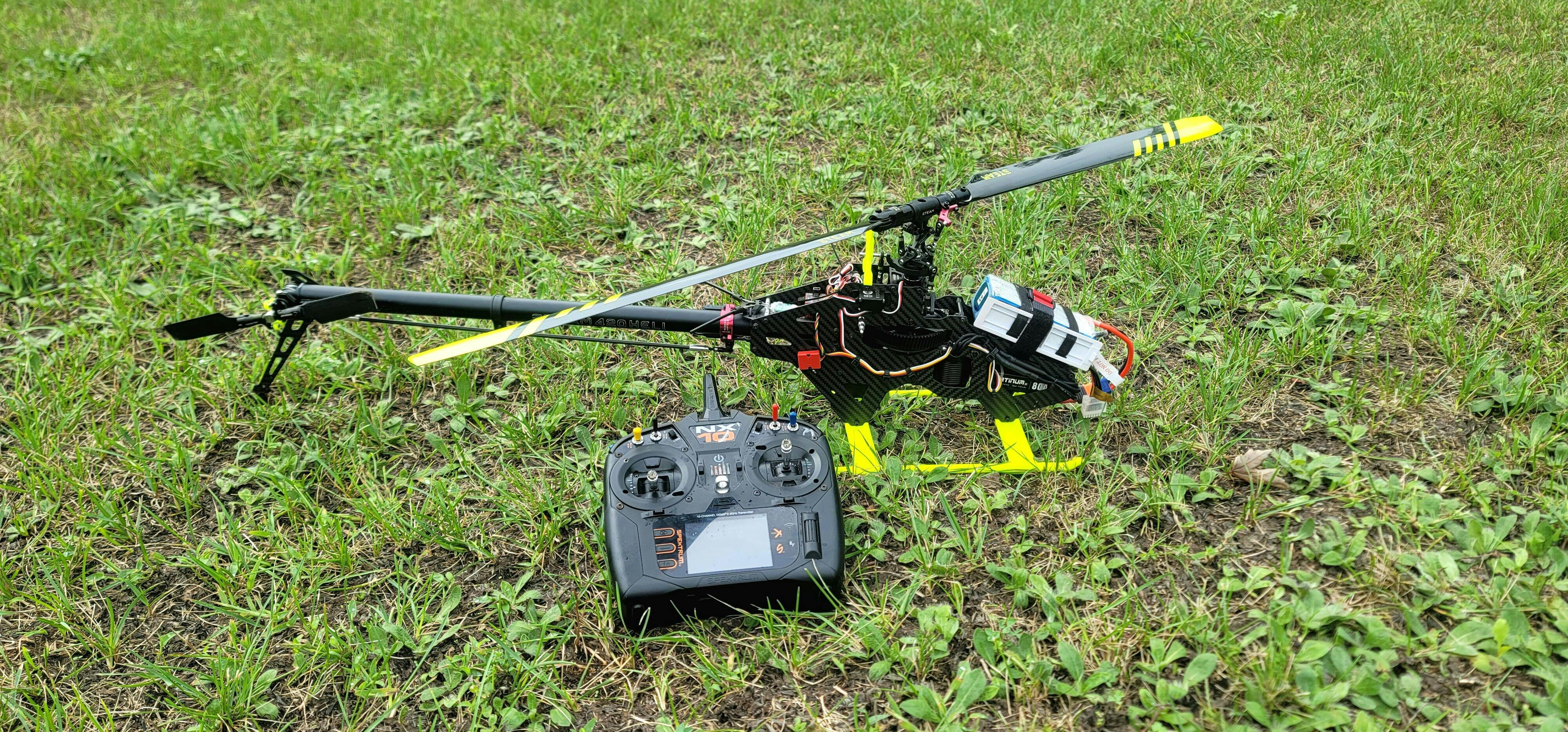

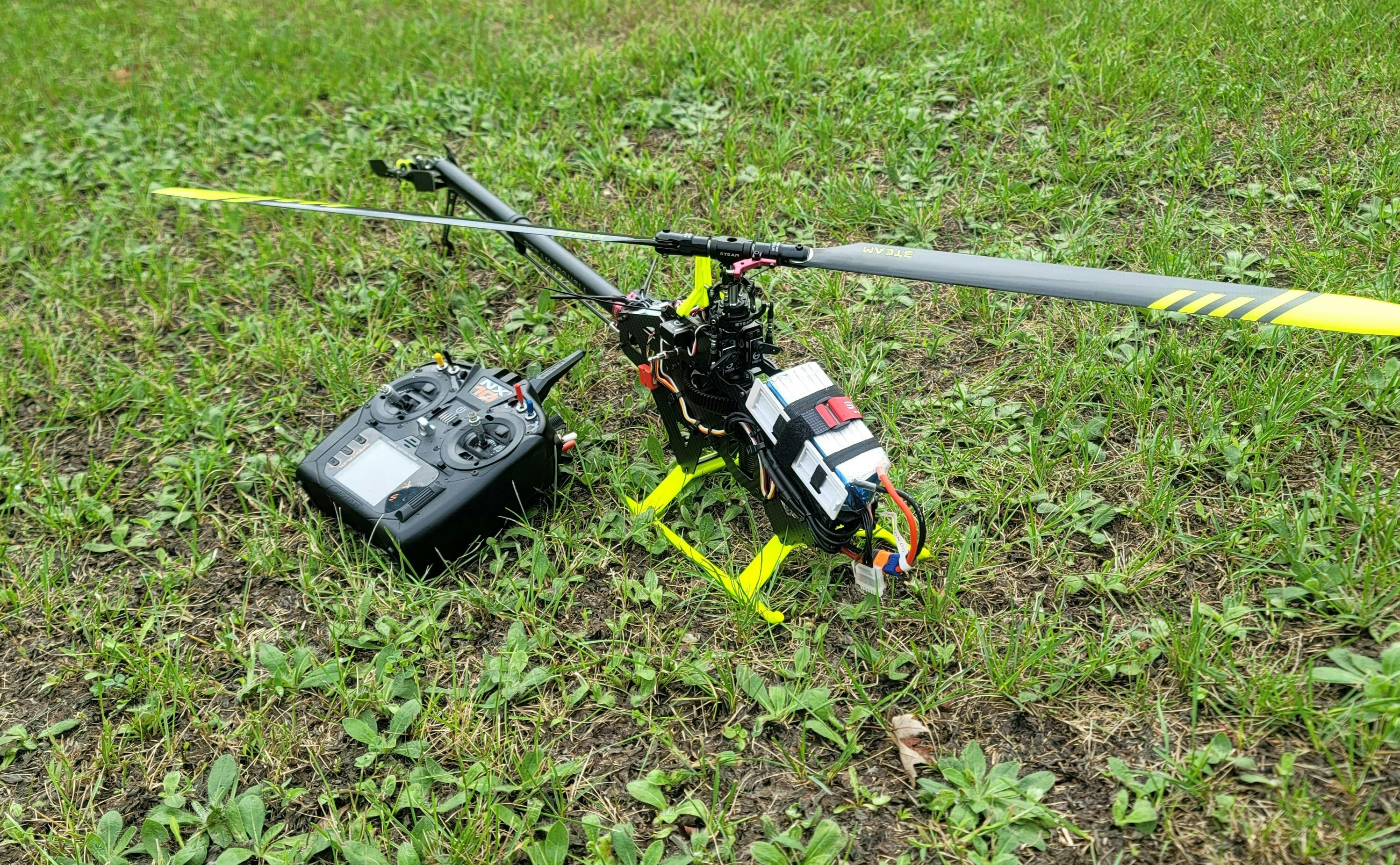

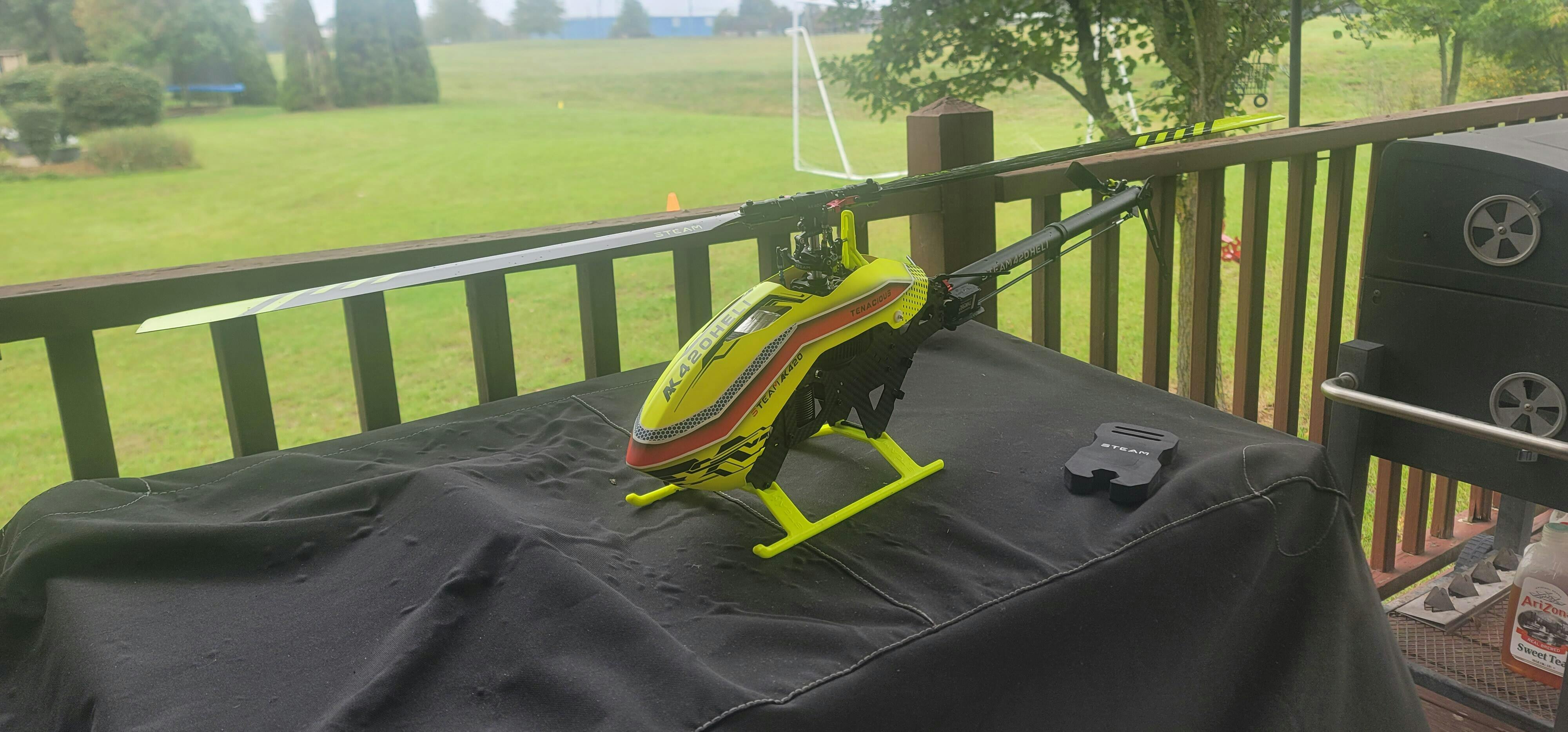

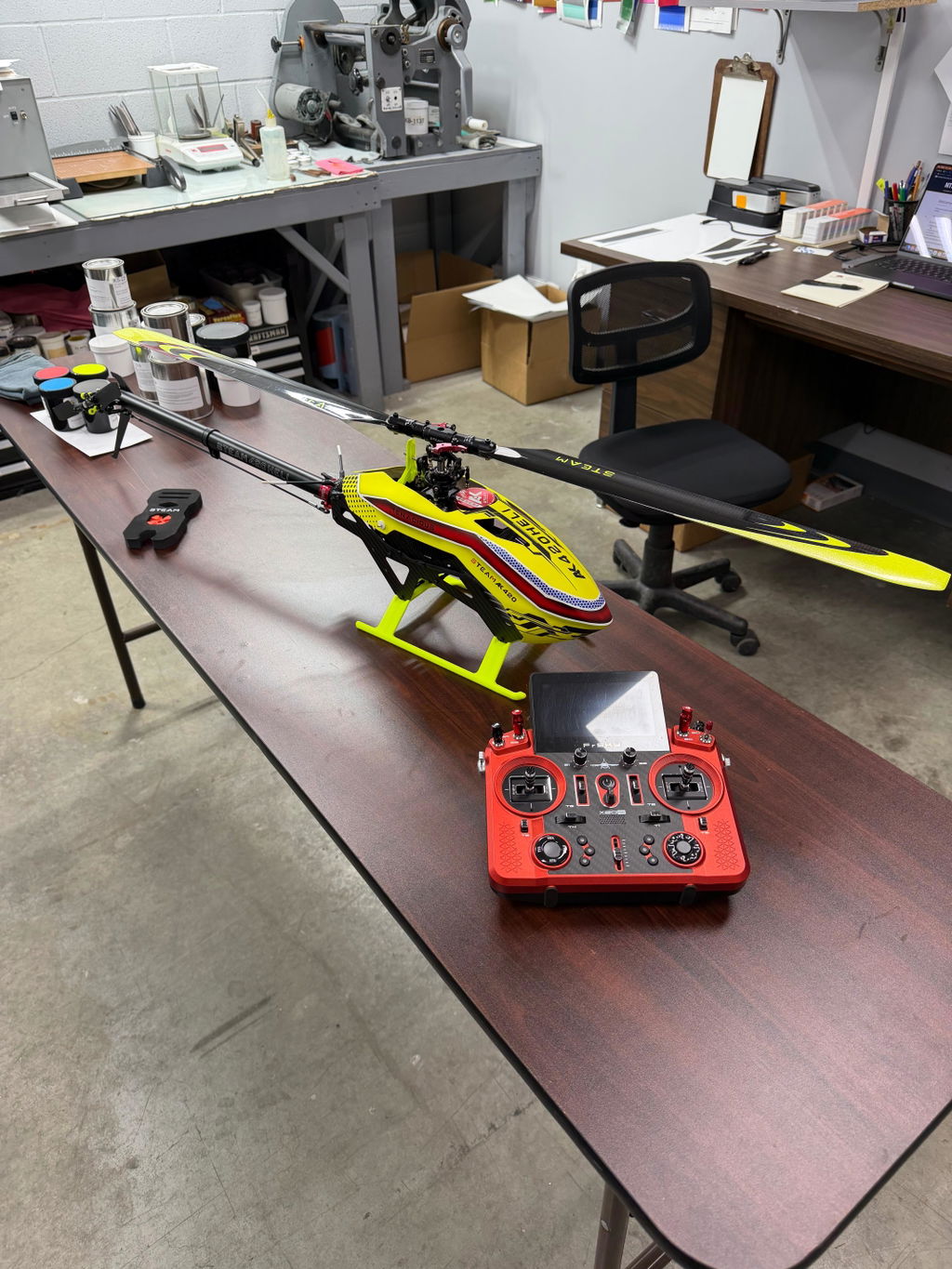

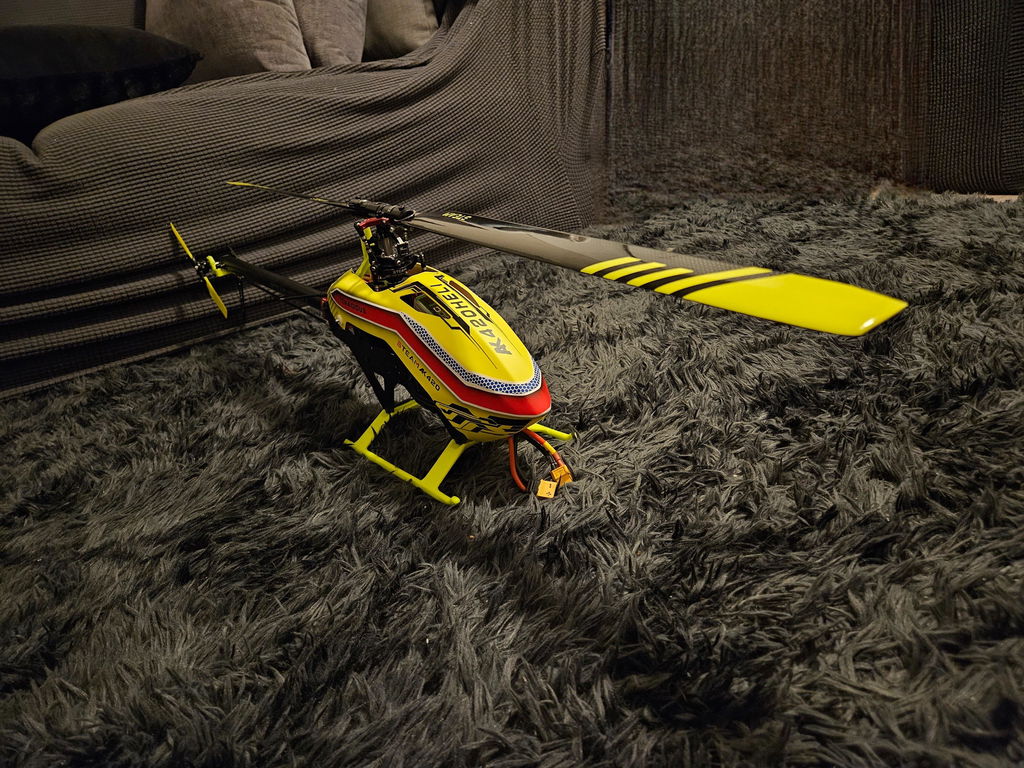

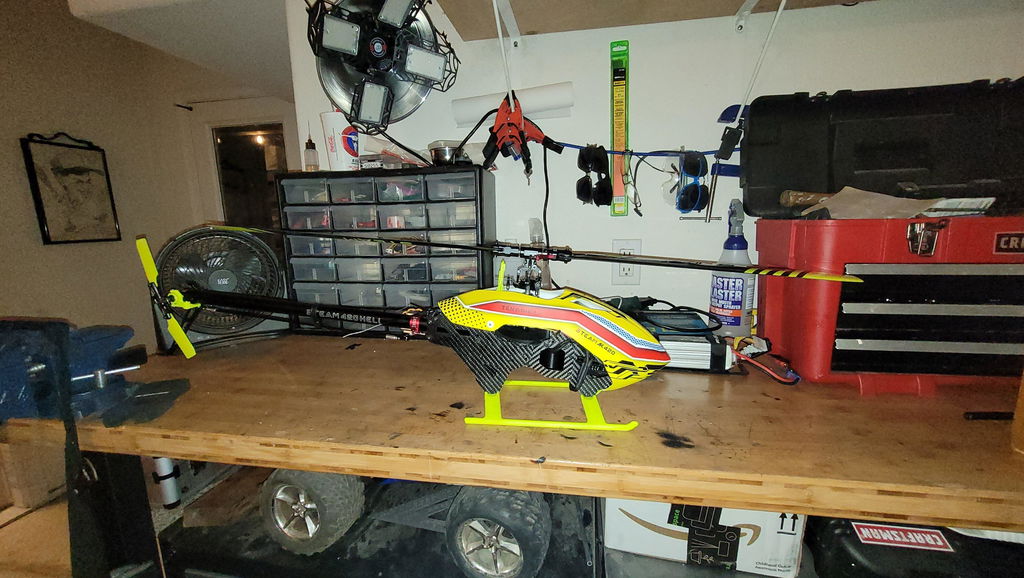

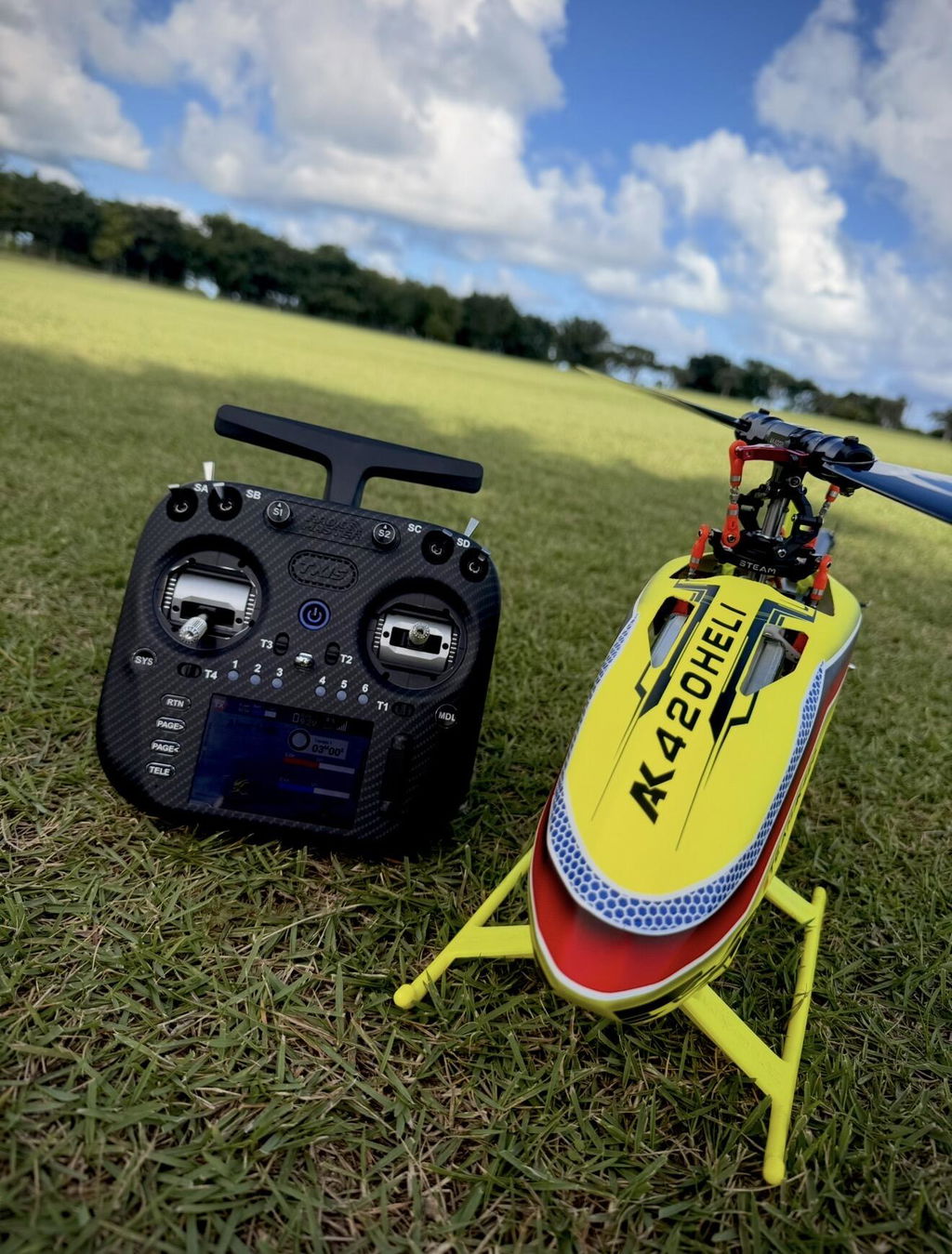

M
