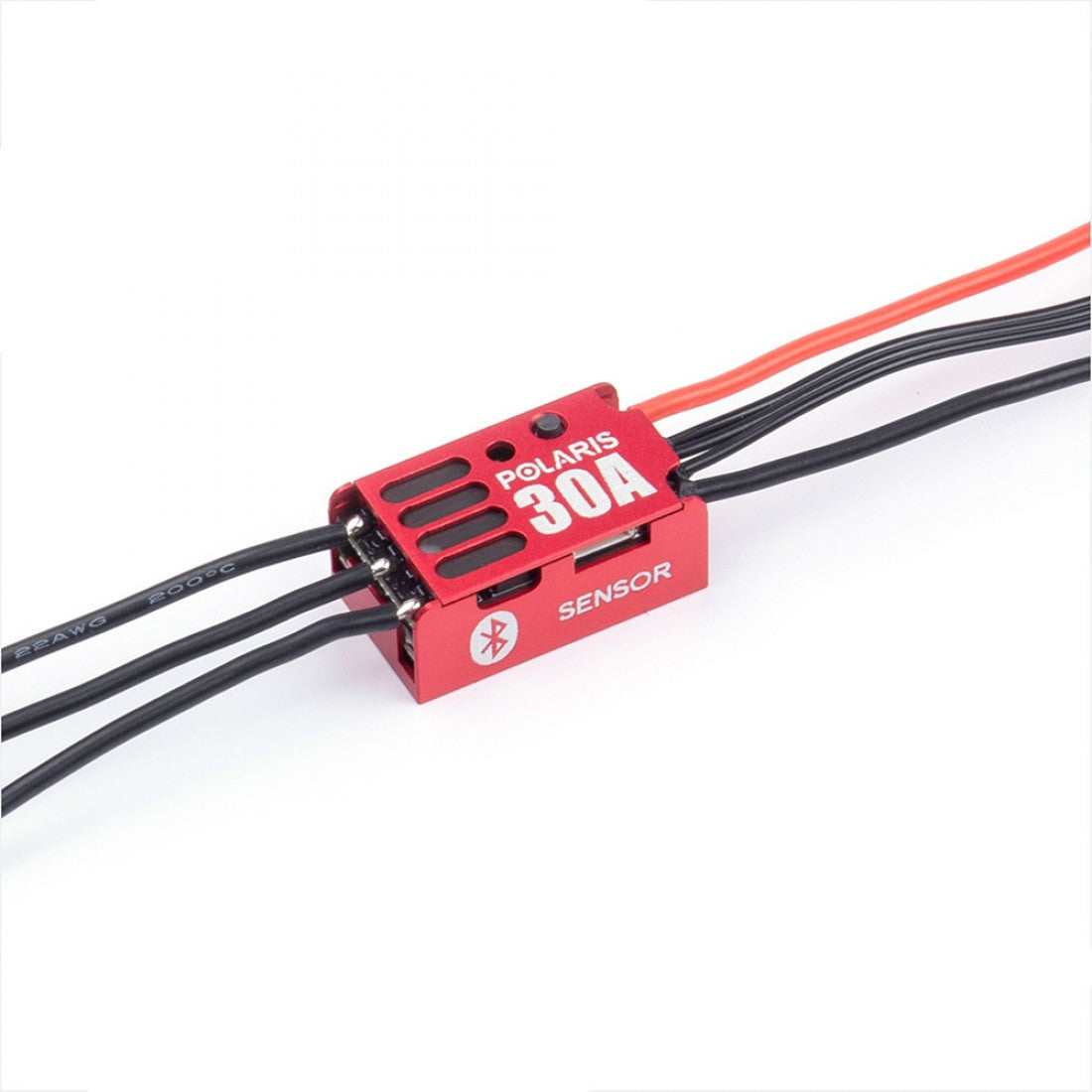

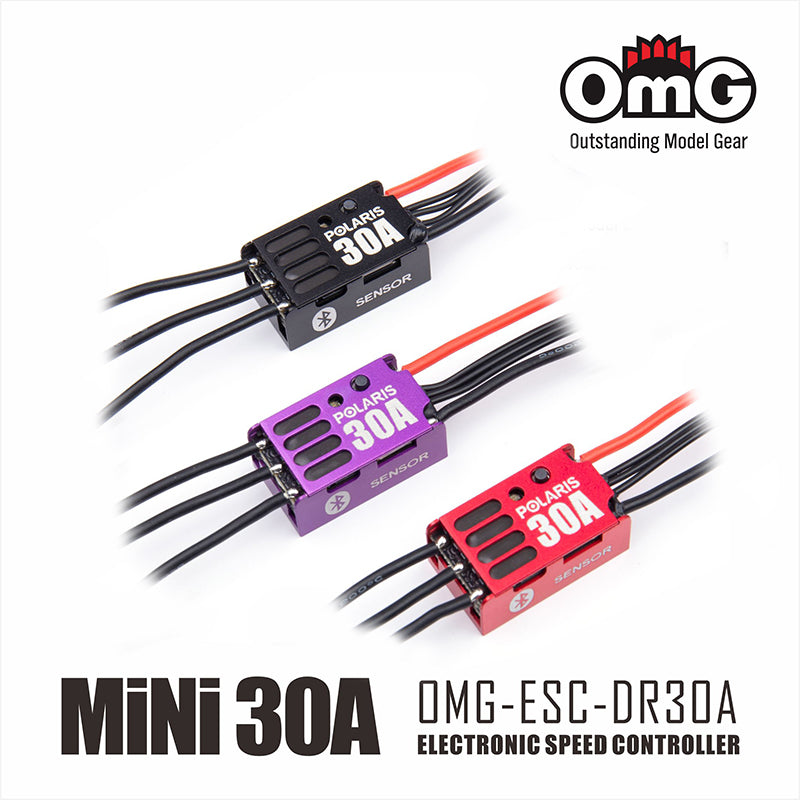

OMG POLARIS DR-30A Sensored Brushless ESC with Build-in (Red)

POLARIS DR-30A Sensored Brushless Electronic Speed Controller Car Applicable: 1/24th 1/27th 1/28th drifting and racing RC cars

ESC Programming Via: Mobile Phone APP( Apple & Android)

POLARIS DR-30A Sensored Brushless Electronic Speed Controller

(Parameters Tuning via Built-in Bluetooth)

Specifications:

Item No.OMG-POLARIS DR-30A

Continued Current:30A

Burst Current:80A

Input Voltage:2-3S

BEC Output:6.0V/2A

Size:(L*W*H):23.5x13.7X9.8mm

Weight:9.5g

ESC Programming Via: Mobile Phone APP( Apple & Android)

Firmware Upgrade:Supported

Waterproof:No

Car Applicable: 1/24th 1/27th 1/28th drifting and racing RC cars

Feature:

1.Full aluminum case and heat sink design, with highly efficient heat dissipation system.

2.Plenty of adjustable parameters allows adjusting the settings for most of racing, such as Modif ied , stock,zero timing, drifting etc.

3.32-bit microprocessor can support more powerful processing capability and more accurate motor output.

4.Enhanced throttle response, excellent acceleration, linearity and drive ability.

5.Multiple protection features: Low voltage cut-offprotection, over-heat protection and throttle signal loss protection.

6.Built-in Bluetooth allows programming the parameter settings and firmware upgrades via app (support real time programming,no need restart the esc).

7.Data logging for real-time maximum ESC temperature, motor RPM, Voltage and Adv. Timing and so on.

APP :

Android App downloading procedure

l.Scan   the or code to download the App ( the name of the app is ESC1) with   any   search   engine.

2.Click “ download ” “ install ”“Open”and   choose allow to all the pop-upquestions   to turn on

Location Services & Bluetooth on   your   phone, and   then click “Connect” toconnect   the ESC.

iPhone App downloading procedure

l.Search for   “ESC1 in   the App Store   or   scan   the   or   code   to download   and   install   the App.

2.Turn on Location Services & Bluetooth on your phone, open the   App / ESCI   and then click“Connect”   to connect the ESC
