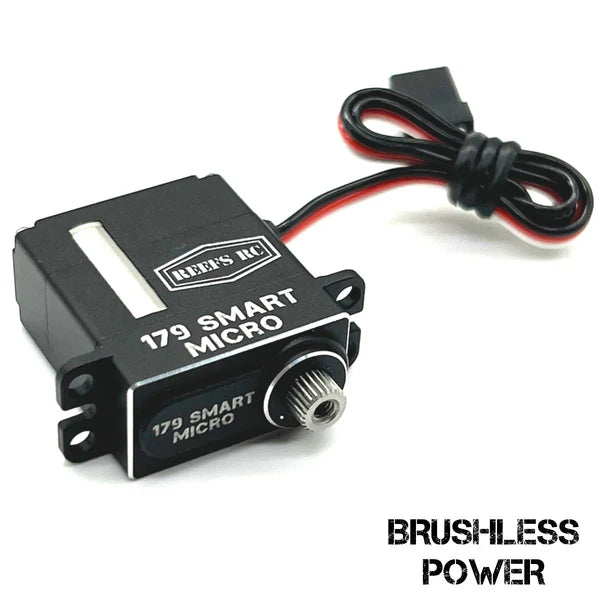

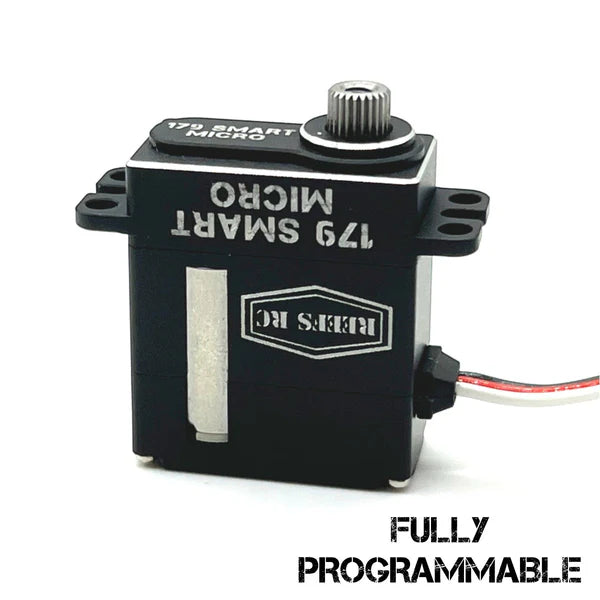

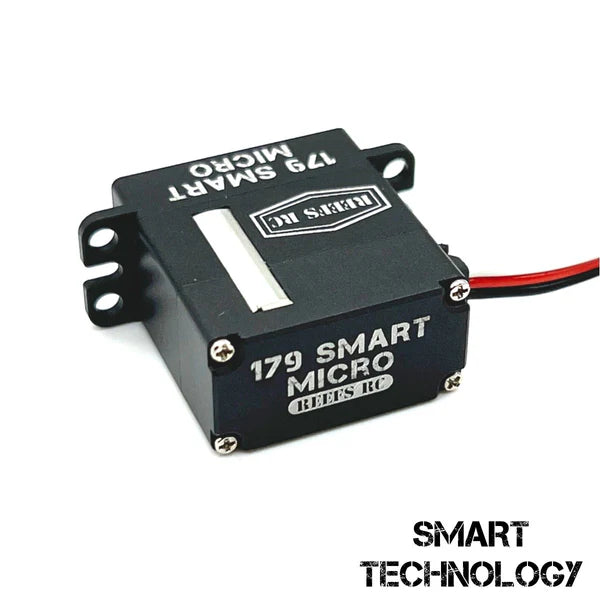

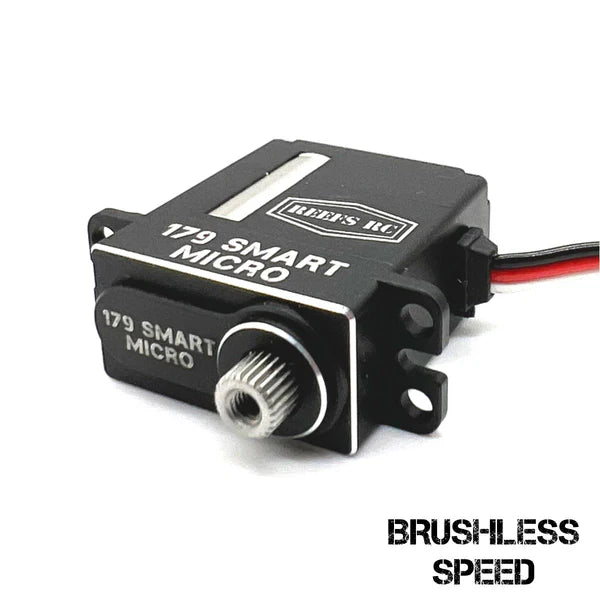

REEFS RC 179 Smart Brushless Micro Servo
$84.99
$0.00( / )
With up to 179 oz of torque, this brushless micro servo packs one heck of a punch. It's smart too, which allows you to program this servo for either standard servo or winch duty with our optional programmer. SPECIFICATIONS: High Torque High Speed BRUSHLESS Servo / Winch FULLY PROGRAMMABLE Magnetic Angle...
With up to 179 oz of torque, this brushless micro servo packs one heck of a punch. It's smart too, which allows you to program this servo for either standard servo or winch duty with our optional programmer.
SPECIFICATIONS:
- High Torque High Speed
- BRUSHLESS Servo / Winch FULLY PROGRAMMABLE
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- REEFS LINK required for Programming
- (Optional) Comes as Servo
- Voltage 6-8.4 / Internal: Metal & Steel Gears
- CNC Aluminum Casing / Bearing Type: 2BB
- Temp Rate: -15C°~ +70C
- Weight: .74oz / 21g

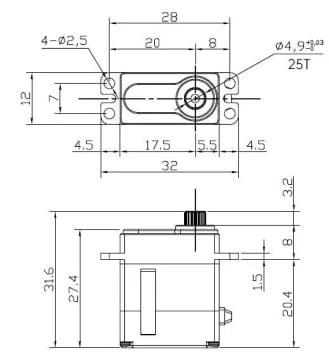

Dimension: (LWH)
- .90 x .47 x 1.08 in
- 23 x 12 x 27.5 mm
Torque:
- 135 oz @ 6.0v
- 159 oz @ 7.4v
- 179 oz @ 8.4v
Speed:
- .09 sec @ 6.0v
- .07 sec @ 7.4v
- .06 sec @ 8.4v
Spline: 25T Micro
Dead Band Width: 2μs
Unload Current:
- 150mA @ 4.8V
- 180mA @ 6.0V
- 240mA @ 7.4V
- 300mA @ 8.4V
Load Current:
- 1600mA @ 4.8V
- 2000mA @ 6.0V
- 2200mA @ 7.4V
- 2400mA @ 8.4V
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
REEFS129 |
| Weight: |
0.25 lb |
