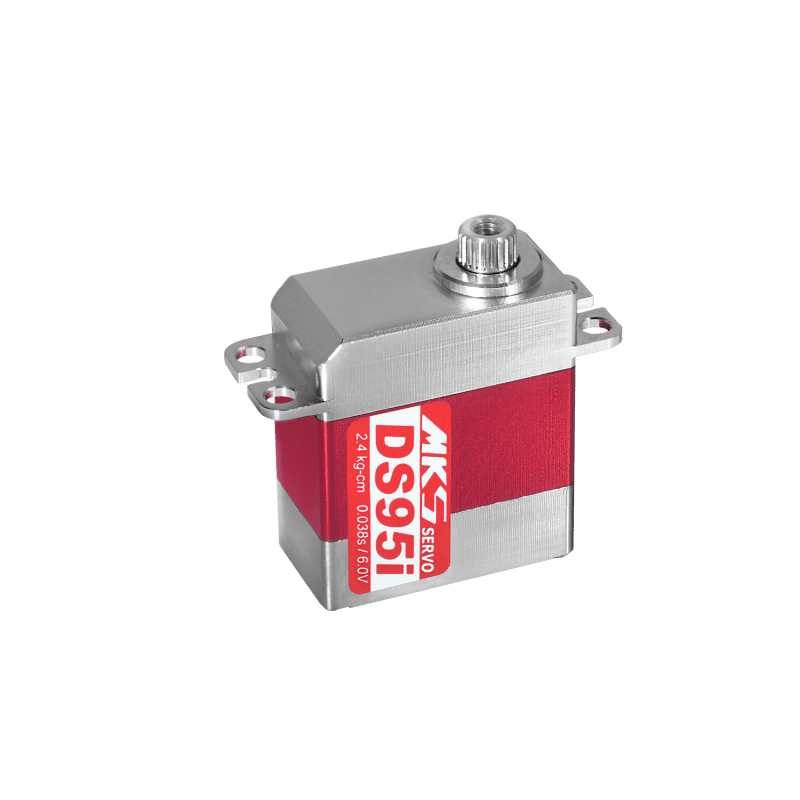

MKS DS95i Micro Tail Rotor Servo
| |||
Specs:
| SKU | SKU-MKS-DS95i | |
| Dead Band | 0.001ms (Default) | |
| Control System | +Pulse Width Control | |
| Working Frequence | 760μs / 560hz | |
| (RX) Required Pulse | 3.0~5.0 Volt Peak to Peak Square Wave | |
| Operating Voltage | 4.8~6.0 V DC Volts | |
| Operating Temperature Range | -10 to + 60 Degree C | |
| Operating Speed (4.8V) | 0.047 sec/60° degrees at no load | |
| Operating Speed (6V) | 0.038 sec/60° dagrees at no load | |
| Stall Torque (4.8V) | 1.92 kg-cm (26.66 oz/in) | |
| Stall Torque (6V) | 2.40 kg-cm (33.33oz/in) | |
| 360° Modifiable | YES | |
| Motor Type | Coreless Motor | |
| Potentiometer Drive | Direct Drive | |
| Driver Type | FET | |
| Bearing Type | Dual Ball Bearings | |
| Gear Type | Chrome-Titanium alloy gear | |
| Programmable | NO | |
| Connector Wire Length | 20.0 cm (7.86 in) | |
| Dimensions | 23X12X27.25 mm (0.9X0.47X1.07 in) | |
| Weight | 21.21 g (0.74 oz) | |
Detailed Images:
Video:
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
DS95i |
| Weight: |
0.15 lb |
Product Spare Parts
Customer Reviews
MkS are the best.
I had a great buying experience.
450クラスのテールサーボはこれ以上のサーボを私は知りません。
日本国内での入手が難しくやっと入手できてうれしく思います。
Would be 5 stars if it weren’t so heavy. It’s working great on an Oxy 3 helicopter. But why doesn’t anyone make a good servo that’s plastic anymore? I know so many guys Prefer metal on their helis because they think they can impress their friends and women at the bar more if their heli doesn’t have plastic on it, but c’mon, the extra weight of aluminum is really not necessary for a small heli like an Oxy 3. Plastic is often a superior material selection for certain parts.
So unless a good lighter servo comes out, this is probably the best choice in the size range.
I have one on my oxy 3 and like it. So I got one for my oxy max instead of a mini servo to keep the wait down. I like mks solid servos!
I Haven’t got a chance to fly my Heli yet with the new server. Check back in two weeks
I Haven’t got a chance to fly my Heli yet with the new server. Check back in two weeks
Awesome servo, with MKS quality. Keeps the Gaui X3 tail locked in with my Ikon Mini FBL.
I just finished repairing my Trex-250 and installing a new MKS DS95i. I ran three packs through the heli this morning, and I gotta say that there's simply no tail monkey business with the DS95i installed. The DS95i has just the right combination of speed and strength to keep that 250 tail behaving like a gentleman. I know this servo is expensive, but if you really love the Trex-250, then this servo is worth every penny.
This Servo was a Game Changer. This Servo made my Trex 450 Pro DFC feel just like the helis in a simulator. The tail holds so perfectly solid, I was simply AMAZED!!!
