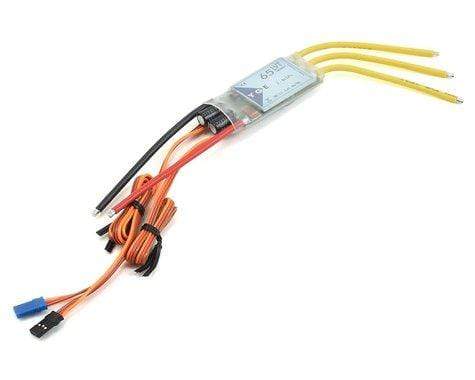

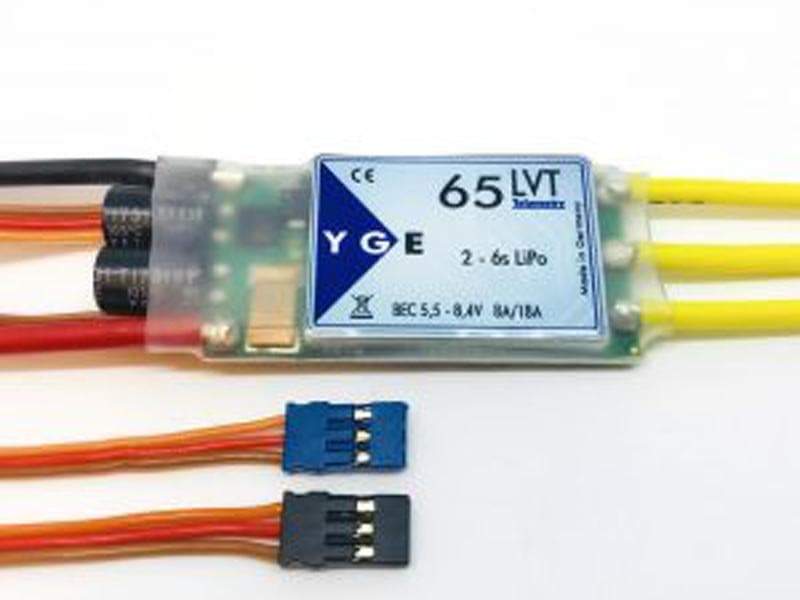

YGE 65A LV Telemetry ESC
YGE ESC's have been known to provide reliable performance in the most demanding electric applications in sailplanes, airplanes, and helicopters. As telemetry support continues to improve within the R/C industry, YGE now has implemented on-board Telemetry items for radios which support it.
Built on a proven design, and offering the latest in demand tech all in one convenient package will be the standard for electronics moving forward. Utilizing onboard Telemetry features, the chances of external items failing is vastly reduced, and additionally reduces clutter on the model for wiring up external modules and sensors.
Features:
- The specified current is the maximum continuous full gas flow with good cooling
- 2-6s LiPo, undervoltage reset or shutdown
- Current limitation
- Undervoltage detection can be switched off
- Speed control (governor mode)
- Soft start
- Active freewheel, therefore unlimited part-load
- Automatic timing, or adjustable in 6 levels
- EMK brake adjustable
- F3A / Acro brake (brake intensity steplessly adjustable in flight)
- Min and Max values are logged and can be displayed in the optional PC tool after the flight (eg current)
- Speed limit: 240,000 rpm (2-pole)
- Overtemperature / overload warning
- Anti-glare: reduces the start-up spark
- Basic programming via mode setup
- Fine adjustment and choice of telemetry protocol via PC setup, suitable USB adapter is optionally available
Governor: Internal/External
Continuous Current: 65A
BEC: 8A Cont. | 18A Burst
BEC Output: 5.5-8.4V
Cell Count: 2-6s LiPo
Case: PVC Heatshrink
Programming: Yes: USB Adapter for Telemetry ESC - SOLD SEPARATELY
Weight: 45g
Dimensions: 64x26x9mm
Spark-Proof: Yes
Type: | |
---|---|
Vendor: | |
SKU: |
YGE-65LVT |
Weight: |
0.25 lb |
Product Spare Parts
Have used this ESC with both VBar and RotorFlight. Works great with both. VBar integration is done very well. RotorFlight will add Scorpion and YGE integration in the future. I've sent a few questions to YGE support and they've been great at responding. Only taking a star away because it doesn't have a USB port and you have to pay $40 for the USB interface separately.

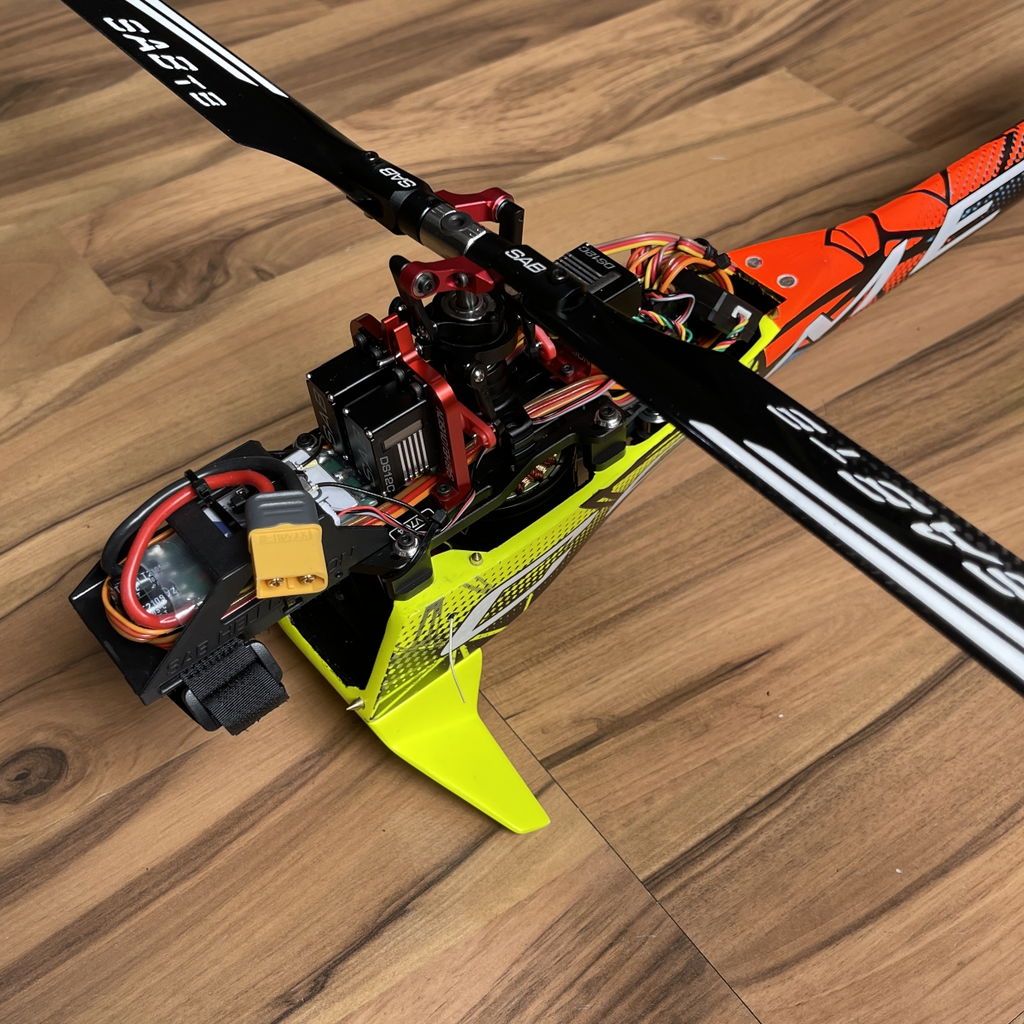

I used this ESC on a SAB mini Comet. It was a bit overkill as I never peaked more than 65A, but I don't know if the smaller 35A version would have worked. The performance, telemetry, and convenience was every bit as good as the larger YGE ESCs especially when paired with a Neo and VBC Touch radio.
I used this in SAB mini comet.
It is quite light and perfect fit.
Got all the telemetry and excellent performance.

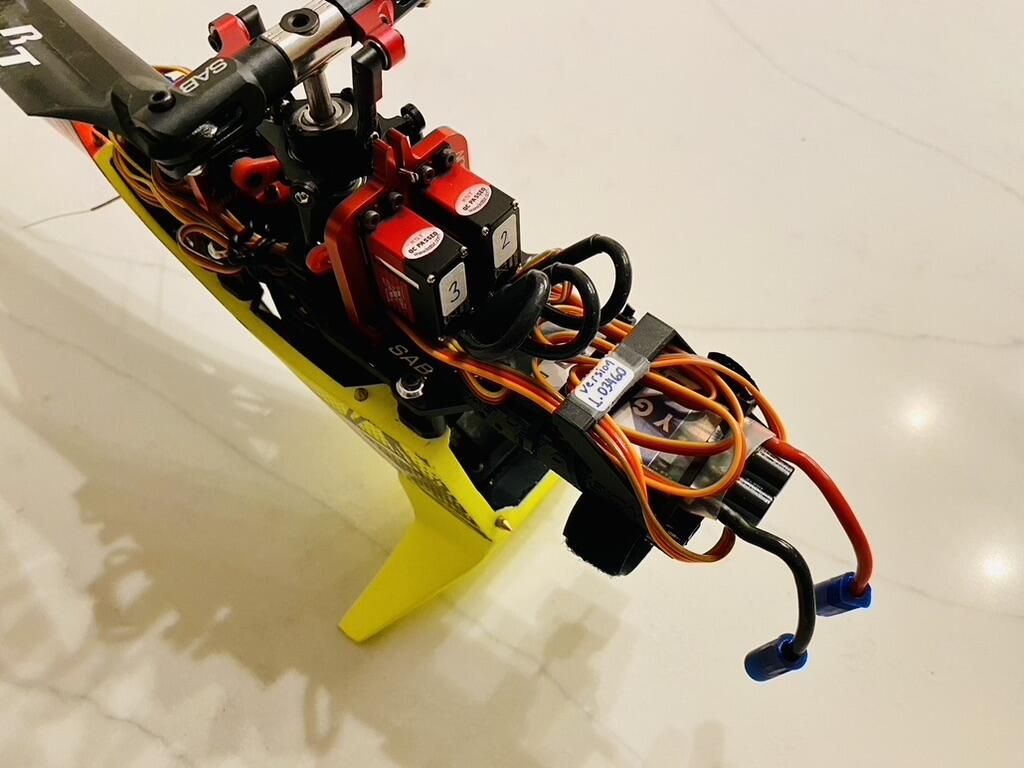

Been using this model with my Oxy 4Ms and P380 now for a couple of years. It weighs about as much as a HW40, integrates with anything (vcontrol/Jeti/etc.), and one of the easiest ESCs to set the gov up on. You set and go fly, nothing else. The performance of that gov is nothing short of outstanding also. Hides away in the tiniest of spaces. Also great for any other 380, like SAB.
Great ESC
Have used this ESC with both VBar and RotorFlight. Works great with both. VBar integration is done very well. RotorFlight will add Scorpion and YGE integration in the future. I've sent a few questions to YGE support and they've been great at responding. Only taking a star away because it doesn't have a USB port and you have to pay $40 for the USB interface separately.
I used this ESC on a SAB mini Comet. It was a bit overkill as I never peaked more than 65A, but I don't know if the smaller 35A version would have worked. The performance, telemetry, and convenience was every bit as good as the larger YGE ESCs especially when paired with a Neo and VBC Touch radio.
I used this in SAB mini comet.
It is quite light and perfect fit.
Got all the telemetry and excellent performance.
Been using this model with my Oxy 4Ms and P380 now for a couple of years. It weighs about as much as a HW40, integrates with anything (vcontrol/Jeti/etc.), and one of the easiest ESCs to set the gov up on. You set and go fly, nothing else. The performance of that gov is nothing short of outstanding also. Hides away in the tiniest of spaces. Also great for any other 380, like SAB.
Great ESC
