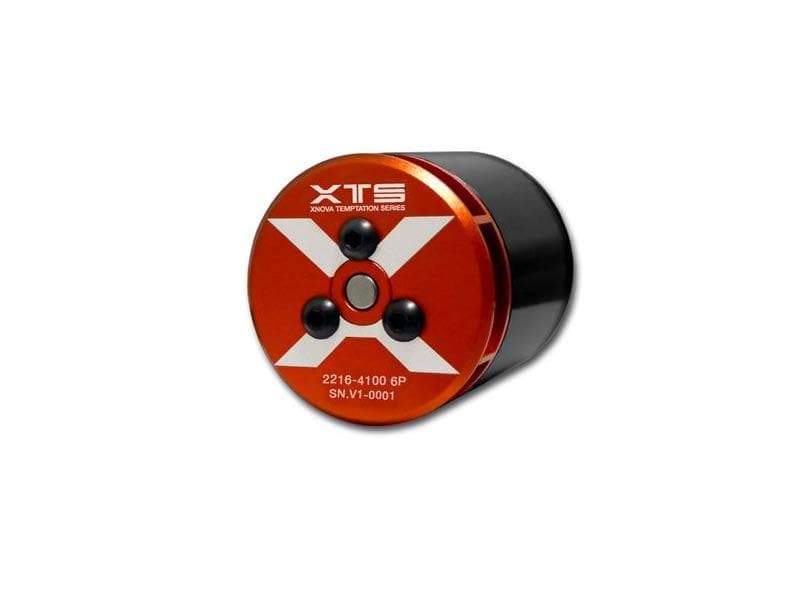

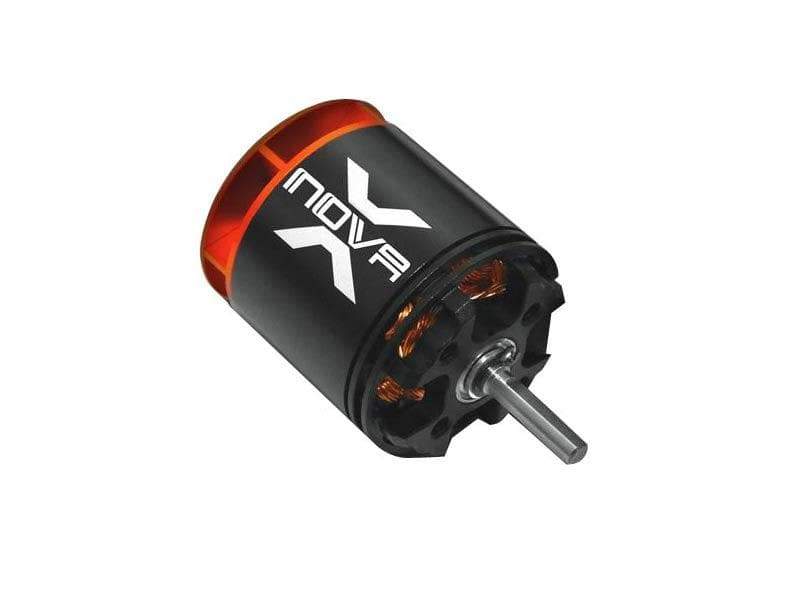

Xnova OXY 3 2216-4100KV
Xnova XTS 2216-4100kv 6P
Designed for extrem 3D , 220-285mm bladesize helicopter where highest power to weight ratio is important.
| Slots & Poles | 9n6p |
| Winding T | D |
| rpm/V | 4100 |
| Volt (V) | 10/ 15 |
| Io(A) | 4.2 / 5.8 |
| Rm (mohm) | 15 |
| Weight (without connector) (g) | 77 |
| Body Length (no shaft) mm | 33.8 |
| Diameter (mm) | 28.5 |
| Shaft Length (mm) (Details pictures) | 14.5 |
| Shaft Dia. (mm) | A=4mm to 3.17 on pinion side |
| Mounting Holes CTC Distance (mm) | 16*4 |
| Mounting Screw | M3x0.5 |
| Max Eff. Curr. | 52.92 / 76.16 |
| Max Eff. | 84.13/ 84.77 |
| Kt (Nm/A | 0.0023 |
| Km (Nm/sqrt(w)) | 0.0190 |
| Max Continuous Power(Watts) | 580 |
| Peak Continuous Power(Watts) (2 sec) | not provided |
| Max Continuous Current(Amps) | 36 |
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
XN2216-4100 |
| Weight: |
0.38 lb |
Product Spare Parts
Customer Reviews
These motors are great !!! Most power and are easy on battery’s. I have four motors on my heli’s and are the go to motor for me.
Great motor on my SAB Kraken 580. Runs cool and effortlessly!! XNova has gave us another great one!!
This motor has tons of power for the OXY 3 and is a great fit all the way around, highly recommend!
Way more than I need at my current skill level. Really strong motor. Recommended.
Nice motor. Has more power than I will ever use!
Very smooth and powerful little motor.
I have it on my OXY3-Qube and it's a so fast and powerful. Almost too much for me but I love it. The 4100KV takes it over the edge.
