Click here to read the manualXGuard Plus V3 C30 Backup for smaller Helis Backup Power Pack with 30 Farad capacitors with Telemetry, Alarm, Remote Off & Radio Switch portsTwo Telemetry portsOne Remote Off portOne Alarm portServo Back EMF protectorStatic electricity protector The HUGE difference between the XGuard PLUS and the...

Click here to read the manual

XGuard Plus V3 C30 Backup for smaller Helis

Backup Power Pack with 30 Farad capacitors with Telemetry, Alarm, Remote Off & Radio Switch ports

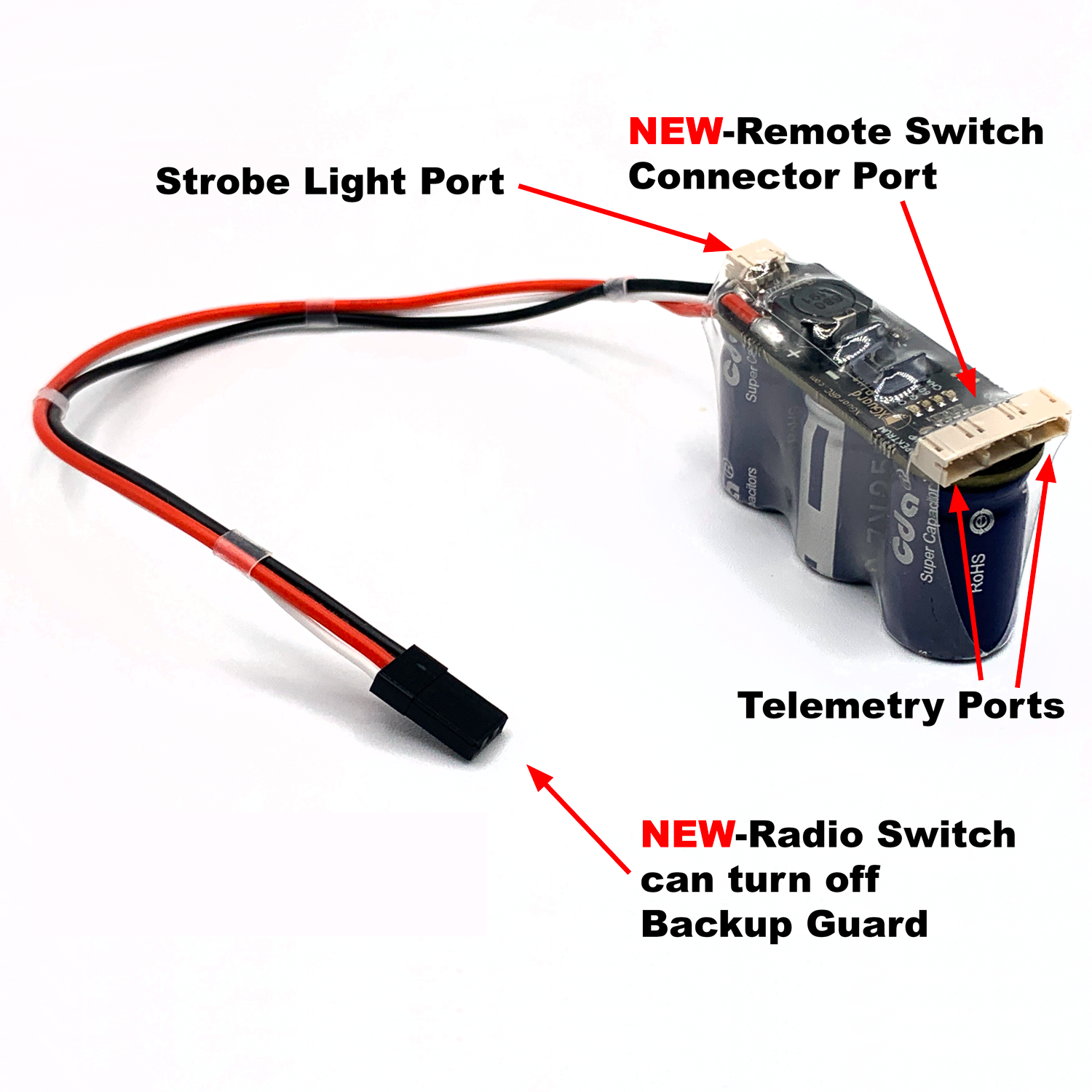

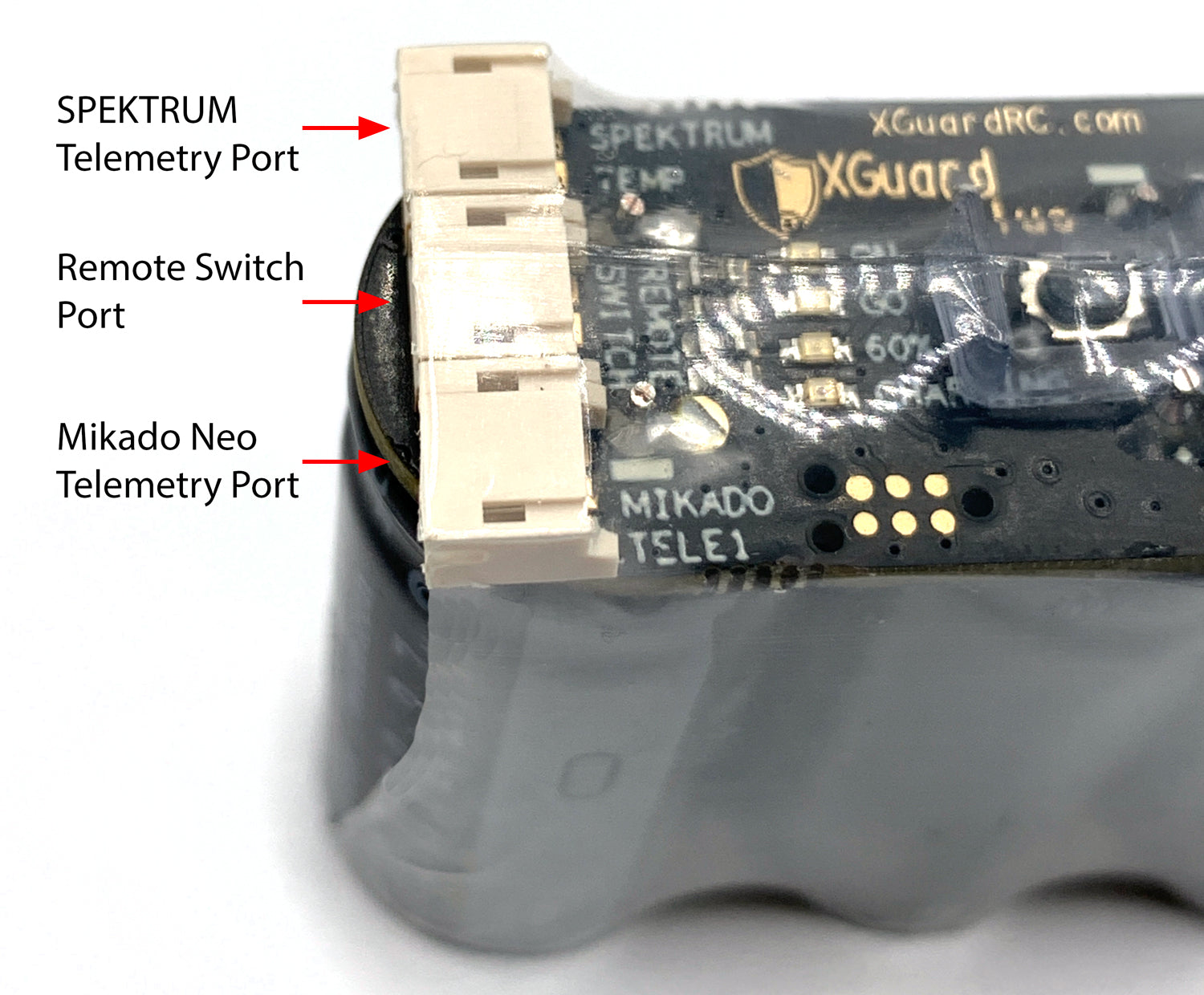

Two Telemetry ports
One Remote Off port
One Alarm port
Servo Back EMF protector
Static electricity protector

The HUGE difference between the XGuard PLUS and the other units on the market. Not even close to XGuard! You don't want to miss this video.

If you have an EVO vControl please activate the temperature telemetry to have the activation alarm as shown in this video

Click here to read the manual

The red light is activated only when there is current consumption.

When you disconnect the power if there is no consumption the unit will not sense a drop in voltage so it won’t trigger on.


When you’re flying the simple forces of the blades make the consumption constant so it will trigger instantly.
To activate the switch off function you need to Press the off button while powering it up so you see all the LED lights flash three times.


You can always know if the radio switch feature is activated by looking at the number of times all the lights blink when powered up.


Please watch this video for more information.

Futaba Telemetry

How to connect to Futaba telemetry.

To connect to a Futaba System you need to buy a Futaba Temperature Sensor so that you can use it to simulate a temperature alarm to indicate that the XGuard Plus has been activated.

This video explains how to program a Futaba radio for XGuard telemetry

Type:

ESC Accessories
Vendor:

XGuard RC
SKU:

AAVXG0119-V3
Weight:

0.5 lb

Product Spare Parts

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
M
M.M.
You need this

I had the C25 and the C30 powers the system 15 seconds longer. The way I tested this, after I unplugged the helicopter, I moved all the servos around until off, the system was powered on for about a minute. In addition, the remote off switch works but wait for the red light to flash then move the switch it 2 or 3 times.
