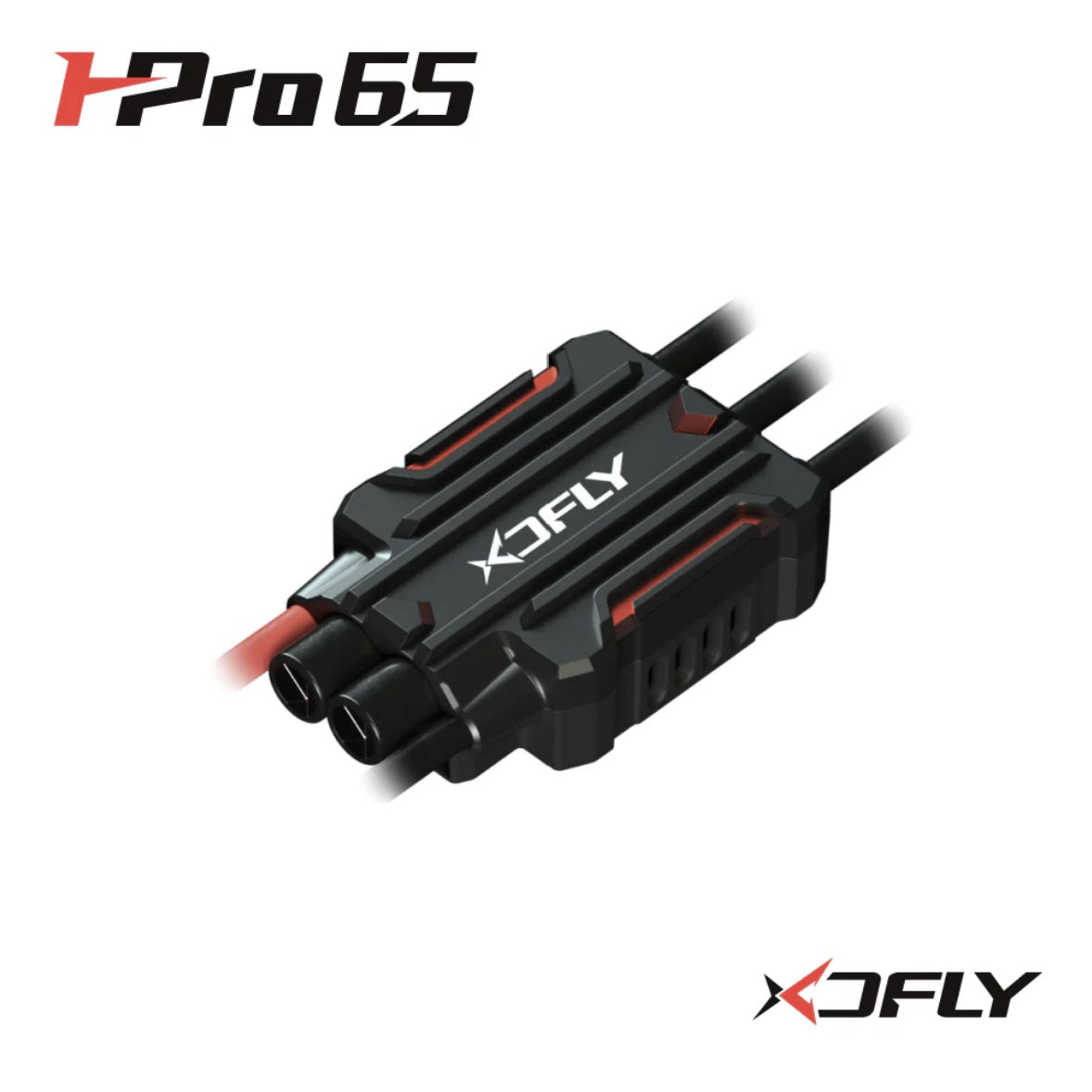

We(XDFly) have released HPRO 65A ESC 3-6S Built-in SBEC 6-12V Adjustable Speed Control For RC Airplane Aircraft F3A F3C 325-380 Helicopter.
1. Equipped with high-performance 32-bit G4 processor with operating frequency of up to 170MHz.
2. Adopting new generation of power MOSFET, it features low heat generation, high instantaneous current endurance and high reliability.
3. Self-check function: After power-on, the ESC will automatically self-check for power supply short circuit, motor phase loss, throttle zeroing, and voltage range.
4. The special and unique case design greatly increase the heat dissipation area and significantly enhance the heat dissipation performance of the ESC.
5. With helicopter speed governor function, the constant speed sensitivity can be adjusted and is easy to operate.
6. Equipped with the time selection function for stall landing, it can be manually adjustable within the time set to avoid a crash due to handling errors.
7. The ESC has an independent programming interface, it supports parameter adjustment via Phone APP/Mikado VBCT/E/Rotorflight2/Jeti remote control devices.
8. With telemetry function for Mikado VBCT/E, Rotorflight2, Futaba SBUS2, Jeti, MSH Brain, and iKon, allowing users to check data in real time.
9. Multiple protections: abnormal power-on voltage, start-up, temperature, throttle signal loss, over-load, low-voltage, over-current.
| Model | HPRO 65A 3-6S SBEC |
| Continuous Current(A) | 65A |
| Burst Current(A) | 130A |
| Input Voltage | 3-6S Lipo |
| BEC Output | 6-12V Adjustable; Current Cont.10A, Peak 35A |
| Size | 60x36x19mm |
| Weight | 63g |
| Power Wire | 14 Gauge 85mm Red/Black |
| Motor Wire | 14 Gauge 62mm Black |
| Programming Way | XDFly Android&iOS APP/VBCT/E/RF2/Jeti |
| Telemetry | VBCT/E/RF2/Futaba SBUS2/Jeti/MSH Brain/iKon |
| Applications | 325-380 Class electric helicopters or fixed-wing aircrafts |
| Vendor: | XDFly |
| SKU: | 1010650 |
| Barcode: | 6977581880014 |
| Availability: | In Stock |
| Product Type: | Heli ESCs |
| Weight: | 0.75 lb |
I tried these after HobbyWing discontinued their 60A, wow easy setup using the XDFly programmer, the governor mode works well, I graphed the RPM using Ardupilot FC, very smooth soft start and very stable RPM and the pricing is excellent. Will buy again.

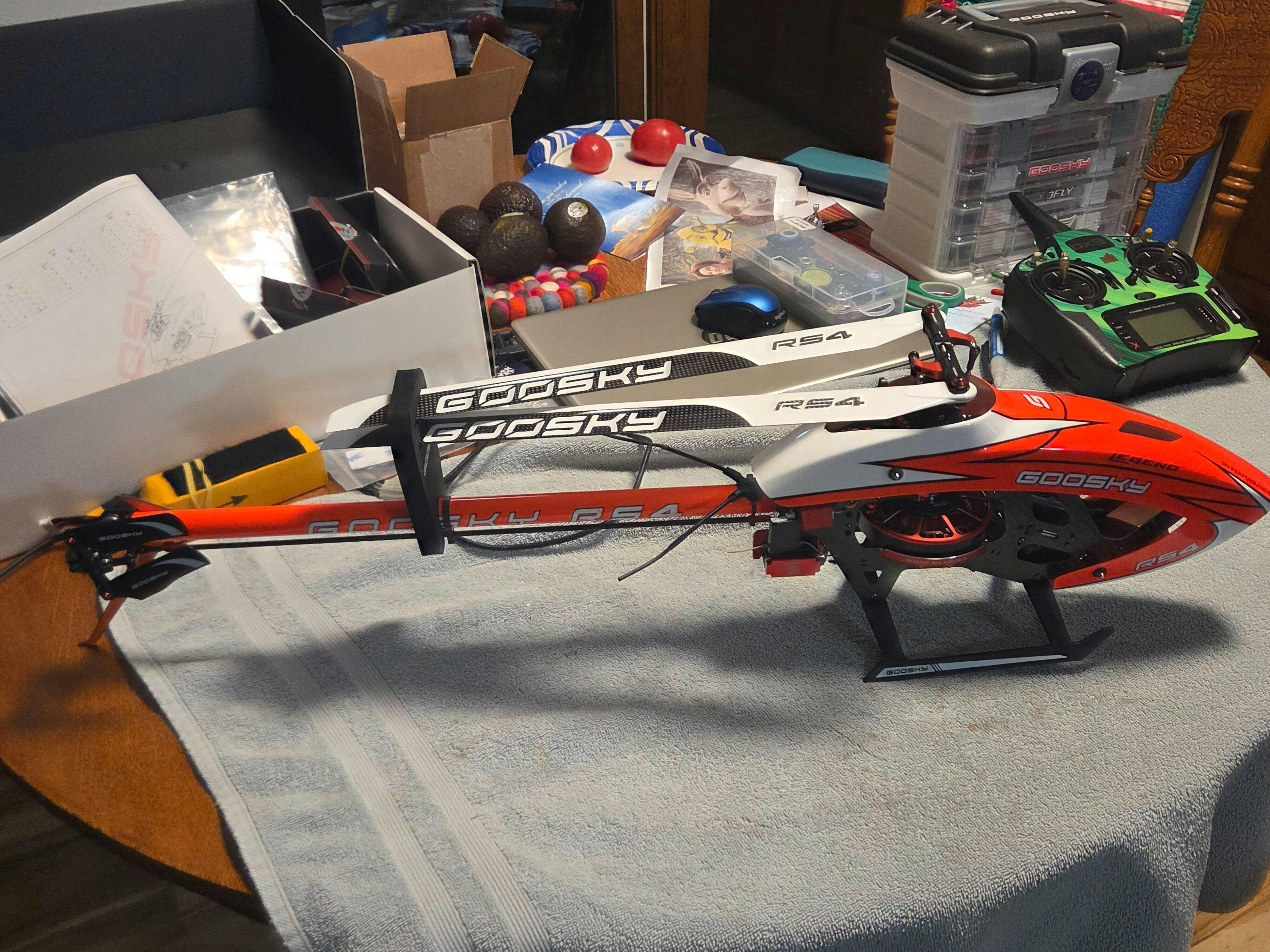

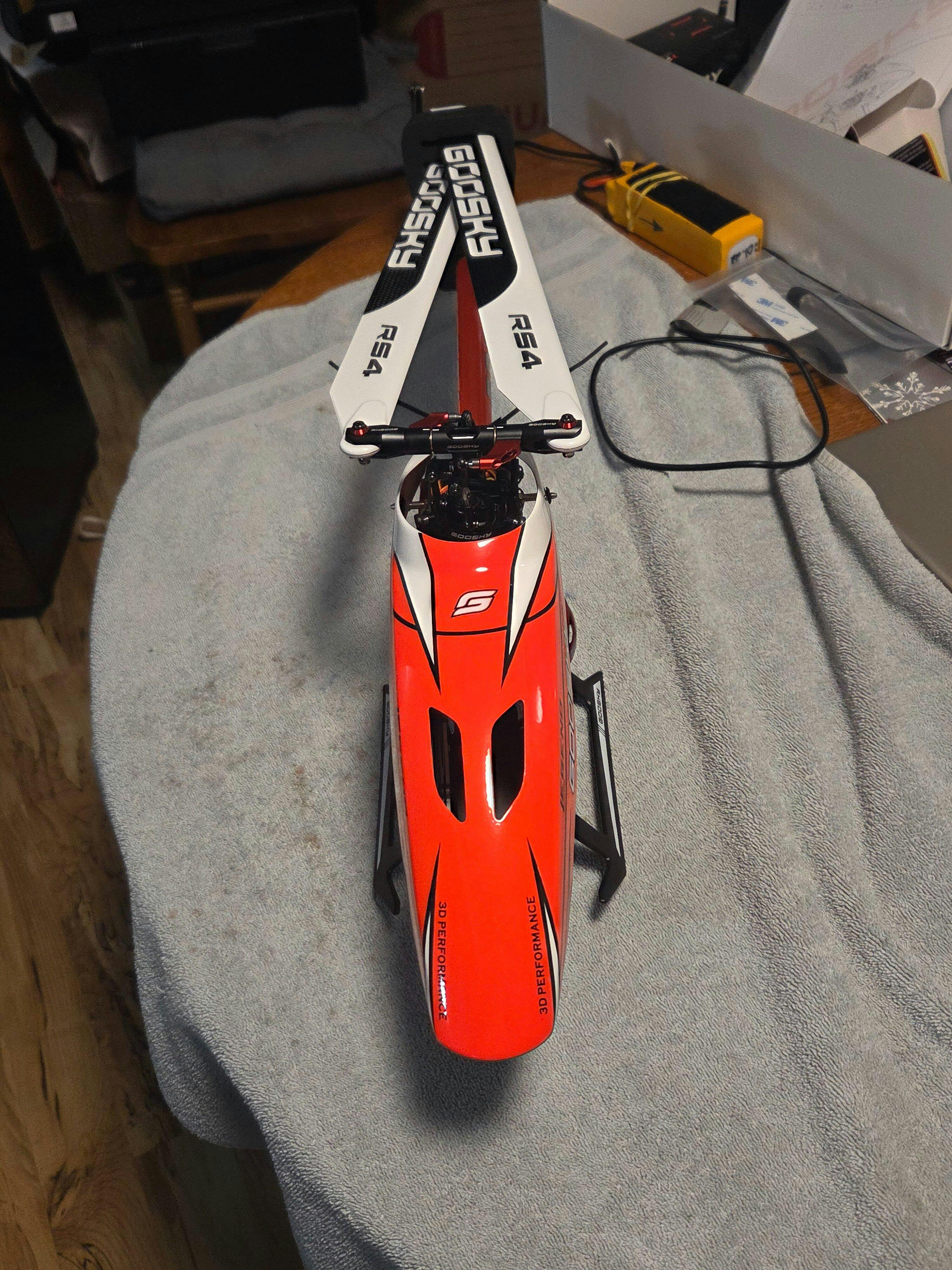

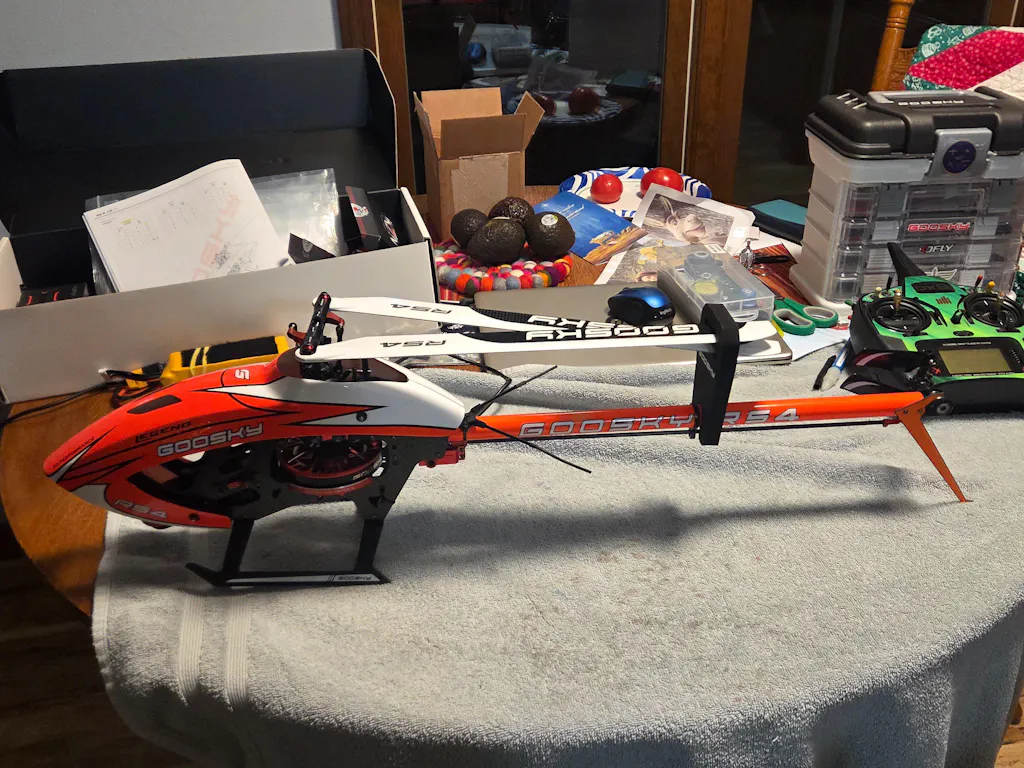

Got this XDFLY 65a esc for a Goosky RS4 Venom build. Setup was easy although the RS4 required modification of the esc tray for it to fit. Recommend getting the programming card or probably better yet, get the Bluetooth module so you can also do firmware updates.
I bought this to replace the Align ESC on my 470LM since the governor stopped working and Hobbywing discontinued the 60 amp ESC. It was easy to setup with the BLE module and phone app. Throttle calibration and governor setup was just like the Hobbywing ESCs. I Did run into an issue with my Ikon2 completely failing after the 5th flight with this ESC, not sure if it is actually related to the ESC or not. I replaced the Ikon2 with one of the microbeast plus FBL units I have, soldered up a capacitor module to regulate power flow and filter high frequencies and installed that between the microbeast plus and the ESC lead. I setup my 14SG and the microbeast plus and took the heli out flying and all seems to be working well. I got 4 flights on it since installing the module and the microbeast plus and no issues so far, more flights to come. My guess as to why the Ikon2 failed was either a spike in power draw somewhere or high frequencies from the ESC and it was too much for the Ikon to handle. I typically run capacitors on my FBL units to help stabilize power feed. now that I have created a design for a capacitor module to filter freqs and stabilize power, I will be making more of these and putting them on all my helis.
Really good esc. Very impressive
The esc on my new align 470l burnt out with the tail servo after some electronic failure maybe the receiver on the 8th flight! Now my microbeast is also maybe damaged. This esc worked perfectly as a replacement and so far the microbeast also seems to be working but i think i will change it also.
Running this on a Goo-Sky RS4. I have this paired with a vbar and everything works. Only about 10 flights on it but seems to be fine.
