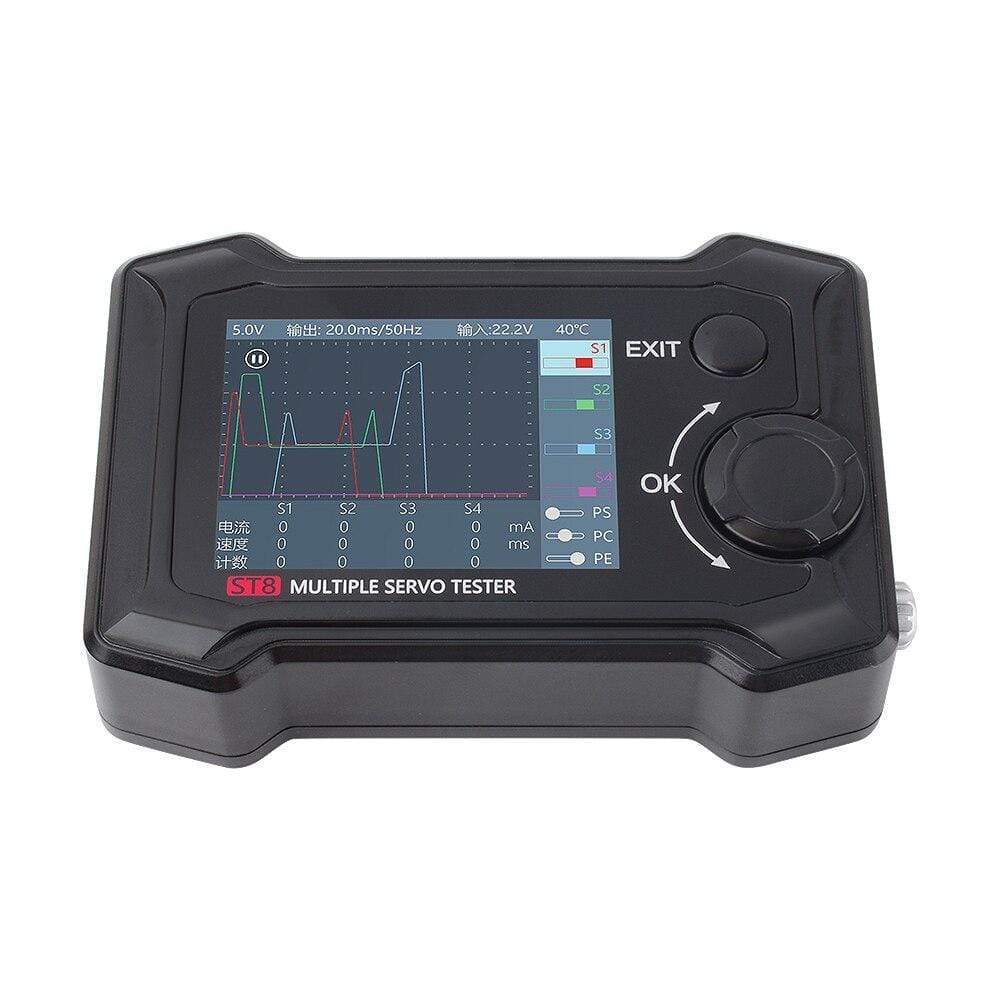

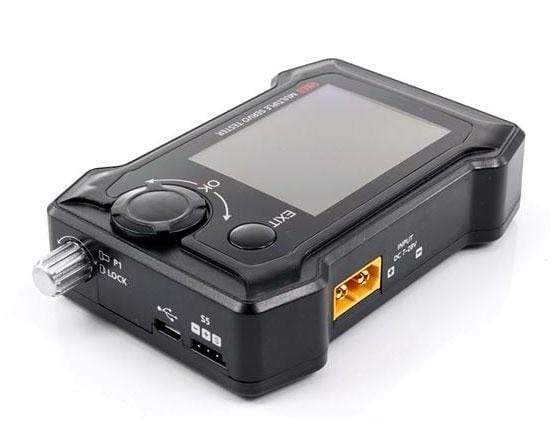

ToolkitRC ST8 Advanced Servo Tester, Driver, Analyzer (PWM/PPM/S.Bus)

ToolkitRC
|
HP110-0005
You will earn 54.99 points for buying this product
Price Match Guarantee
$54.99 $0.00( / )
Specs:Input voltage: 7-28V@MAX 10AMain output port: 5.0V-28.0V@MAX 10ASignal port: 5.0V-8.4V@MAX 4A/S1-S4Output voltage: 5.0V-8.4V@MAX 4A/S4 Ext.Output signal:100us-2900us@33-1000Hz @S1-S4PWM 500us-2500us@S5PPM 8CH@S5  SBUS 16CH@S5P1 rotation range: 1000us-2000us@P1MicroUSB: Upgrade @ USB3.0LCD display: 2.4 inch TFT RGB 320*240 resolutionProduct Size: 99mm*68mm*26mmWeight: 140gPacking Size: 105mm*80mm*45mmWeight: 160g




Specs:
Input voltage: 7-28V@MAX 10A
Main output port: 5.0V-28.0V@MAX 10A
Signal port: 5.0V-8.4V@MAX 4A/S1-S4
Output voltage: 5.0V-8.4V@MAX 4A/S4 Ext.
Output signal:
100us-2900us@33-1000Hz @S1-S4
PWM 500us-2500us@S5
PPM 8CH@S5  SBUS 16CH@S5
P1 rotation range: 1000us-2000us@P1
MicroUSB: Upgrade @ USB3.0
LCD display: 2.4 inch TFT RGB 320*240 resolution
Product Size: 99mm*68mm*26mm
Weight: 140g
Packing Size: 105mm*80mm*45mm
Weight: 160g

Type:

Servo Accessories
Vendor:

ToolkitRC
SKU:

HP110-0005
Weight:

0.25 lb

Product Spare Parts

Customer Reviews

Based on 4 reviews
50%
(2)
25%
(1)
25%
(1)
0%
(0)
0%
(0)
W
Walter S.
The tool

This tool tester really works great

E
Edwin

Great tool to have in testing servos before install.

D
Dennis P.
Cheaply made

Mine had bent connection pins, was able to bend back myself, no quality control

R
Ronald T.
A nice bit of kit!

I've been quite impressed with the ST8, so far :) It's relatively easy to configure and use (once you know how... see below) and appears to be well built. The instructions included with the device are not great, however, so I'd recommend the 3rd party instructions provided by Peter Scott, at:

https://intellog.com/assets/pdf/rcsd-2021-03-toolkitrc-st8-servo-tester.pdf

There certainly are cheaper servo testers on the market but none of them, to my knowledge, provide the flexibility and feedback provided by the ST8.
