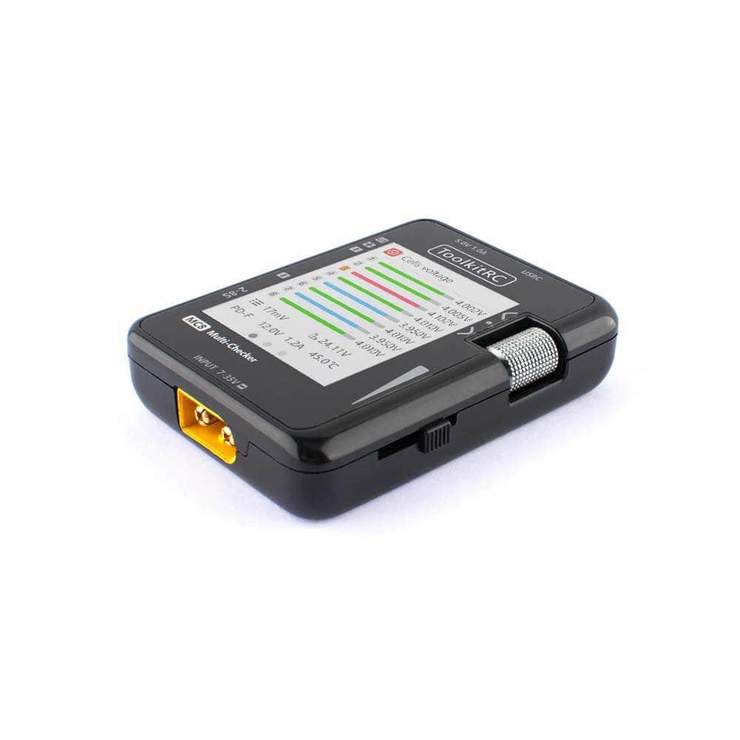

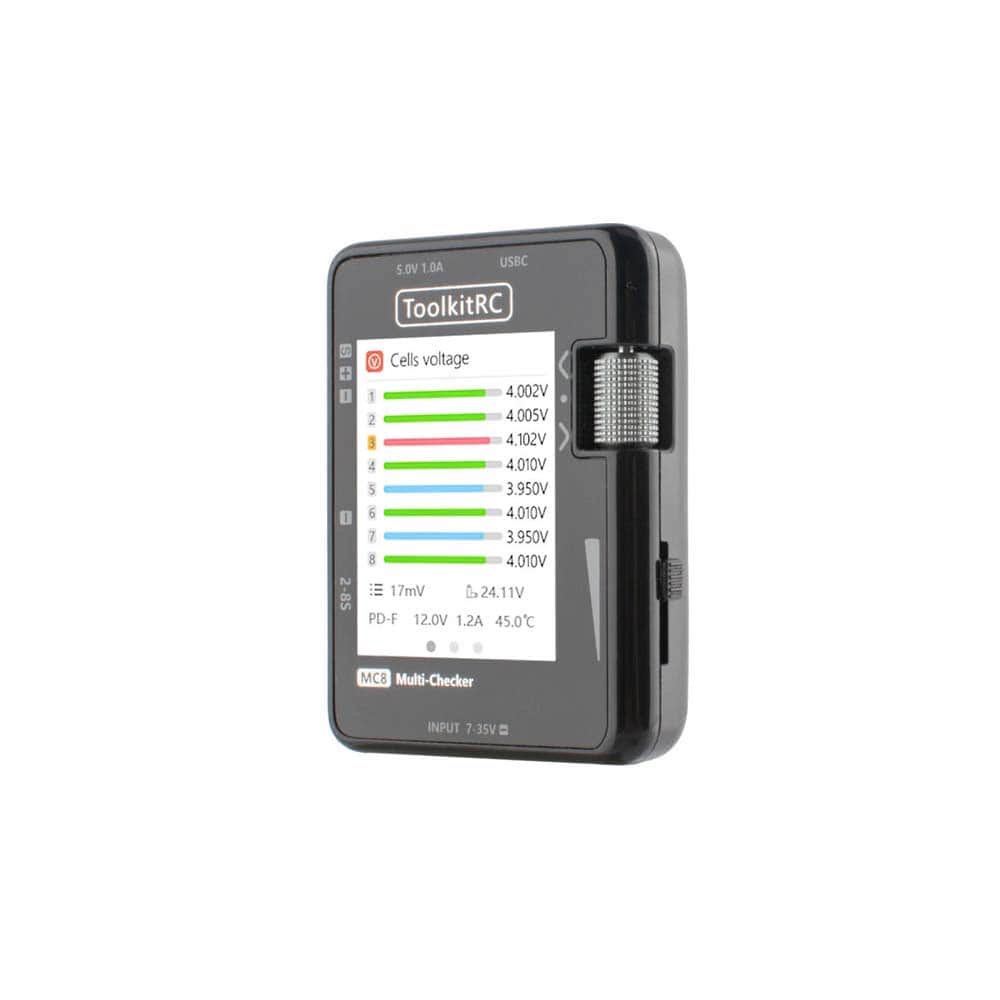

ToolkitRC MC8 Cell Checker & Multi Tool w/ USB-C Fast Charging

ToolkitRC
|
HP110-0016
You will earn 36.99 points for buying this product
Price Match Guarantee
$36.99 $0.00( / )
Specifications Main input port XT60 7.0V-35.0VBalance input 0.5V-5.0V Lixx 2-8SSignal port input <6.0VBalance current MAX 60mA @2-8SBalance accuracy <0.005V @ 4.2VUSB-A output 5.0V@1.0A firmware upgradeUSB-C output 5.0V-12.0V @MAX 20WUSB-C protocol PD3.0 QC3.0 AFC SCP FCP Measurement PWM 500-2500us @20-400HzPPM 880-2200us*8CH @20-50HzSBUS 880-2200us *16CH @20-100Hz Output PWM 1000-2000us @20-1000HzPPM 880-2200us*8CH @50HzSBUS...



Specifications

Main input port XT60 7.0V-35.0V
Balance input 0.5V-5.0V Lixx 2-8S
Signal port input <6.0V
Balance current MAX 60mA @2-8S
Balance accuracy <0.005V @ 4.2V
USB-A output 5.0V@1.0A firmware upgrade
USB-C output 5.0V-12.0V @MAX 20W
USB-C protocol PD3.0 QC3.0 AFC SCP FCP

Measurement

PWM 500-2500us @20-400Hz
PPM 880-2200us*8CH @20-50Hz
SBUS 880-2200us *16CH @20-100Hz

Output

PWM 1000-2000us @20-1000Hz
PPM 880-2200us*8CH @50Hz
SBUS 880-2200us *16CH @74Hz
Item Size 68mm*50mm*15mm
Item Weight 50g
Package Size 76mm*60mm*30mm
Package Weight 100g
LCD IPS 2.0 inch 240*240 resolution

Type:

Battery Accessories
Vendor:

ToolkitRC
SKU:

HP110-0016
Weight:

0.5 lb

Product Spare Parts

Customer Reviews

Based on 5 reviews
80%
(4)
20%
(1)
0%
(0)
0%
(0)
0%
(0)
G
Greg M.
Tiny Powerhouse

Tiny, but so feature packed. Wish the directions were more comprehensive, because this tool is powerful. does everything it seems.

M
Miguel D.
Battery checker and more.

Although it is small it has big features. It can check up to 8S battery, it can also balance the pack. It takes a while as it does it slowly. Another great feature is servo and ESC operations. Overall it’s a nice device.

R
Robert B.
toolKit Rc

I need a tester for sbus and pwm so I purchased this unit.
I am very pleased I did. Works for a good battery tester also.
Bob B

R
R.B.
Test equipment

This work very well I use it for Sbus and batteries.

P
Paul C.
Good Product

Seems to work as described. I haven't used the servo setup feature, but I have used it to balance some batteries and do some testing. It is more accurate than my cheap $12 tester.
