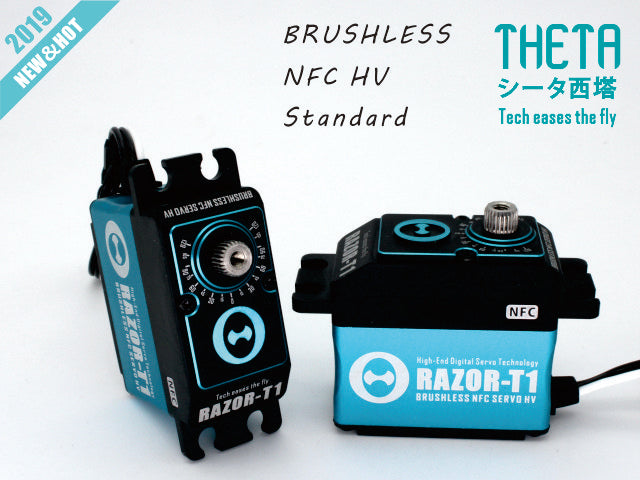

THETA RAZOR-T1 NFC HV Standard Brushless Tail Servo
High voltage, standard size brushless servo 600, 700 and even 800 class helicopters tail servo airplanes a great throttle or steering servo on most cars (SANWA SSR compatible)
40*20*38mm 73g
- High Voltage
- High Speed
- Excellent Centering
- Compatible with Futaba type horns/arms
- Fully programmable via NFC enabled Android smart phones
- Light Weight
- Limit angle: 180±10°(500-2500µsec)
- Operating travel: 90°(1000-2000µsec)
- Rotating direction: Adjustable
- Neutral position: 760us/1520µsec (adjustable, 760us default)
- Maximum travel: ˜150°(800-2200µsec)
- Pulse width range: Adjustable
- Connector wire length: 320 ± 5 mm
- Connector wire gauge: #22PVC
- Dead band width: 1-4µsec
- Size: 40x20x38mm
- Weight: 73g
| Voltage (V) | Current (A) | Speed (s/60°) | Torque(kg*cm) |
5.0 | 2.6 | 0.062 | 17 |
6.0 | 2.6 | 0.054 | 18 |
7.4 | 2.6 | 0.047 | 19 |
8.4 | 2.6 | 0.042 | 20 |
5.0 | 5.0 | 0.058 | 20 |
6.0 | 5.0 | 0.051 | 24 |
7.4 | 5.0 | 0.044 | 27 |
8.4 | 5.0 | 0.039 | 30 |
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
THETA-RAZOR-T1 |
| Weight: |
0.3 lb |
Product Spare Parts
Customer Reviews
Very fast!!
Great Servos for the price.
I like the features of this servo that you can configure it through android phones. Specs are better than the expensive servos that I've purchased. Nice and smooth with a lot of torque.

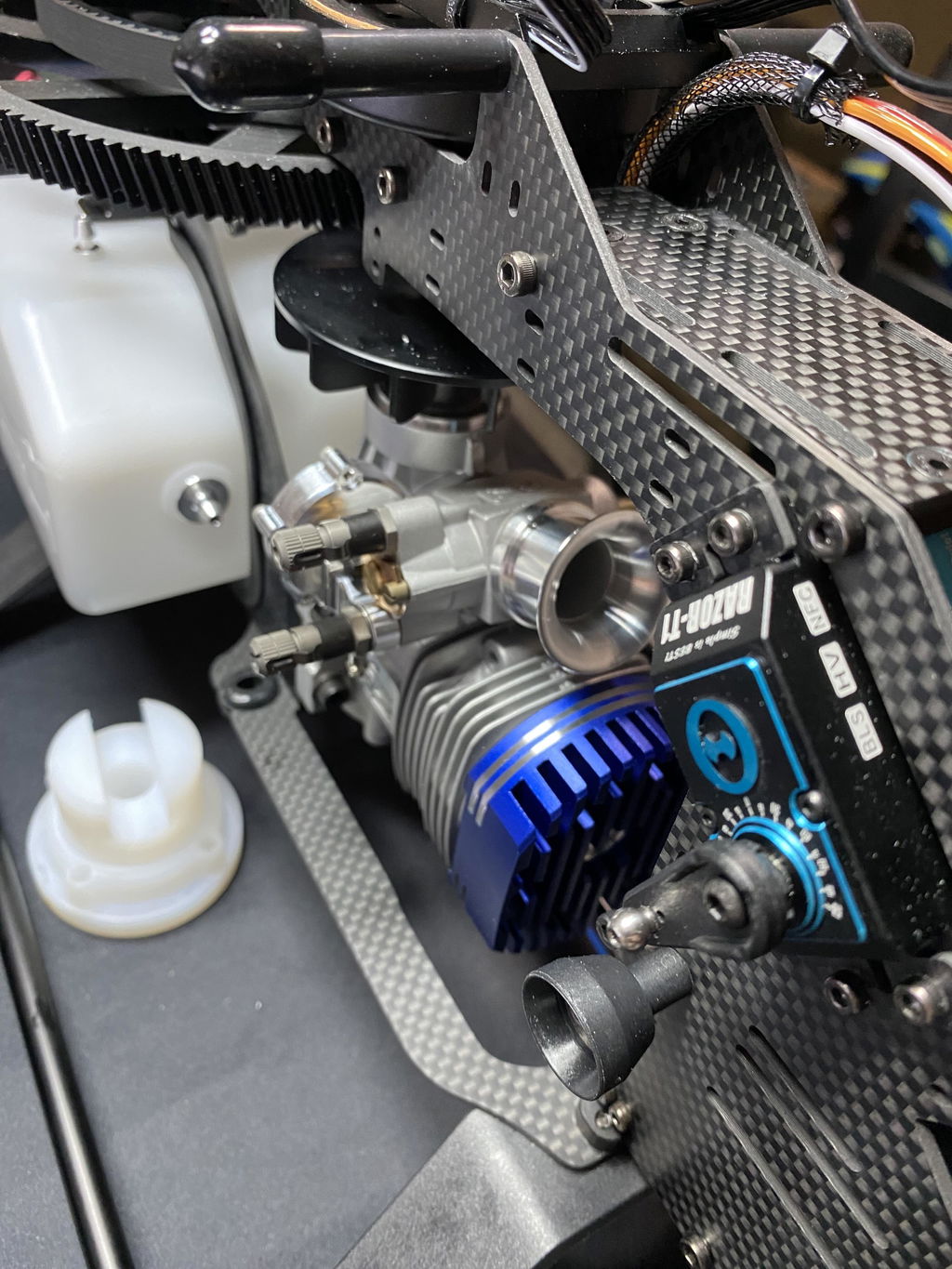

This was installed to my GOBLIN Speed 700.
After flying my first set of servos, I’ve decided to outfit all my future heli’s with Theta, all the way around. Won’t find a better servo for the money. I only got 2 Sticker sheets spending 2k in servos.
My ne "go to" brand for servo's.
