TBS Aerum Polar S 5G8 Linear Race Antenna
$4.99
$18.95( / )

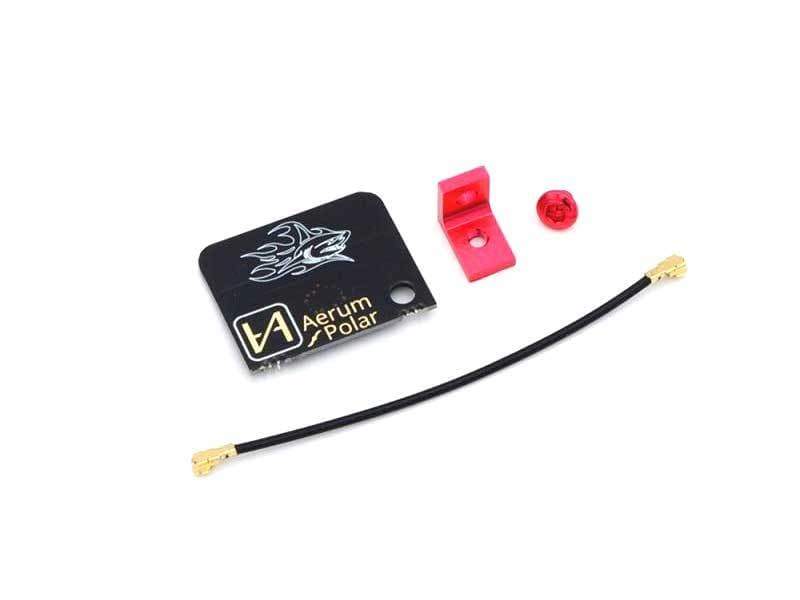

Unipolar ultralight VTx antenna for miniquads and racing drones. Can be mounted using the included right angle aluminum bracket or using 3D printed mounts available for download. Patented PCB antenna Near-perfect omnidirectional transmission pattern Unipolar (linear) transmission Aerodynamic fin-shape Dimensions: 27x21x1 mm Weight: 2.0g FPV Antennas in a PCB! With...
Unipolar ultralight VTx antenna for miniquads and racing drones. Can be mounted using the included right angle aluminum bracket or using 3D printed mounts available for download.

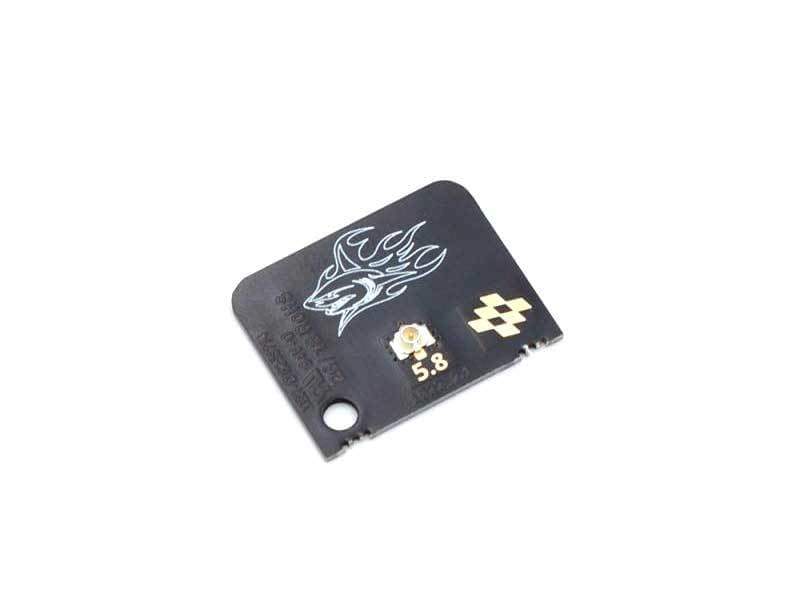

- Patented PCB antenna

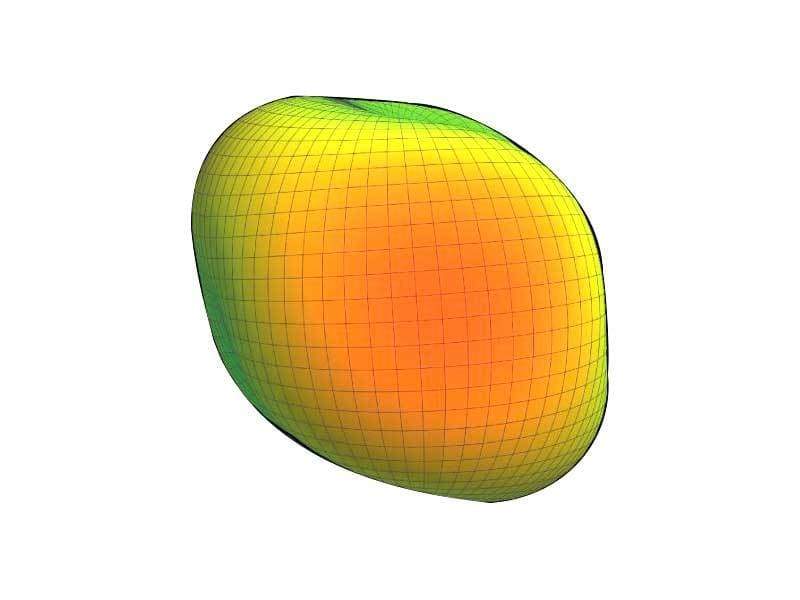

- Near-perfect omnidirectional transmission pattern
- Unipolar (linear) transmission
- Aerodynamic fin-shape
- Dimensions: 27x21x1 mm
- Weight: 2.0g

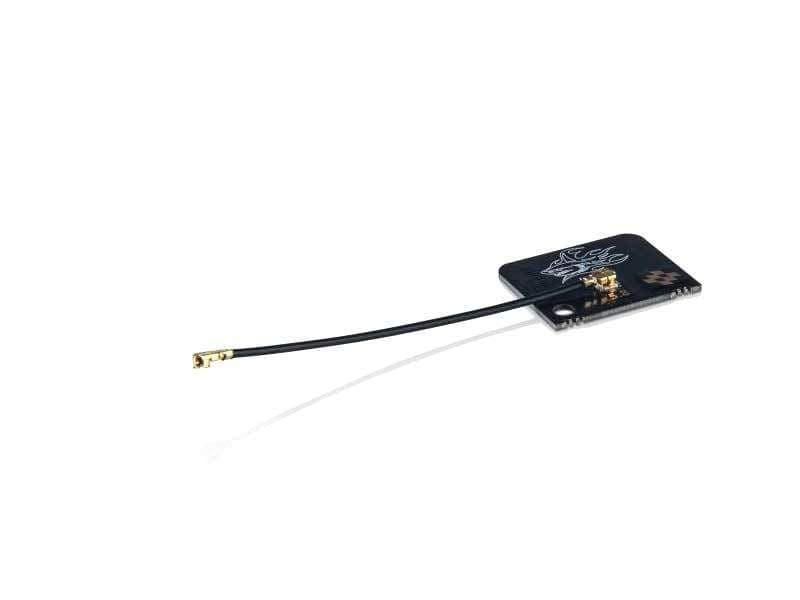

FPV Antennas in a PCB!
With PCB technology it is possible to design more reproducible and finer structures and to tighter tolerances. The FR4 material is resistant to impact and lightweight. The flat structure makes it nearly without air resistance when mounted in direction of flight!
About Aerum Polar
Patented MIMO antenna, aerodynamic and lightweight. Aerum Polar is a new style of PCB Antenna engineered in Germany for the car industry. Together with TBS the antennas were appropriated for the FPV market.
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
TBS-POLARS |
| Weight: |
0.2 lb |
