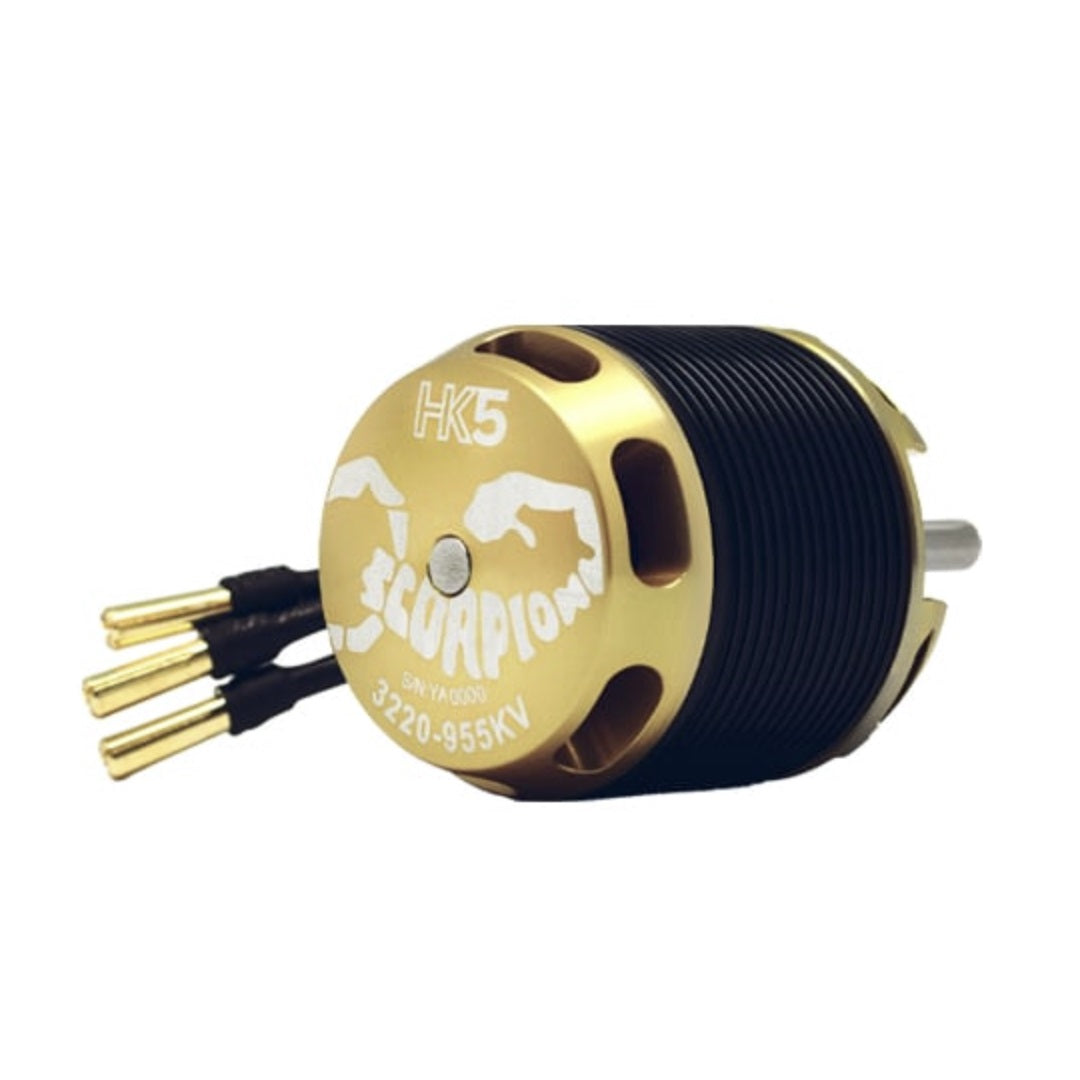

Scorpion HK5-3220-955KV Brushless Motor

Vendor: Scorpion Power Systems

|

SKU: HK5-3220-955

Availability: In Stock

Earn 215 Reward Points when you buy this item.

Price Match Guarantee

$215.99; $215.99
Unit price: per

The order quantity exceeds the stock!

Scorpion HK5-3220-955KV Brushless Motor - HeliDirect

Scorpion HK5-3220-955KV Brushless Motor

$215.99

Quantity:

Scorpion HK5-3220-955KV Brushless Motor

$215.99

Related Products

View Scorpion HK5-3220-1095KV Brushless Motor

Scorpion HK5-3220-1095KV Brushless Motor

SKU : HK5_3220_1095

$215.99

No Review

View Xnova Lightning 3220-950KV Shaft A

Xnova Lightning 3220-950KV Shaft A

SKU : LGT3220950KV10PA

$184.99

( 2 Reviews )

View Scorpion HK5-5024-535KV (6 x 36mm Shaft) Helicopter Motor

Scorpion HK5-5024-535KV (6 x 36mm Shaft) Helicopter Motor

SKU : HK5-5024-535-36

$467.99

No Review

View Egodrift Tengu 3220HS / 900kV Motor

Egodrift Tengu 3220HS / 900kV Motor

SKU : 11720

$179.00

( 4 Reviews )

View Scorpion HK5-4020-850KV Brushless Motor

Scorpion HK5-4020-850KV Brushless Motor

SKU : HK5-4020-850

$251.99

No Review

View Xnova TAREQ Edition 3215-945KV V2 Shaft A

Xnova TAREQ Edition 3215-945KV V2 Shaft A

SKU : XNM3215945KV10PA

$164.99

( 4 Reviews )

View Egodrift Tengu 3220HS / 960kV Motor

Egodrift Tengu 3220HS / 960kV Motor

SKU : 11754

$179.00

( 3 Reviews )

View Scorpion HK5-5024-535KV (6 x 55mm Shaft) Helicopter Motor

Scorpion HK5-5024-535KV (6 x 55mm Shaft) Helicopter Motor

SKU : HK5-5024-535-55

$467.99

( 1 Reviews )

Description
Additional Information

Product Description

We introduce the fifth generation of Scorpion's renowned and award winning "HK - Series" motors. The Scorpion "HK5 - Series"

The HK5 Series lives up to and exceeds our standards of the most Powerful and Efficient motors, with market leading Torque per Amp capabilities. In addition, on the HK5 series we focused specifically on motor cooling and motor temperature. With an all new Internal Fan design, combined with our proven external centrifugal fan, we have nearly doubled the amount of airflow passing through the motor. The result is much improved cooling, and cooler operating temperatures.

The HK5-3220-955kv is designed primarily for the SAB RAW 420C helicopter based on the guidelines set forth by SAB Factory directly.

Specifications :

Motor Kv 955KV RPM/Volt

Weight 189g Grams ( 6.67oz)

Motor Body Dimensions 40.95mm x 45.98mm (1.61" x 1.81")

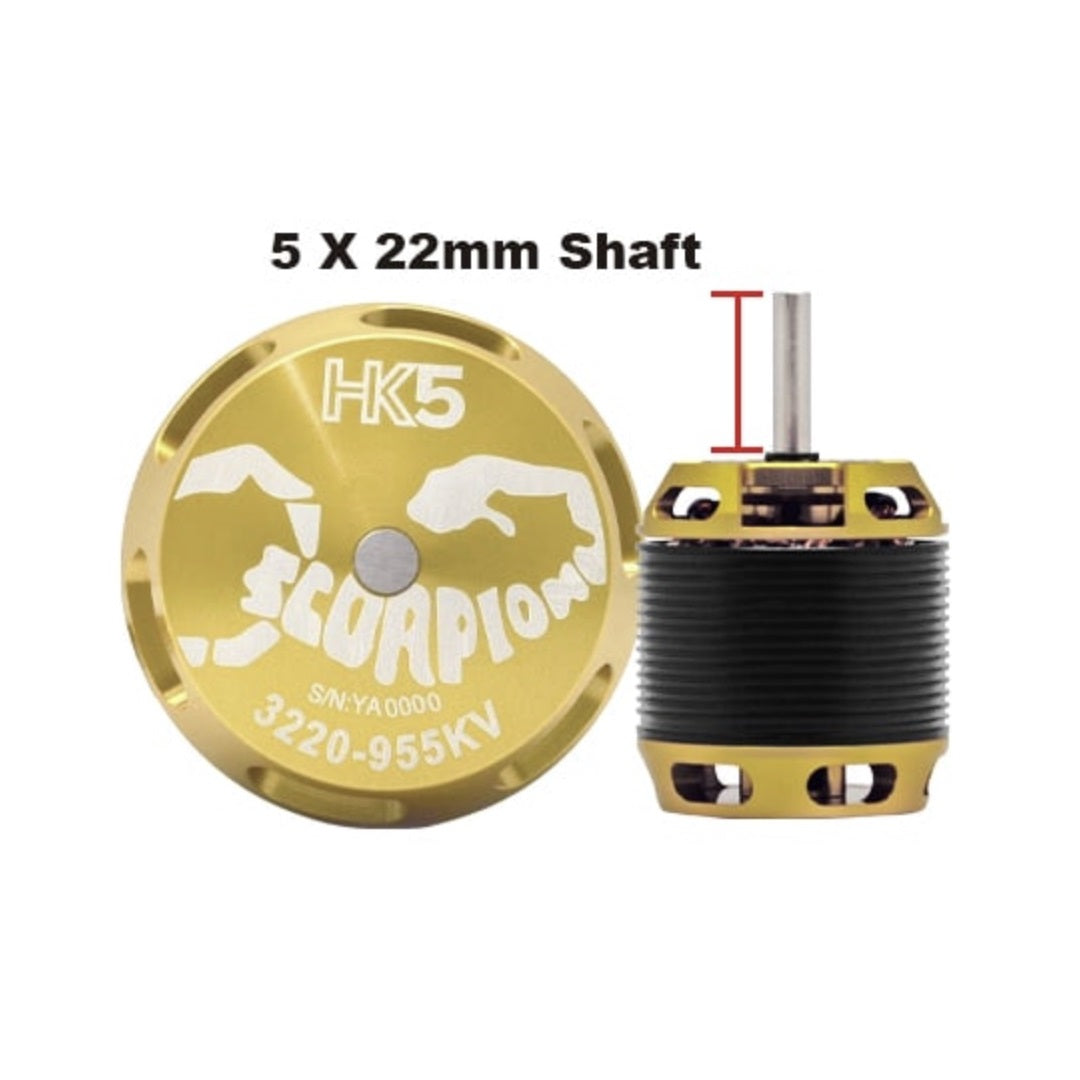

External Shaft Dimensions 4.98mm x 22mm (0.235" x 1.26")

Continuous Current 65 Amps

Continuous Power 1500 Watts

Peak Current 90A (2 seconds)

Peak Power 2000 Watts (2 seconds)

Max Lipo Cell* 6s

Stator Diameter 32 mm (1.57 in)

Stator Thickness 20 mm (0.79 in)

No. of Stator Arms 12

No. of Stator Poles 10

Motor Wind 5+6 Turn Delta

Motor Wire 1.05mm

*Higher Cell Count possible with appropriate gear ratio adjustment

Included in the Box

1 x HK5-4020 BLDC Motor

3 x Female 4mm Connectors

3 x Heat Shrink

1 x Hardware / Accessory Pack

Additional Information

Vendor:	Scorpion Power Systems
SKU:	HK5-3220-955
Barcode:
Availability:	In Stock
Product Type:	Heli Motors
Weight:	1.0 lb
