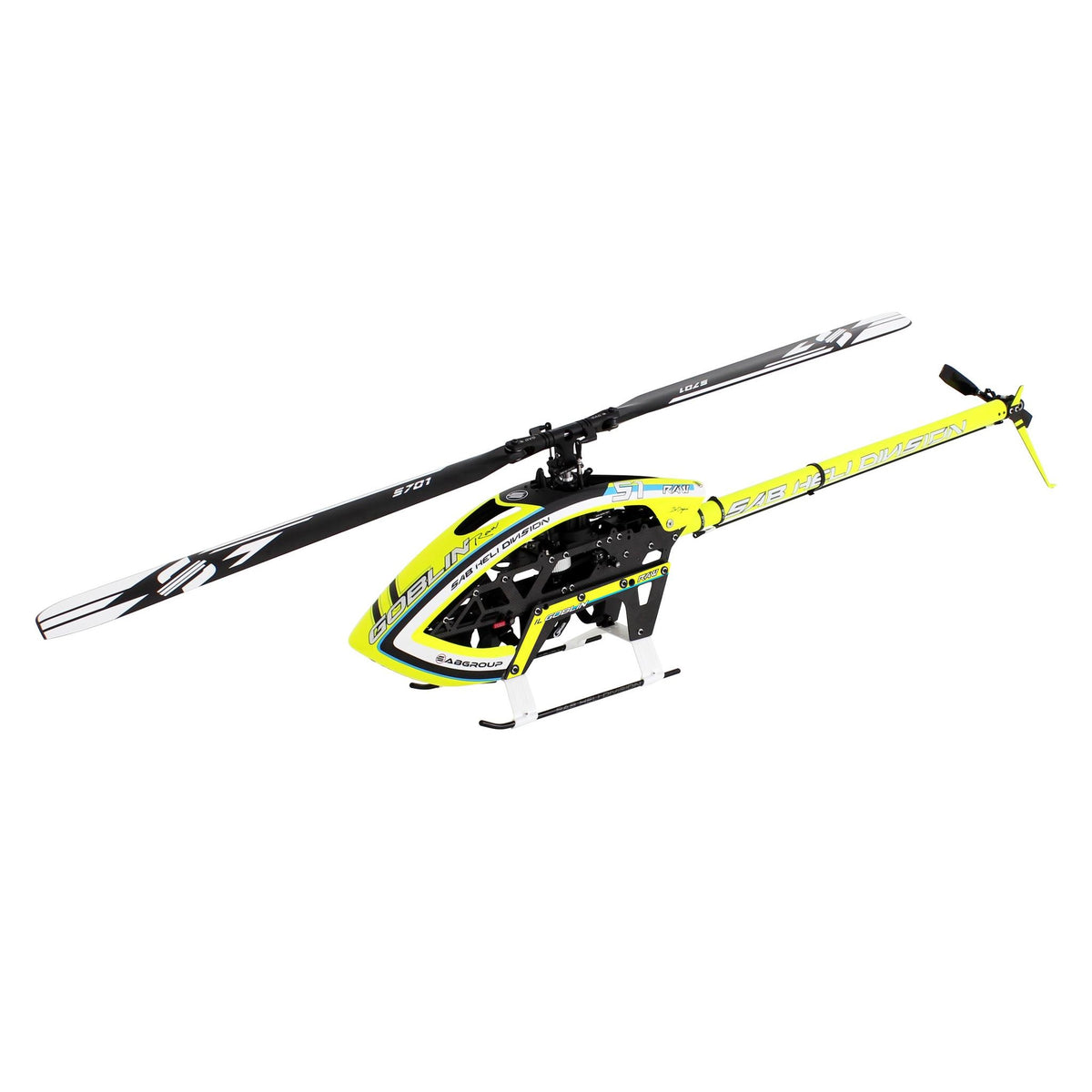

AIRFRAME weight: 2122 gr (no blades, no battery, no electronics)
Main rotor diameter: 1576 mm (with 700 mm main blades)
Main blade length: 650 to 730 mm
Tail rotor diameter: 292 mm (with 110 mm tail blades)
Tail blade length: 105 to 115 mm
Cyclic Servos: Standard size 40 mm
Tail Servo: Standard size 40 mm
Main Rotor Ratio: 11.8 to 8.8 (21T included: 10.1:1)
Tail Rotor Ratio: 5.1-4.9:1 (26T included: 4.9:1)
Main shaft: 15 mm, Tail shaft: 8 mm
Aluminum tail boom
Typical motor: 12S, 480/560 KV
Battery room: 50x60x300 mm
• 21T motor pulley (other pulley sizes available).
• 1 battery tray with straps.
• S701 (700 mm main blades)
• S105 (105 mm tail blades)
The main shaft diameter has been increased to 15 mm for increased rigidity.
New design that features new blade grip arms with an improved locking system.
New design mixing arms, easy to assemble with out any play.
Self-Centering Titanium washers that ensure automatic centering for greater precision.
New design plastic ball linkage which is stronger and last longer, make manternance time less
New Swashplate geometry maximize the precision.
The new gearbox is lighter than previous models.
New helical gears for increased durability and strength.
A fast disassembly servo mount that allows for easier and faster maintenance on the servos.
New One-Way system, redesigned for optimal performance.
3rd bearing support includes in the kit
Includes a belt tensioning system with an indicator for optimal control.
With new tail push rod design, there is no more the need to CA/Epoxy them at all, just locktie and go fly.
8mm tail shaft
8 mm Tail shaft with 8x16x5 bearings that contribute to increase rigidity and a smoother tail.
The shaft and the Hub are made from a single part in order to have maximum precision.
New battery locking system make secure battery super easy.
| Vendor: | SAB Heli Division |
| SKU: | SG763 |
| Barcode: | 8935254821199 |
| Availability: | In Stock |
| Product Type: | Helicopter Kit |
| Weight: | 23.0 lb |
