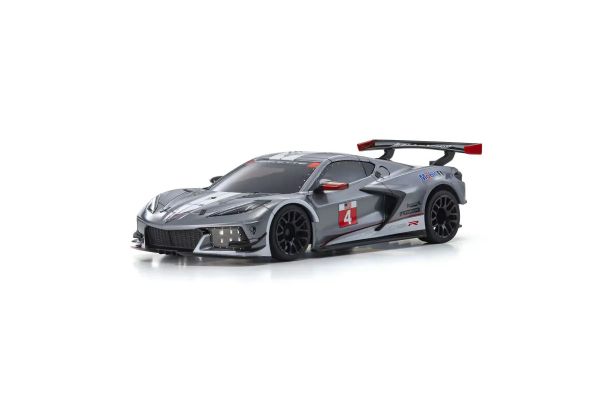

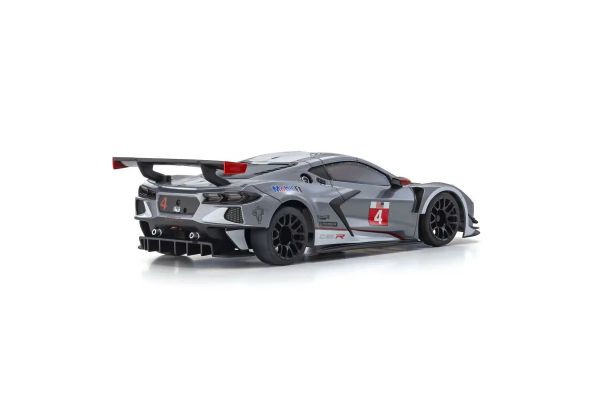

Kyosho MINI-Z RWD MR-04 readyset CHEVROLET® CORVETTE® C8.R Gunmetal / White 32356GMW
Latest high-performance MR-04 chassis
Now the standard MINI-Z RWD model!
●Authentic EP (electric) small scale R/C car that can be driven indoors.
●Readyset package includes fully assembled chassis, body and transmitter.

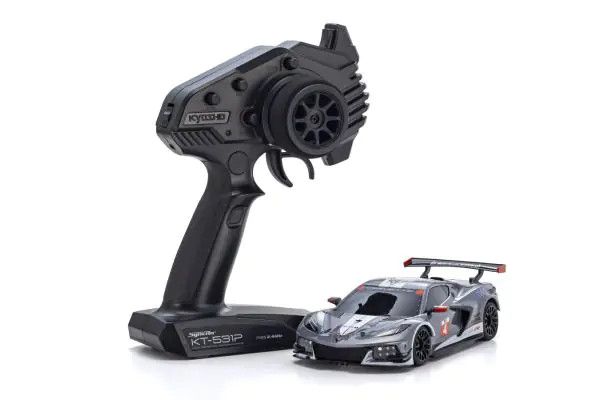

●Includes ultra reliable multi-function Syncro KT-531P transmitter.
●Features the MR-04 chassis, a major evolution from the previous MR-03 model.
●Includes high-quality painted body with decals applied, finished to display model standard.
●Compatible with all bodies for the MINI-Z racer series. *Motor case and differential gear assembly suitable for the body are required separately.
●Geared differential (gear diff) delivers smooth cornering.
●Full ball bearing specifications
●Can be fitted with an optional gyro unit (MZW711) for even easier control. Gyro sensitivity can be adjusted using the volume on the chassis.
●Compatible with wide range of MINI-Z Racer optional parts so you can enjoy tuning and enhancing your model.
America’s Chevrolet based this racing model on its high-performance road car. With a midship mounted 5.5 liter V8 engine producing 500 horsepower, reduced weight and aero parts, the racing version delivered performance far in excess of the commercial road model.

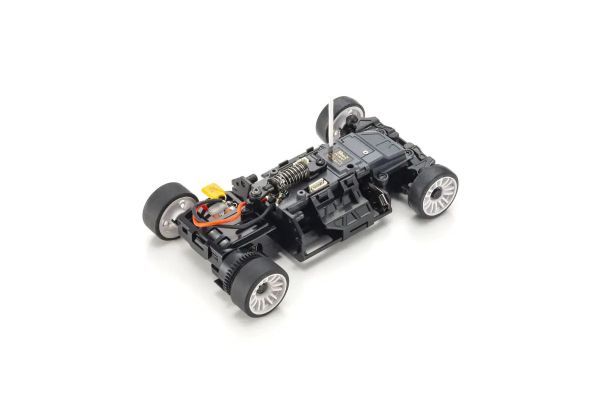

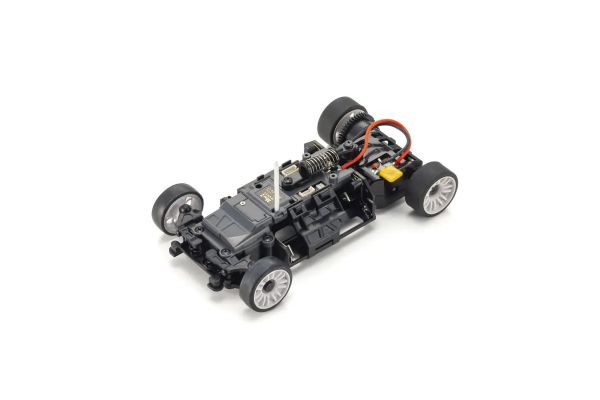

While retaining the best aspects of the MR-03, the lower center of gravity of the new MR-04 delivers significant performance improvements. The easier control of the MR-04 makes it an ideal introduction to R/C cars.
New front knuckles with integrated kingpins reduce scrub by 1.5mm on each side compared to the MR-03, realizing sharper and more linear control. The change to 3mm inner diameter ball bearings also reduces rotational resistance.
Front suspension dynamically aligns the camber angle with movement of the upper arm to maintain optimal tire contact during cornering. Revised caster angle also delivers improved steering response.
The car is powered by four AAA alkaline or rechargeable nickel-metal hydride batteries. The batteries are mounted lower than the MR-03, lowering the center of gravity of the entire chassis to deliver improved cornering stability and straight-line handling.
The rear suspension uses a coil spring damper to cushion shocks from the road surface and improve driving stability. It can also be upgraded to an optional oil-filled shock absorber.
Flexibility of the T-bar rear suspension plate that holds the entire rear pod, including the motor and rear axle, produces excellent suspension effect. Optional parts are also available in FRP and carbon.
All axles are equipped with low rotational resistance ball bearings as standard. The same size ball bearings are used for both front and rear for spare parts efficiency.
When changing from the stock body, a parts set is included to change the front tread (vehicle width) to match the replacement body to be installed if needed. Rear tread can be changed by changing the wheel offset.
Technical Data
■Length 173.0mm
■Width 78.0mm
■Height 45.0mm
■Chassis MR-04W-MM
■Wheelbase 98.0mm （LL）
■Tread F:67.5mm R:65.0mm
■Front Wheel Offset Narrow +3.0mm
■Rear Wheel Offset Wide +3.0mm
■Weight 169g
■R/C System Syncro KT-531P
Kit Content
●Factory assembled chassis
●Pre-painted body, complete with markings
●2.4GHz Perfex KT-531P 2.4GHz transmitter
●Front tread adjustment parts set
●Pinion gears 6T, 7T, 8T, 9T
●Spare nuts
●Wheel wrench
●Pinion gear tool
●Tires, wheels
Requirement to Run
●AAA-size alkaline batteries x 4 for chassis.
●AAA-size alkaline batteries x 4 or Ni-MH batteries x 4 for transmitter
