KST A12-T 12mm Digital Servo - Torque

Technical Specification:

Rated Voltage

DC7.4V

Voltage Range

DC6.0V-8.4V

Torque

1.6N.m@6.0V

1.8N.m@7.4V

2.0N.m@8.4V

Speed

0.15sec/60°@6.0V

0.13sec/60°@7.4V

0.12sec/60°@8.4V

Working Frequency

1520us/333Hz

Default Travel Angle

±60° = 120° Total

Temperature Range

-10℃……+60℃

Soft Start

Yes

Programable

Yes

Case Material

Aluminum Alloy

Motor Type

7 Phases Coreless DC Motor

Gear Set Material

Hardened Steel

Position Sensor

Contactless(Magnetic sensor)

Ball Bearing

2BB

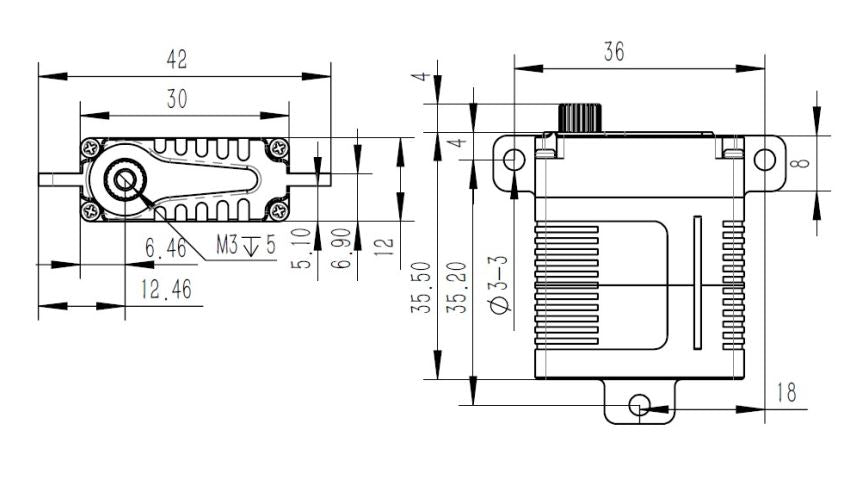

Case Dimensions

30mm*12mm*35.5mm±0.2m

Weight

32g±10%
