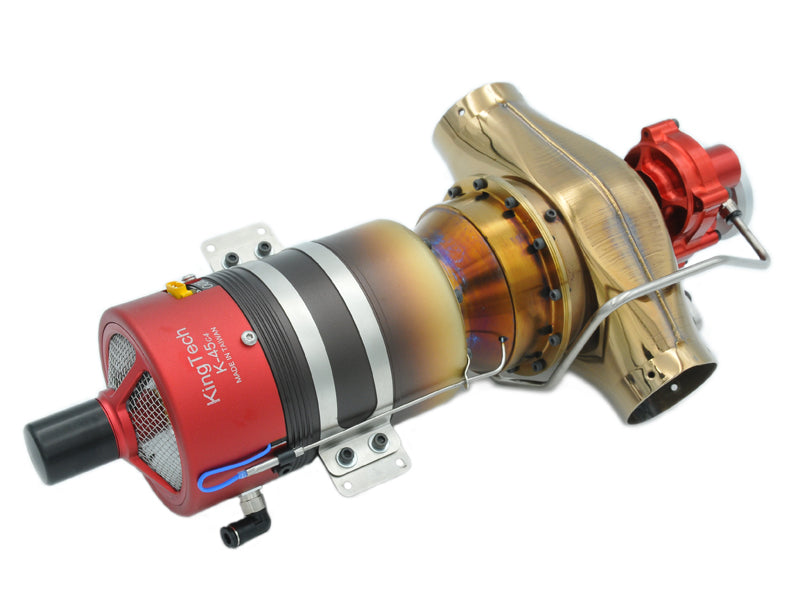

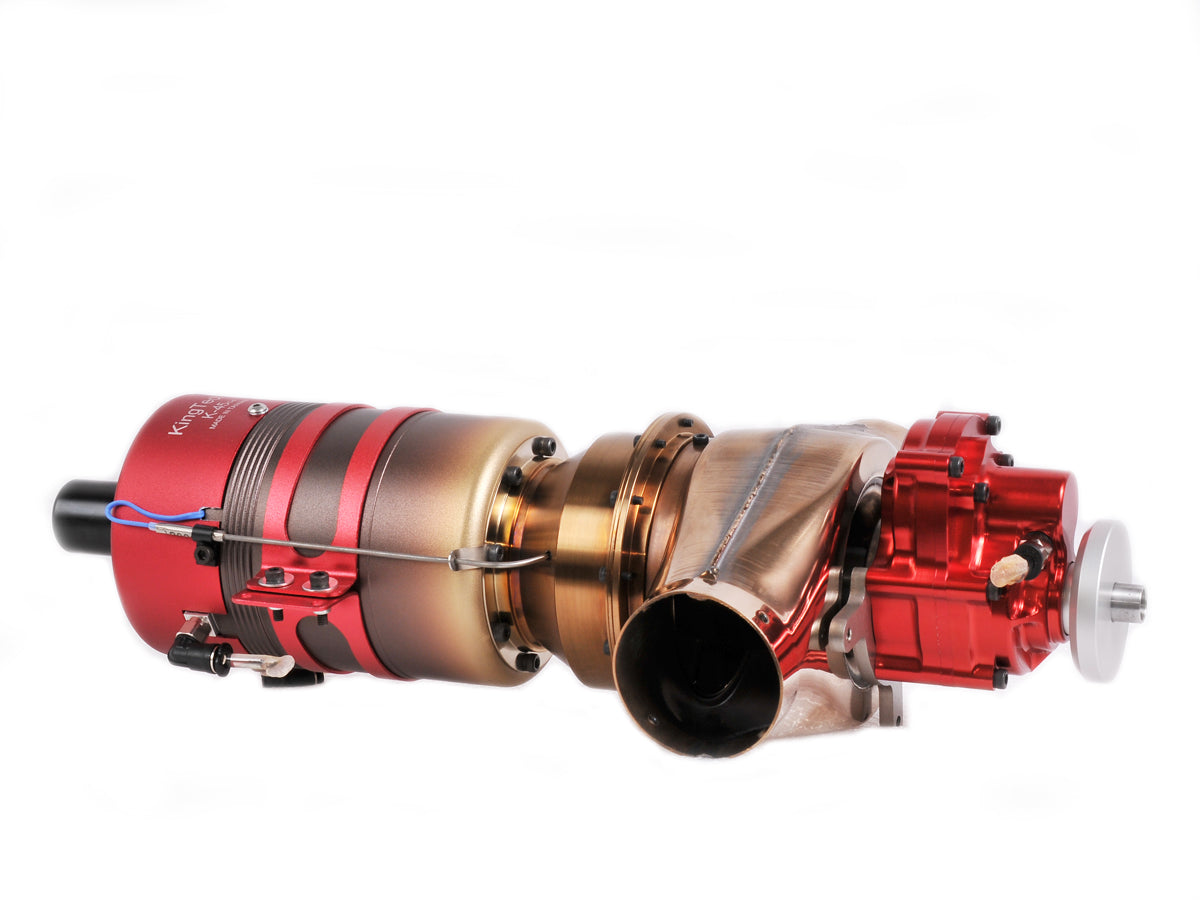

KingTech K-45TPG4+

. KingTech G4 utilizes SBus data transmission.

• Engine/ECU integration, all operating parameters including total run time are all recorded into the engine.
• The smaller and lighter external Data Relay Module (DRM) is responsible for all data, signal and power transmission.
• Pump: digital sbus brushless pump
• A micro USB connector is present for a future connectivity of wireless mobile apps.
• The G4 features a brushless starter motor for reliability and durability, built-in FOD screen is also integrated.
• After a run cycle and receiver switched off, GSU will remain on only until cool down completes.

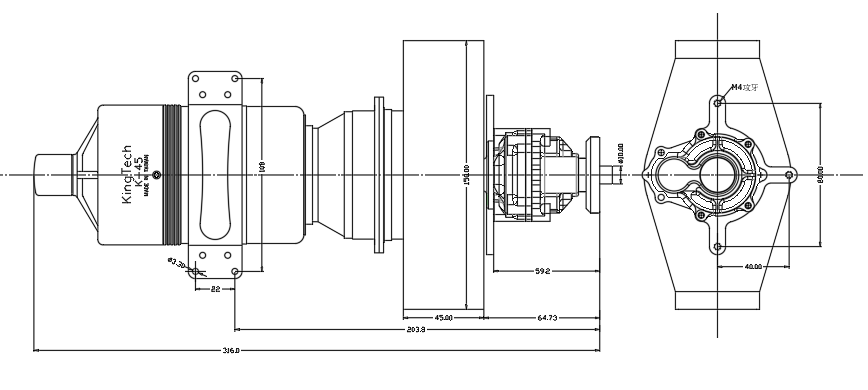

K-45TPG4 SPECIFICATIONS

Length: 316mm( 12.44" )
Weight: 1800g ( 3 lb. 15.5 oz )
Max. RPM: up to 170000
Power: 5.2KW EGT: 700°C max ( 1292°F max)
Fuel consumption: 180 g / min ( 8.46 oz / min )
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Maintenance cycle: 25 hr US$550
