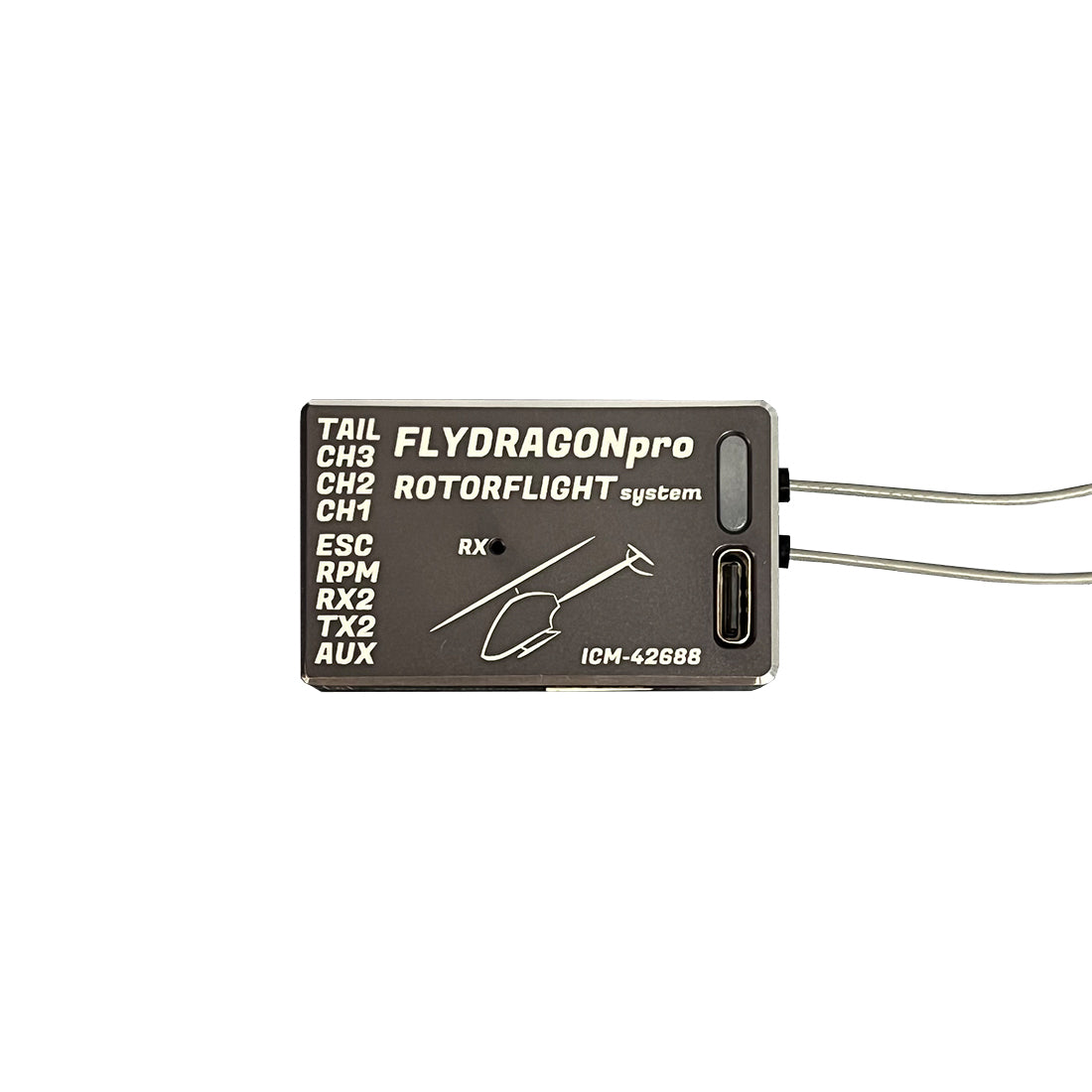

FlyDragonPRO-RotorFlight Flybarless System with Built-in ELRS Receiver - Grey

RotorFlight Website (for Configurator and Tutorial): https://www.rotorflight.org/

Package Includes:

• FlyDragon PRO RotorFlight Unit * 1pc
• Connectors for UART ports * 1 set
• Gyro Double Side Mount Tape * 2pcs

Specifications:

• MCU:  STM32F722RET6 [216MHz]
• IMU:  ICM-42688-P
• BARO:  SPLO6-001
• BLACKBOX:  W25N01GVZEIG [128MB]
• ADC:  BAT [0-62V]  BEC [0-30V]  BUS [0-8V]
• RX: ExpressLRS [2.4GHz]
• LED: WS2812B
• BUZZER: 5V ACTIVE
• DC: 5-18V [IN]   5V@2A [OUT]   3.3V@0.5A [OUT]
• Dimentions: 45x27x14.5mm
• Weight: 27.5g
• USB：Type-C
• Serial ports: UART2, UART3, UART5
• External receivers: CRSF, S.BUS, F.PORT, F.BUS, GHOST, SUMD, SUMH, IBUS, XBUS, XBUS/RJ01, EXBUS, PPM, MSP, DSM (with its own BEC step-down 3.3V power module) and updating
• ESC protocols: PWM, ONESHOT125, ONESHOT42, MULTISHOT, BRUSHED, DSHOT150, DSHOT300, DSHOT600, PROSHOT

Disclaimer:

Rotorflight is open-sourced software, no warranty or implied as to the quality and reliability of this firmware, it is supported by the users themselves as a community.Rotorflight is under GPLv3 license. If handled incorrectly, RC models can cause serious injury or even death, and you are solely responsible for your model if you decide to use Rotorflight firmware. Any injury or damage caused by the use of Rotorflight firmware is not the responsibility of the authors of Rotorflight, the designers of RF gyroscopes, or the distributors, so please use with caution.
