Scorpion HK5-4525-535KV (6 x 36mm shaft) Helicopter Motor
SKU : HK5_4525_535_6_36
$395.99
(
2
Reviews
)
- Electronic ignition delivers smooth idle, easy starting and powerful throttle transition, spiral wire wrap eliminates interference
- Muffler designed for optimized power delivery
- Enlarged crankshaft ball bearings
- Two petal reed valve induction system
- Airplane specific carburetor with manual choke
- Lightweight piston for fast acceleration, excellent compression and low vibration
Product Detail

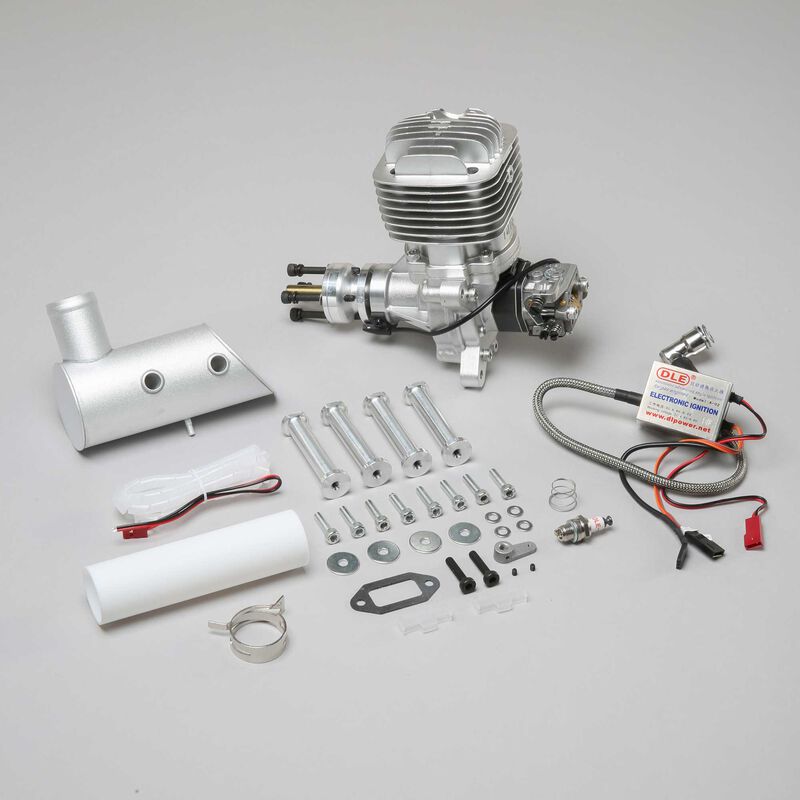

In The Box
- (1) DLE-61 Gasoline Engine with Electronic Ignition
- (1) NGK CM6 Spark Plug
- (1) Muffler
- (4) 2.7" (68mm) Standoffs
- (1) Product manua
Needed to Complete
- 87 octane gasoline
- 2-cycle oil, mix ratio for this engine is 30 parts gas to one part oil and must be followed exactly for warranty consideration and optimum performance
- 4.8 - 6V NiMH/NiCd, or 6.6V LiFe or 7.4V LiPo battery for ignition (separate receiver style pack can be used)
- **NOTE, 1st version ignition is marked 'A-01' on the label and requires a regulator if using 2S LiPo/LiFe battery If ignition module is the A-02 model it has a built-in voltage regulator. Model A-02 designation is located above the word "Ignition" on top of the case**
- Propeller: 22x10, 23x8, 23x10, 24x8
- Field Equipment
More power at lighter weight
Innovation is excellence; so, when DLE added innovations like magnesium alloy crankcases, improved crankshaft bearings, and a better piston/cylinder fit to their engines, serious R/C pilots got very excited. The DLE-61 weighs four pounds and cranks out over six horsepower from a durable and long-lasting engine. Extras like an airplane-specific carburetor, muffler, standoffs and electronic ignition boost performance even further. It's a solid 60cc engine at the best price you’ll find.
- Efficient, light design for high power-to-weight ratio
- Light piston for fast acceleration, excellent compression and low vibration
- CNC-machined parts for high performance and long life
- Enlarged crankshaft bearings
- Two petal reed valve carburetor
- Muffler included for optimized power
- Spark plugs
- Spiral wire wrap
Electronic ignition delivers ultra-smooth idle, easy starting and awesome throttle transition.
The DLE-61 includes a muffler, electronic ignition gear, spark plugs, spiral wire wrap and connector safety clips.
Product Specifications
| Manufacturer # | 667300800619 |
| Cylinders | Single |
| Product Width | 3.54" (90mm) between center of upper mounting holes |
| Total Weight | 7.8 lbs (3532 g) |
| Engine (Only) Weight | 3.02 lbs (1370g) |
| Muffler Type | 2-piece aluminum |
| Displacement | 3.7 cu in (61.0cc) |
| Oil Type & Content | 30:1 2-cycle oil mixture |
| Product Length | 6.8" (172mm) |
| Bore | 1.85" (47mm) |
| Crankshaft Type | Threaded |
| Power Type | Gas |
| Plug Type | NGK CM6 |
| Stroke | .98" (35mm) |
| Product Height | 4.96" (126mm) from center of crankshaft to top of cylinder head |
| Prop Range | 22 x 10 - 24 x 8 |
| Starter Type | Hand Held Starter |
| Ignition Weight | 3.9 oz (110g) |
| Muffler Weight | 3.9 oz (110 g) |
| Vendor: | DLE Engines |
| SKU: | DLEG0061 |
| Barcode: | 667300800619 |
| Availability: | Out Of Stock |
| Product Type: | Plane Engines |
| Weight: | 7.5 lb |
