Diatone Mamba TOKA 2306.5 1650KV Racing Motor

Vendor: Diatone

|

SKU: JH60863

Availability: In Stock

Earn 14 Reward Points when you buy this item.

Price Match Guarantee

$14.99; ~~$23.99~~; $14.99
Unit price: per

The order quantity exceeds the stock!

Diatone Mamba TOKA 2306.5 1650KV Racing Motor - HeliDirect

Diatone Mamba TOKA 2306.5 1650KV Racing Motor

~~$23.99~~ $14.99

Quantity:

Diatone Mamba TOKA 2306.5 1650KV Racing Motor

~~$23.99~~ $14.99

Related Products

View Axisflying 5" Brushless Top Quality FPV Motor AF236-1960KV For Arco / Flow / Bando Freestyle

Axisflying 5" Brushless Top Quality FPV Motor AF236-1960KV For Arco / Flow / Bando Freestyle

SKU : AXF-AF236

$25.90 | $16.59

No Review

View Axisflying 5" Brushless Top Quality FPV Motor AF227-1960KV For Juicy / Sbang / Bando Freestyle

Axisflying 5" Brushless Top Quality FPV Motor AF227-1960KV For Juicy / Sbang / Bando Freestyle

SKU : AXF-AF227

$25.90 | $16.59

No Review

View Axisflying Digital Coaxial Cable For DJI O3 Air Unit (17cm)

Axisflying Digital Coaxial Cable For DJI O3 Air Unit (17cm)

SKU : AXF-O3CABLE-17CM

$15.90 | $8.99

No Review

View Axisflying Digital Coaxial Cable For DJI O3 Air Unit (20cm)

Axisflying Digital Coaxial Cable For DJI O3 Air Unit (20cm)

SKU : AXF-O3CABLE-20CM

$15.90 | $8.99

No Review

View TBS Ethix Mr Steele Stout Motor V5 Blue

TBS Ethix Mr Steele Stout Motor V5 Blue

SKU : TBS-ETHIXV5-B

$27.95 | $19.99

No Review

View T-Motor F60 PRO V 2207.5-1950KV Brushless Racing Motor For 5 Inch FPV Drones

T-Motor F60 PRO V 2207.5-1950KV Brushless Racing Motor For 5 Inch FPV Drones

SKU : F60PROV-1950

$26.90 | $21.52

No Review

View XNOVA RM2206 Shaft (4pcs/bag)

XNOVA RM2206 Shaft (4pcs/bag)

SKU : XN-RM2206S

$6.00 | $0.99

No Review

View TBS Triumph Pro 5.8GHZ Antenna (SMA)

TBS Triumph Pro 5.8GHZ Antenna (SMA)

SKU : TBS-TRIUMP-SMA

$19.95 | $14.49

( 8 Reviews )

Description
Additional Information

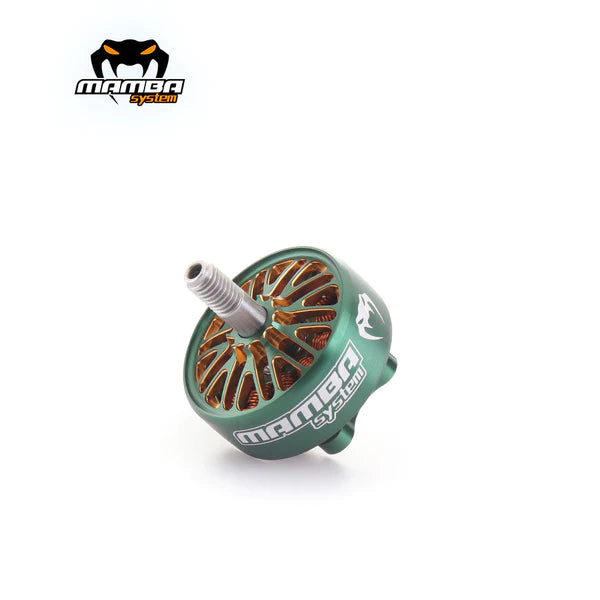

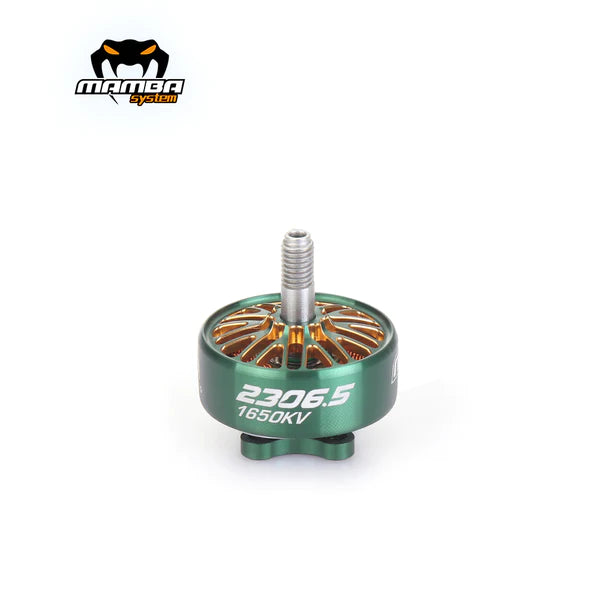

MAMBA TOKA 2306.5 1650KV MOTOR

Motor KV：1650KV
Overall Dimension:Φ29.8×33.2mm
prop mounting shaft diameter:5mm
Installation hole position:16×16mm，M3
Prop: 6inch
Bearing：681ZZ 9*4*4mm
Shaft Diameter:4.0mm
Lead Wire Size：20AWG×190mm
slots/poles:12N14P
Magnet Wire: 240℃ Enameled Wire
Magnet： N52H
Stator Diamter：23mm
Stator Height:6.5mm
Rated Voltage:4~6S (16.8V~25.2V)
Peak Current: 40.5A
ladle Current：0.7A
Maximum Power: 970.05W
Internal Resistance：78mΩ

Additional Information

Vendor:	Diatone
SKU:	JH60863
Barcode:	769923272689
Availability:	In Stock
Product Type:	FPV Electronics
Weight:	0.3 lb
