Align 800MX Brushless Motor (570KV/4530)

Vendor: Align

|

SKU: HML80M14T

Availability: Out Of Stock

Earn 216 Reward Points when you buy this item.

Price Match Guarantee

$216.99; $216.99
Unit price: per

The order quantity exceeds the stock!

Align 800MX Brushless Motor (570KV/4530) - HeliDirect

Align 800MX Brushless Motor (570KV/4530)

$216.99

Quantity:

Align 800MX Brushless Motor (570KV/4530)

$216.99

Related Products

Description
Additional Information

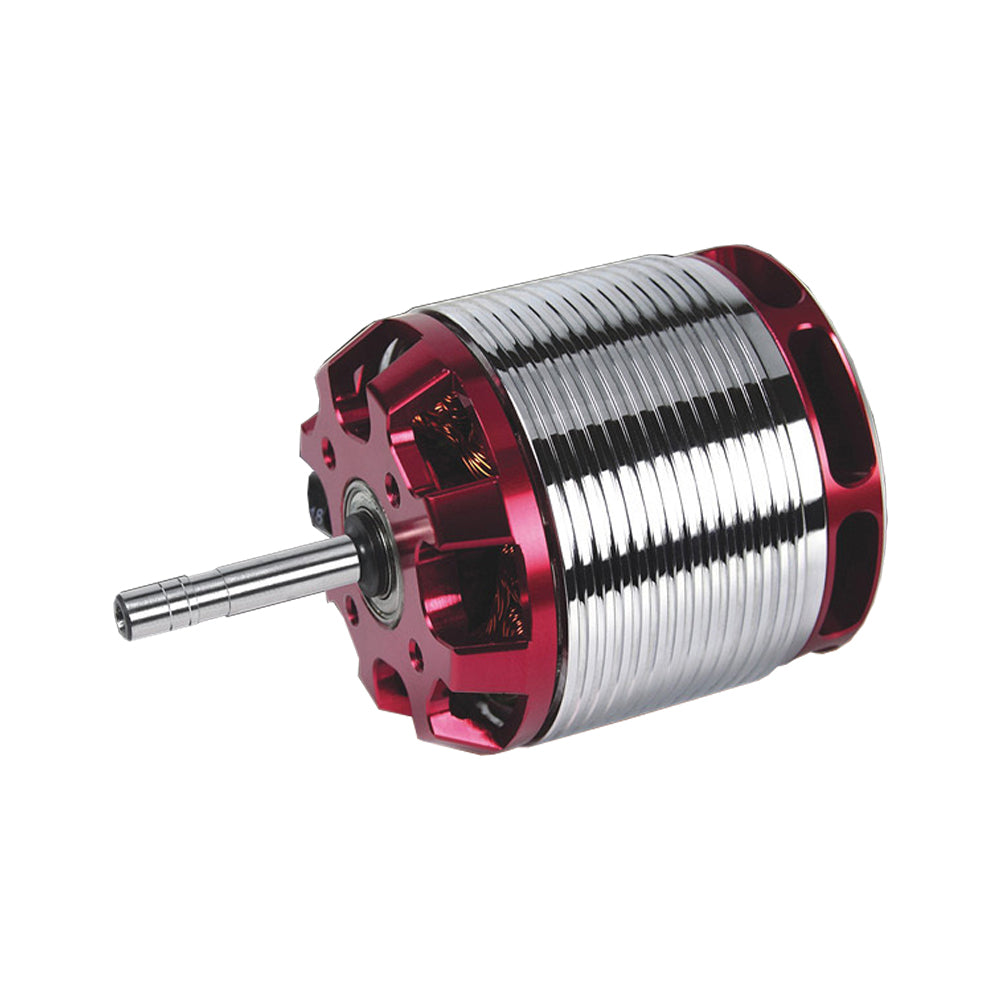

Product:

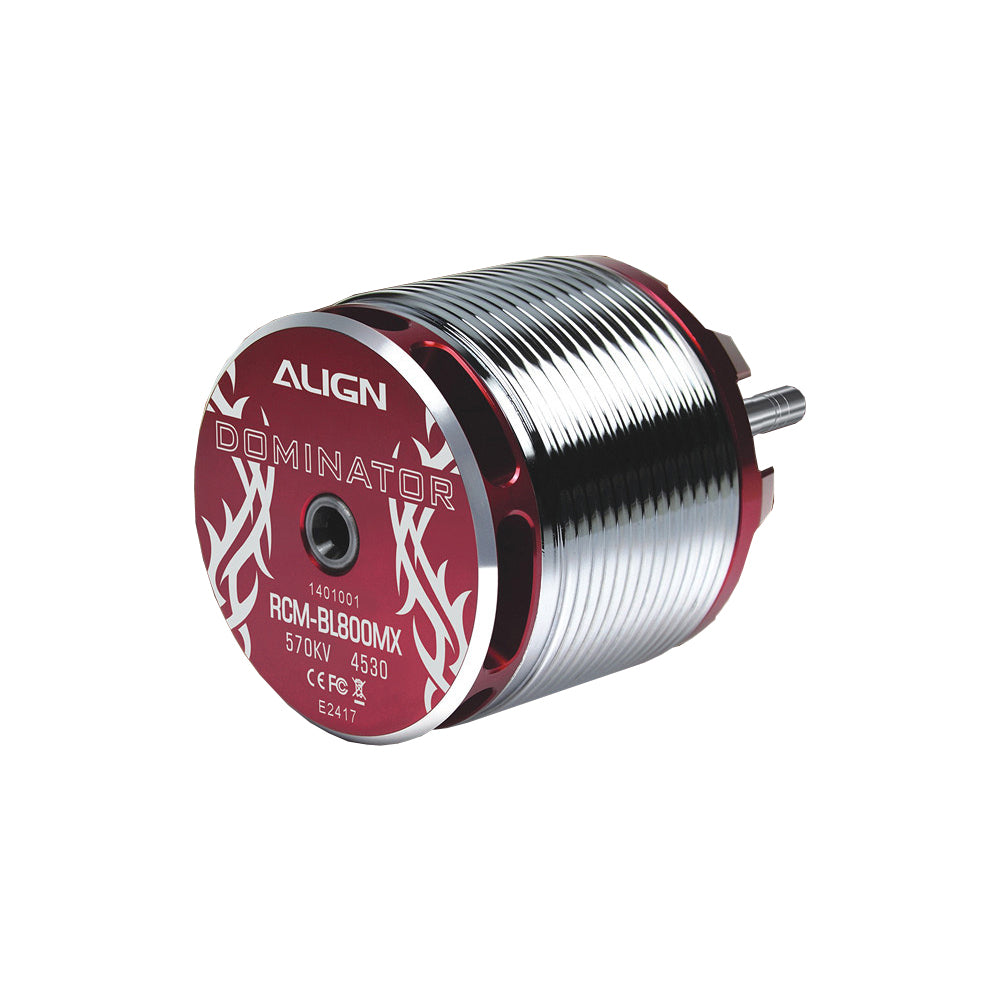

Product:

Specification Drawing:

Wiring Schematic Drawing:

Instructions:	Specification:
●800MX(570KV) motor incorporates radial fan in its end bell, creating powerful airflow to dissipate heat. Tweaks to motor design and reduction in weight not only contributes to dramatic power increase, the high efficiency cooling system enables cooler operating temperature during and after flights when compared to motor of previous generation. ●The 800MX(570KV) motor armature had a special balance adjust to improve the serious shaking problem that other tiny motors have. ●Maintenance free, high torque, high efficiency, stable and quiet. ●High-speed ball bearings, powerful magnetic outrunner rotor. ●Suitable for TB70. ●Manual Download： Effective immediately, the Align MX series motors have 40% off Lifetime service where your old motor can be exchanged for 40% off the retail pricing of a new equal spec motor. If needed, please contact to Align authorized distributors .	●Input voltage: 12S ●Max continuous current: 115A/230A(5sec) ●Max output power: 5100W/10200W(2sec) ●KV value: 570KV ●Stator Dimension:4530 ●Stator Arms: 12 ●Magnet Poles: 10 ●Dimension: 6x56.7x92.5mm ●Weight: 525g
	Accessories:
	●Countersunk Hex Socket Screw x 4(M4X8mm) ●Φ5.5mm gilt terminal x 3

Additional Information

Vendor:	Align
SKU:	HML80M14T
Barcode:	4713413738250
Availability:	Out Of Stock
Product Type:	Heli Motors
Weight:	2.0 lb
